3B SCIENTIFIC

®

PHYSICS



1

Digital Course Microscope Model 100, LED with built-in Camera

W30605

Instruction Manual

10/07 ALF


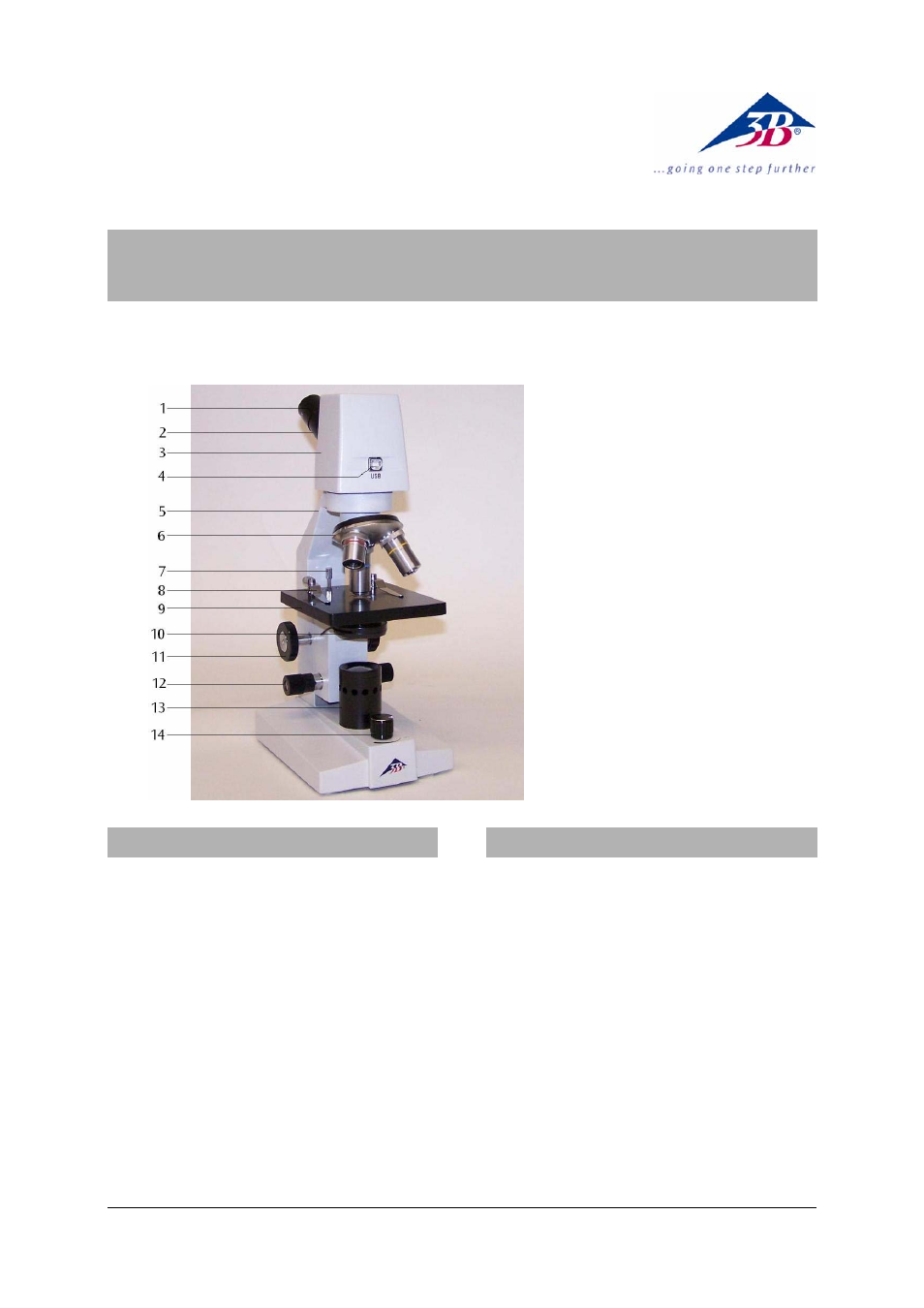

1 Eyepiece
2 Tube
3 Camera
4 USB

connection

5 Stand
6 Revolver with objectives
7 Lock screw for object stage
8 Specimen

clips

9 Object

stage

10 Condenser with iris diaphragm

and filter holder

11 Adjustment knob for coarse

focusing

12 Adjustment knob for fine

focusing

13 Lamp housing
14 Switch with illumination con-

trol



1. Safety notes

For power supply use only electrical sockets
with ground contact.

Always unplug the mains plug before cleaning
or maintenance.

Be careful not to spill any liquids on the mic-
roscope.

Do not wipe the optics with your hands.

Do not disassemble objective or eyepieces to
attempt to clean them.

Do not mishandle or impose unnecessary force
on the microscope.

Do not clean the unit with volatile solvents or
abrasive cleaners.

Do not attempt to service the microscope your-
self.

2. Description, technical data

The digital course microscope with built-in camera
allows two-dimensional viewing of objects (thin
sections of plant or animal specimen) in 40x to
400x magnification. It also allows photographic or
video-recording documentation of images.

The microscope W30605-115 is for operation with a
mains voltage of 115 V (±10%), and the W30605-
230 unit is for operation with 230 V (±10%).

As well as real-time video playback, single images,
sequences and video recording, the Photolib soft-
ware provides a wide range of functions for the
presentation, processing and evaluation of images.

The installation CD contains a detailed description
of the software in English, and additional advice
and assistance is available in the help files of the
software.
