4.5 Dependency of the induced voltage on the
number of turns and the speed of the induc-
tion loop
•
Set up the experiment as specified in 4.4.
•
Connect the multimeter initially to the tap
socket for 800 turns and measure the induced
voltage.
•
Repeat the experiment at the same applied
voltage with 1600 and 2400 turns, and measure
the corresponding induced voltages.
•
Compare the induced voltages.
The induced voltage is proportional to the number
of turns.
•
Connect the multimeter to the tap socket for
2400 turns.
•
Set the applied voltage to 4 V and measure the
induced voltage. Observe the speed of the flat
coil.
•
Repeat the experiment at voltages of 6 V, 8 V
and 10 V.
•
Compare the induced voltages.
The induced voltage is proportional to the speed of
the coil.
800
1600
2400

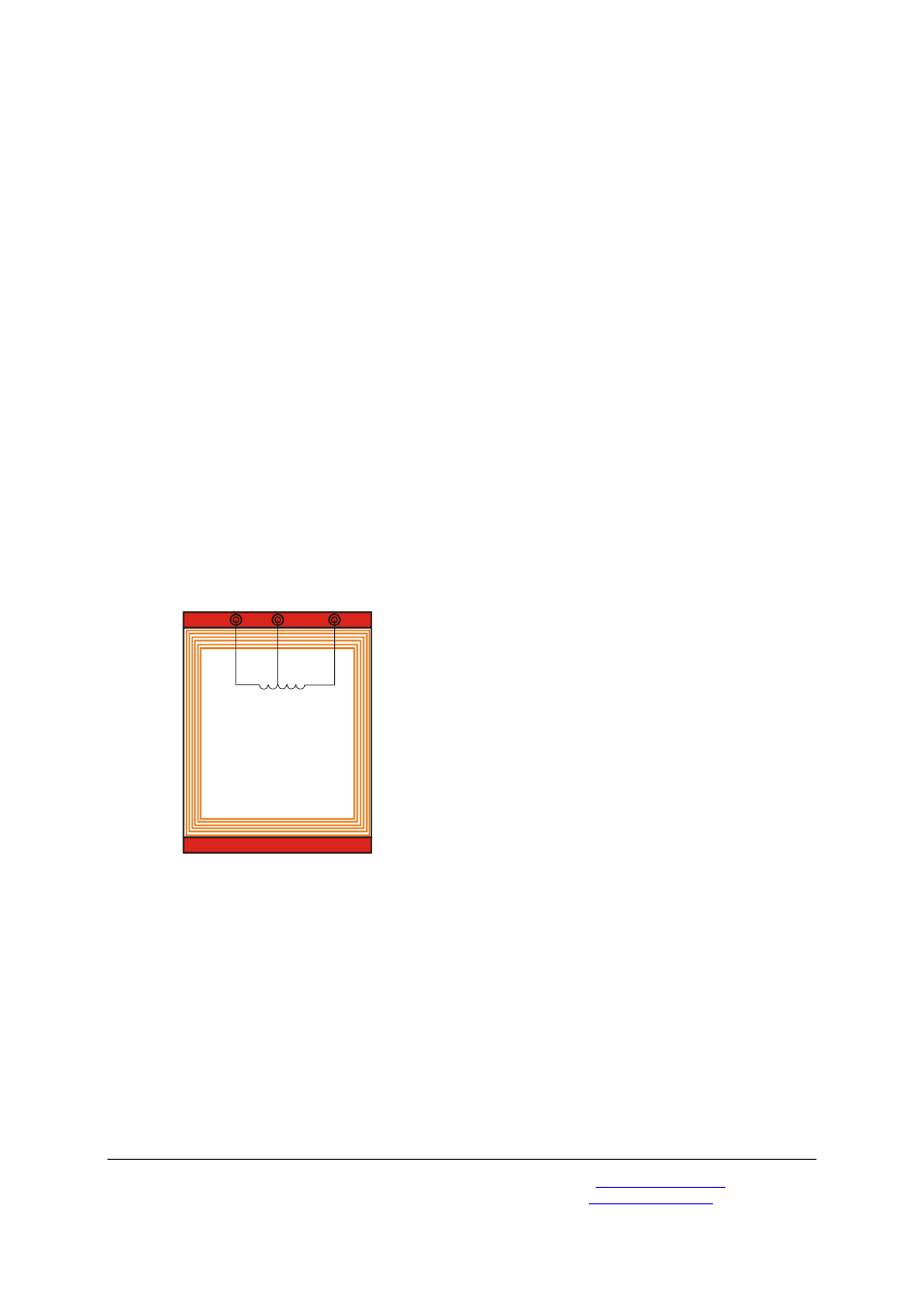

Fig. 4 Coil taps
