2. Contents
1 SW base plate
2 Stand rods with internal and external thread
2 Stand rods with external thread
2 SW double clamps
1 SW cross bar
3. Technical data
Base plate
Dimensions:
345 x 245 x 15 mm
Weight: 2.1 kg
Material: Steel sheet, 2 mm,
coated
Threaded sockets: 3
Stand rods
Dimensions:
400 mm x 10 mm diam.
Weight: 0.25 kg each
Material: Stainless steel, non-
magnetic
Cross bar
Dimensions:
275 x 75 x 20 mm
Weight: 0.18 kg
Material: Stainless steel sheet,
2 mm
Double clamps
Dimensions:
60 x 20 x 20 mm
Weight: 0.064 kg each
Material: Aluminium, anodised
General data
Max. height of set-up: 780 mm
4. Operation
4.1 Set-up without sensors
The following additional equipment is necessary
in order to set up a coil spring pendulum:
1 Stand rod, 280 mm, 10 mm diam.
1012848
1 Coil spring, 1 weight
• Screw the stand rods with both external and
internal threads into the outer threaded so-
ckets of the base plate.
• Extend both rods by screwing rods with ex-
ternal thread only onto the ends of them.
• Attach double clamps near the top of both
stand rods and turn them to point inwards.
• Set up stand rod, 280 mm, 10 mm diam.
• Suspend a coil spring and weight from the top.

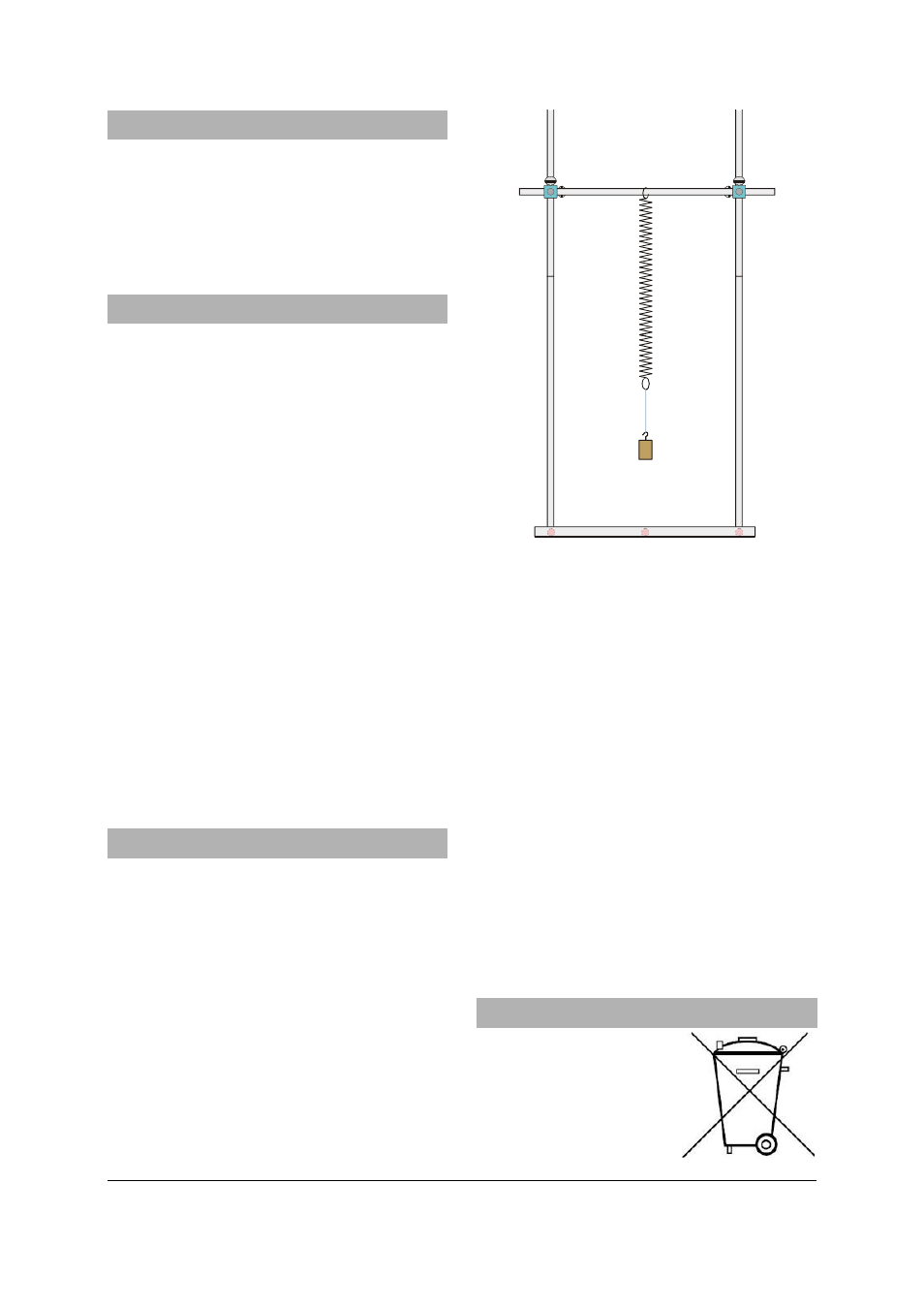

Fig 1 Set-up for coil spring pendulum without sensors
4.2 Set-up for mechanical pendulums with
sensors
The following additional equipment is necessary
in order to carry out the experiments:
1 SW stand equipment set
1012849
1 SW sensors set (@230V) 1012850
or
1 SW sensors set (@115V)
1012851
1 USB oscilloscope 2x 50 MHz 1017264
1 PC, operating system Win XP, Vista, Win 7
1 SW Wilberforce pendulum set
1012844
or
1 SW string pendulum set
1012854
or
1 SW physical pendulum set
1012853
Notes on assembly:
See instruction manuals for the pendulums
listed.
5. Disposal
• Packaging and compo-
nents should be dis-
posed of, where neces-
sary, at local recycling
centres.
