ZMODO ZMD-DT-SFN6 16CH H.264 Smart Security 960H DVR - Manual (Page 14)

14

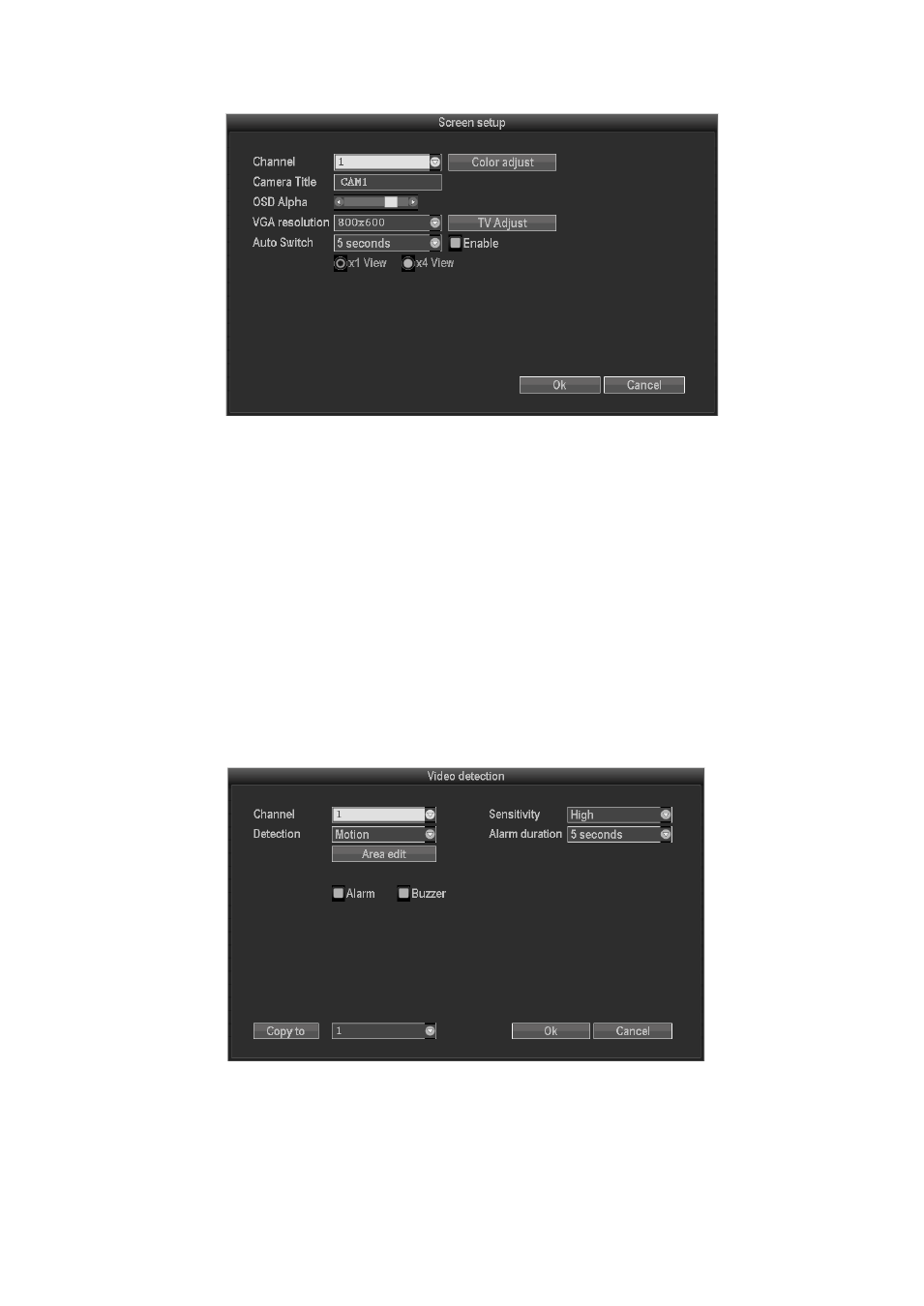

3.8.3.5 Screen setup
Select “screen setup” from “system setup” menu
Channel: chose the target channel by clicking select box.
Camera title: user can edit the channel title from the edit box. “☑” means display channel title,
“
□”means non-display.
OSD Alpha: user can adjusted the OSD menu transparency as needed.
OSD time: “☑”display system time，“
□” non- display;
Auto Switch: user can setup the time of auto switching for preview image, it switches in single screen or
4 Channels screen.
Start using: “☑”start using, “
□” stop using.
After the setup is completed, click '"OK " to save the changes and exit; click "cancel” to exit the setting.
3.8.3.6 Video detection
Select” video detection” from “system setup” menu:
Channel: chose the target channel by clicking select box
Sensitivity: chose the sensitivity level of motion detection.
Detection: select detection type: motion, video loss, and video cover.
