2.7
Single Phase Power Connections

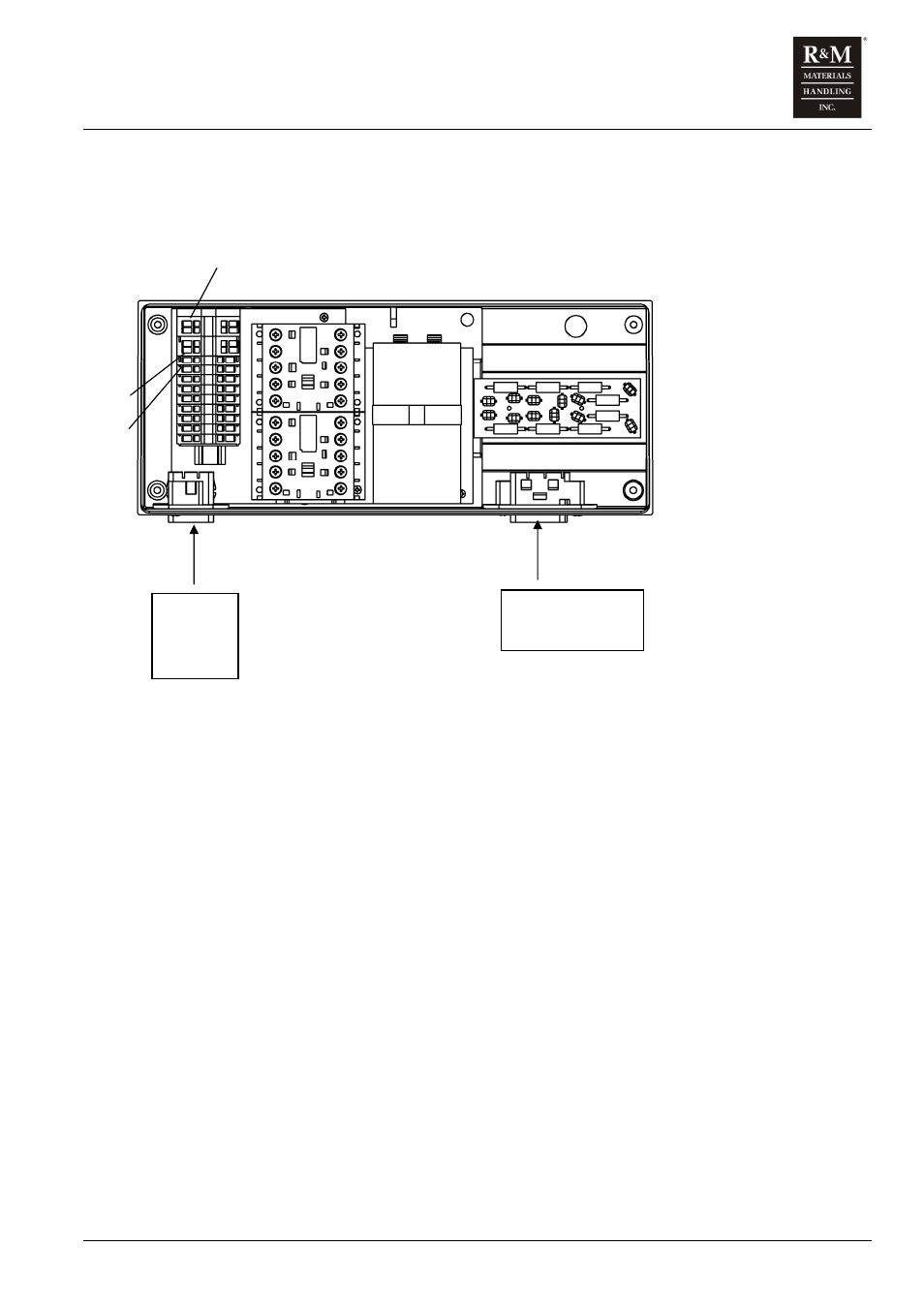

Figure 3. Single Phase Control Box Power Connections
1. Remove control box cover.
2. Insert power supply cable through power cable gland (Figure 3).
3. Connect power leads L1 and L2 to terminal strip (Figure 3).
4. Connect ground wire PE to terminal strip (Figure 3). Refer to wiring diagram.
5. Insure terminals are tight
6. Tighten cable gland or connector (Figure 3) to secure power cable.
7. Replace control box cover.
8. Attach pushbutton assembly to plug (Figure 3).
PE
L1
L2
POWER
CABLE
GLAND
PUSHBUTTON
PLUG
