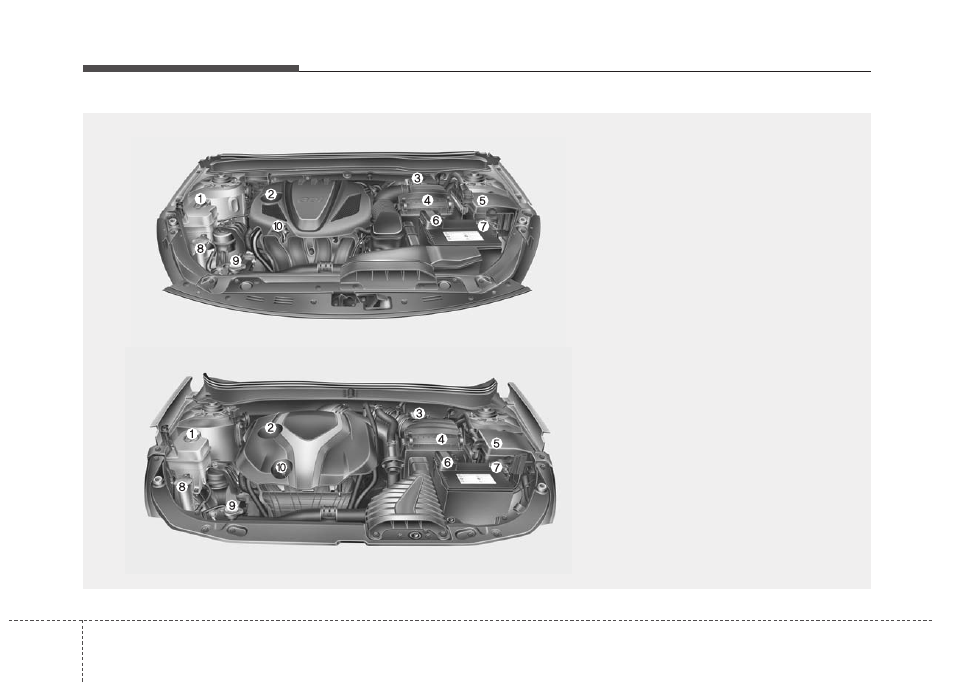

ENGINE COMPARTMENT
1. Engine coolant reservoir ...................7-18
2. Engine oil filler cap ...........................7-15
3. Brake/clutch* fluid reservoir ..............7-20
4. Air cleaner.........................................7-23
5. Fuse box ...........................................7-45
6. Positive battery terminal ...................7-28
7. Negative battery terminal..................7-28
8. Windshield washer fluid reservoir .....7-21
9. Radiator cap .....................................7-19
10. Engine oil dipstick ...........................7-15
* : if equipped
OTF070002/OYF071200N
* The actual engine room in the vehicle may differ from the illustration.
■ ■
2.4L Engine
■ ■ 2.0L Engine
