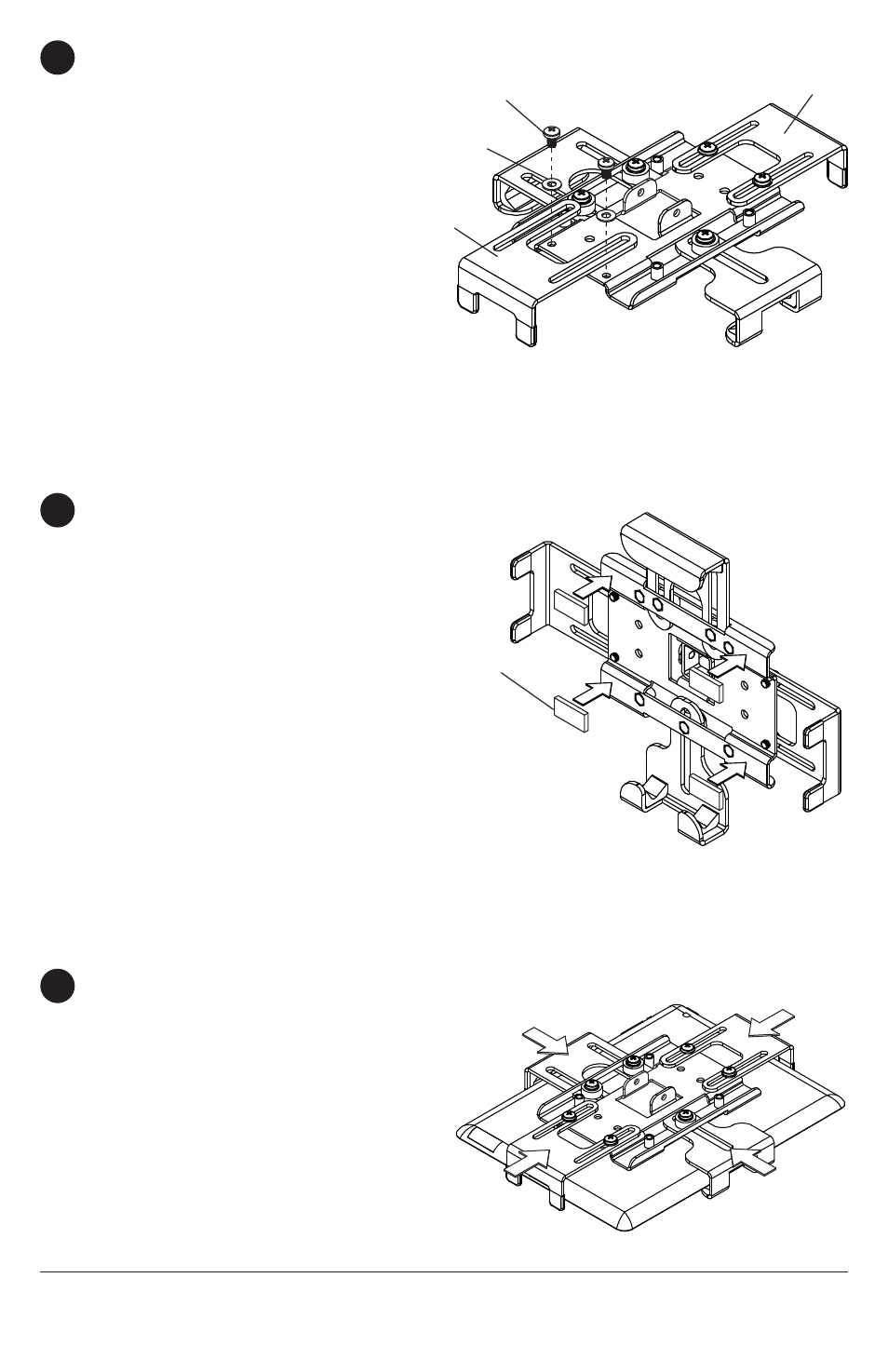

Secure two side clamps (B) to back of main plate
(A) with four M5 washers (F) and four M5 x 8 mm
self tapping phillips screws (G).
Do not tighten screws.
Apply four adhesive foam pads (J) to front of
main plate (A) as shown.
To prevent scratching the tablet, set a cloth on a
fl at, level surface. Place tablet face side down,
adjust clamps around tablet, then tighten all
seven screws.
