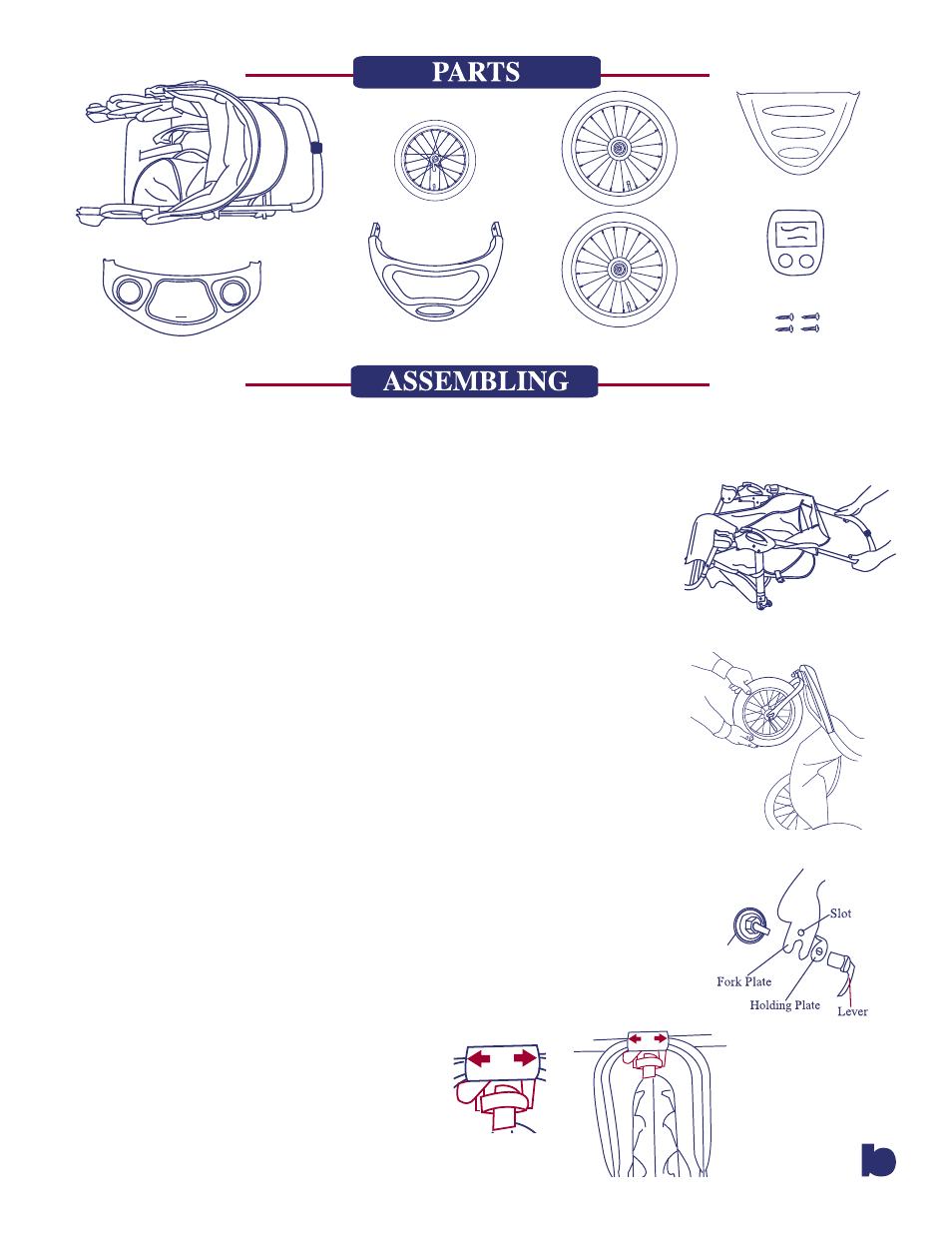

ASSEMBLY:
• Remove stroller from box. The front wheel, rear wheels, fender, child tray
and parent tray need to be installed prior to use.
• To attach the front wheel, unfold stroller as described in the section
following. See figure 1.
Lean the stroller backwards so that it rests on the handle and rear axle frame
and the front wheel forks are pointing upward.
The front wheel features a quick release attachment system. See figure 3.
The front swivel wheel can be locked and unlocked by rotating the lever left
or right. See figure 3a. Slide the front wheel onto the front forks. See figure
2. The quick release must be loose enough for the wheel to slide on and the
brake release lever must be in the open position (see figure 6). Line up the
tab on the Holding Plate with the slot on the fork plate. With the wheel in
position, tighten the finger nut on the axle until it is very close to contacting
the fork. See figure 4. Rotate the lever to the closed position as shown in
figure 5. To open lever see figure 6. You should feel significant resistance
when closing the lever and the wheel should be held tightly. If you do not,
open the lever and tighten the finger nut a bit more and close the lever again.
Continue to do this until the wheel is held tightly in the fork.
• The front fender is secured to the frame by the 4 screws provided. Line up
the holes on the plastic fender with the holes on the frame to secure. See
figure 7a. Line up the front fender and press onto the front frame assembly.
Insert the 4 screws through the underside of the front frame assembly into
the front fender's plastic tubes. Tighten the screws only until snug. See
figure 7b.
Do Not over-tighten.
TO ENSURE SAFE OPERATION OF YOUR STROLLER, PLEASE FOLLOW THESE
INSTRUCTIONS CAREFULLY. RETAIN THESE INSTRUCTIONS FOR FUTURE
REFERENCE.
Ring
Figure 1.
Figure 2.
Figure 3.
3
Front Wheel
Rear Wheels
Stroller
Fender Screws Parent Tray
Fender
Child Tray
Lock Unlock
Figure 3a.
Lock Unlock
Pedometer
