Wiring Configurations
INSTALLATION
Varying speaker wiring configuration enables you to create an impedance load to match
your system. Altering the wiring configurations provides for a range of impedance load
options.
Techniques for wiring speakers to match specific loads include series, parallel or
series-parallel wiring configurations.
• Series configuration is a string method that wires speakers end to end.
• Parallel configuration uses two or more speakers wired across common terminals.
• Series-parallel configuration combines both techniques.

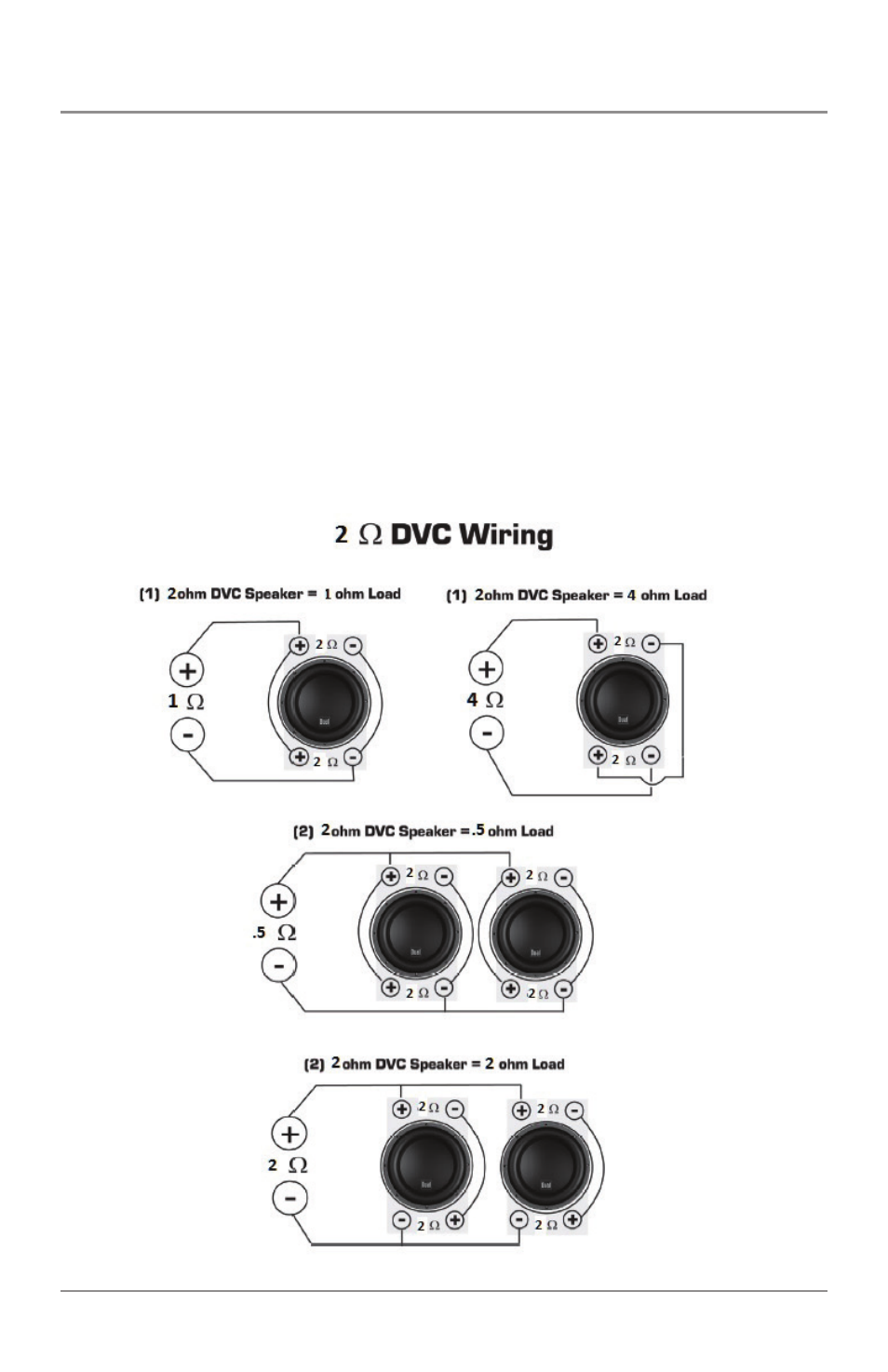

Choose the wiring diagram that corresponds to the number of woofers and the
impedance of your amplifier.
