Dual Electronics AMB600W - Manual (Page 3)

3
AMB600W INSTALLATION

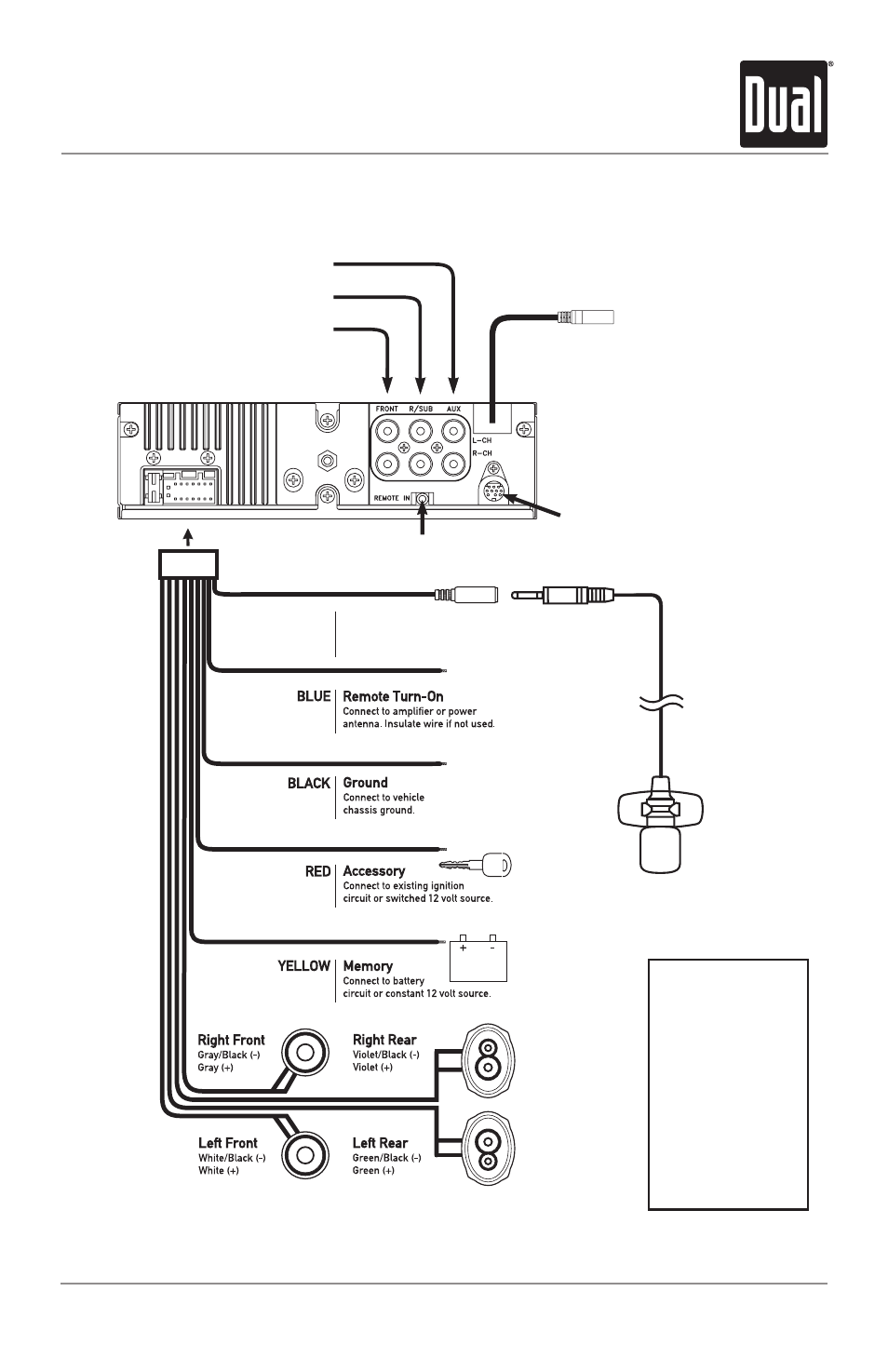

Wiring Diagram
SiriusXM Vehicle Tuner Connection
(tuner sold separately)
Remote Control Input
(not used)
REAR/SUB
RCA Preamp Connections
FRONT
REAR AUXILIARY INPUT
BLACK
Bluetooth Microphone
(must be connected for Bluetooth functionality)
Bluetooth Microphone Input
Connect the included
Bluetooth microphone.
BLACK - Antenna Input
Connect the vehicle antenna
FUSE
When replacing the
fuse, make sure new
fuse is the correct type
and amperage. Using
an incorrect fuse could
damage the radio.
The AMB600W uses
one 10 amp ATM fuse
located beside the wiring
connector.
