FUSE
When replacing the fuse,
make sure new fuse is the
correct type and amperage.
Using an incorrect fuse
could damage the radio.
The XHD645 uses one
10 amp ATM fuse located
beside the wiring connector.
XHD6425 INSTALLATION

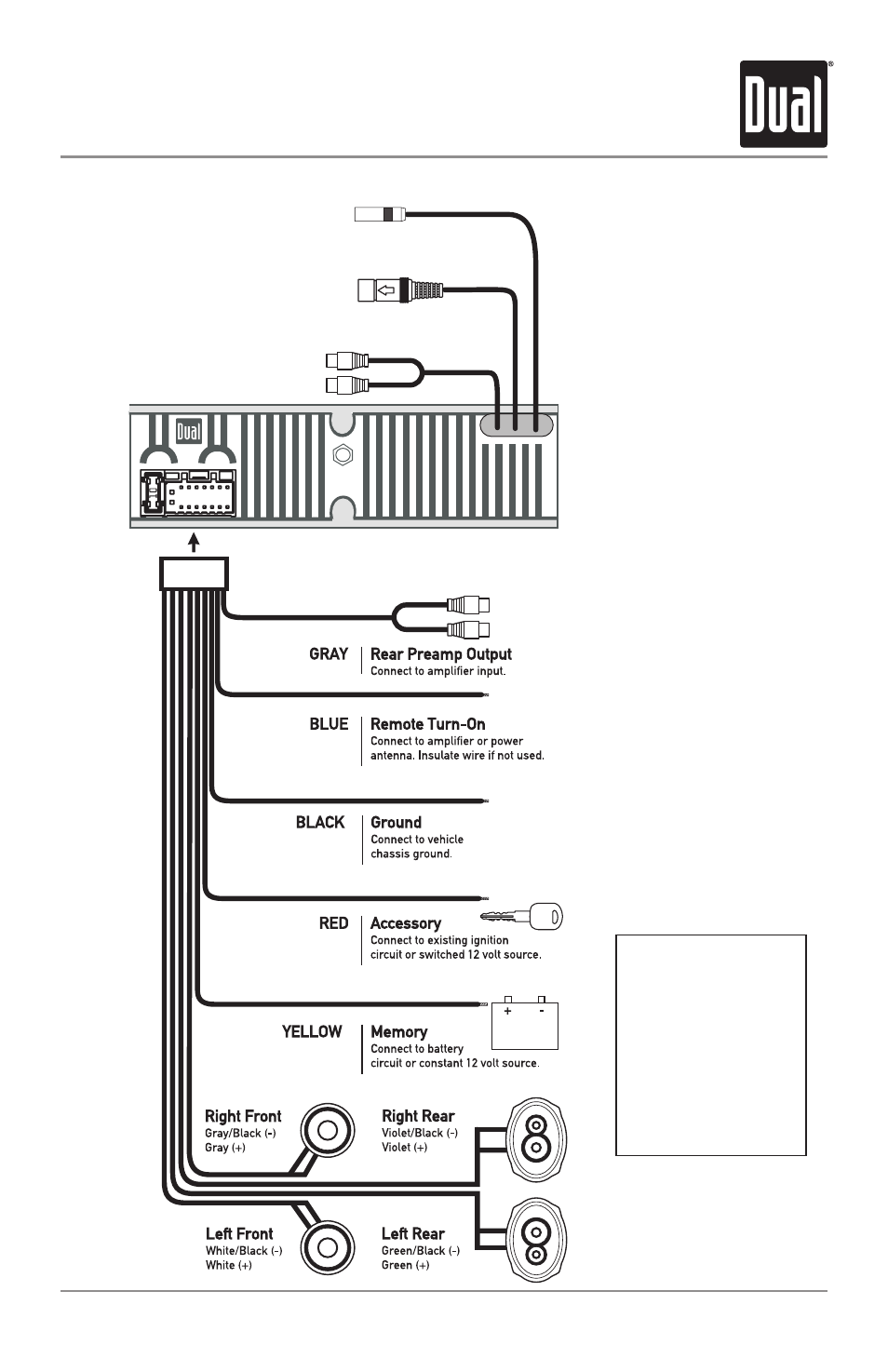

Wiring Diagram
BLACK 8-pin Female Mini-DIN
BTM60 Connection (sold separately)
Antenna Connector
BLACK
Front Preamp Output
