6
Rear Right Channel (Red)
Rear Left Channel (White)
Front Right Channel (Red)
Front Left Channel (White)
Aux In Left (White)
Aux In Right (Red)
Subwoofer
Video Input (Yellow)
Video Output (Yellow)
Video Output (Yellow)
Camera Input (Purple)
Radio Antenna Connector
RCA Cable
Grey
Grey
Brown
Brown
Black
Black
Black
Black
Grey
Grey
Black
Main Unit
Front Speaker
Left Channel
Rear Speaker
Left Channel
Rear Speaker
Right Channel
Front Speaker
Right Channel
White
White/Black
Green
Green/Black
Purple
Purple/Black
Grey
Grey/Black
Brake
Camera (B+)
Amp Control
Power Antenna
Illumination Control
Ignition Switch (B+)
Ground (B-)
Memory Backup
Pink
Orange
Blue/Black
Blue
Orange/Black
Red
Black
Yellow
iPod

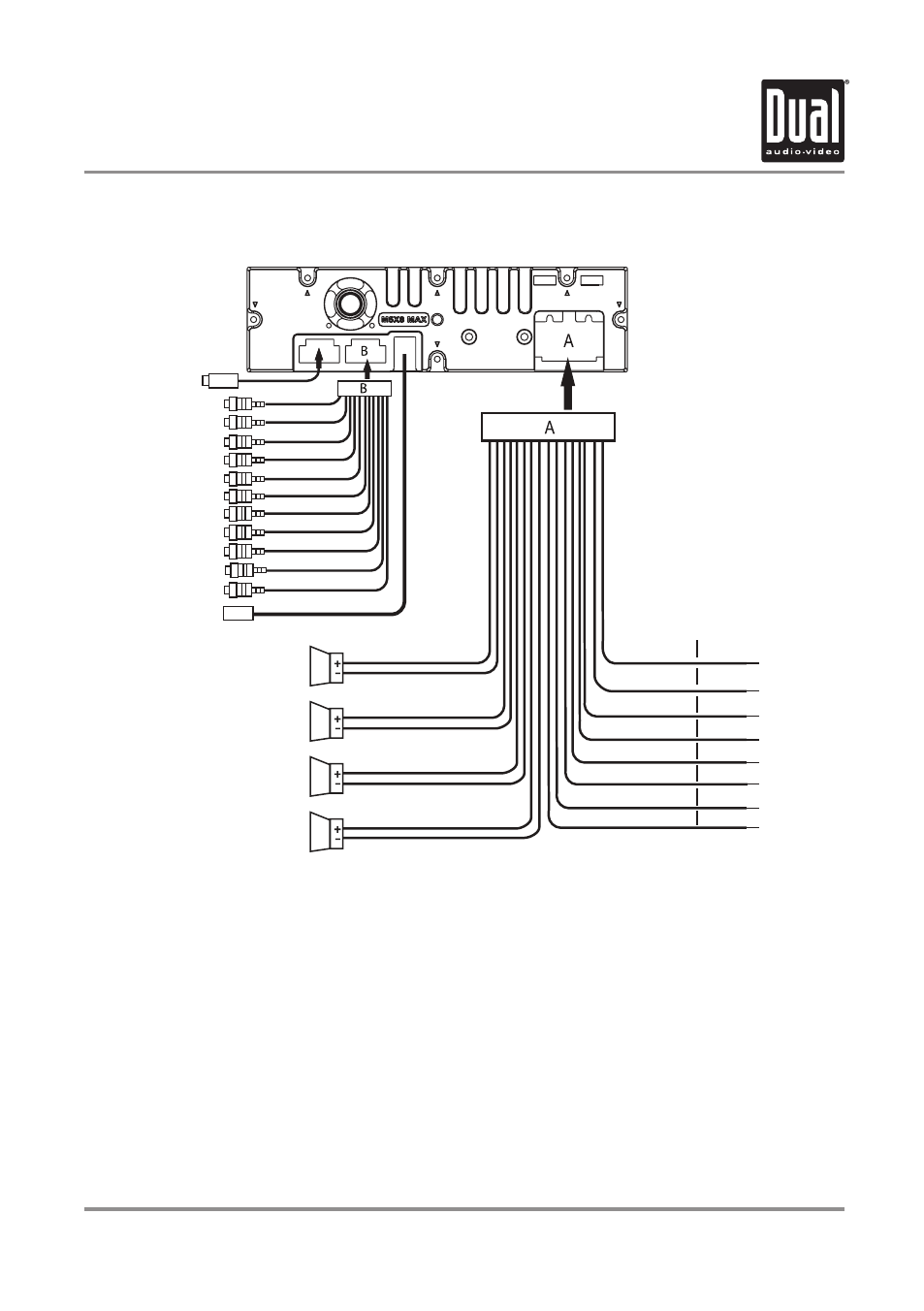

Wiring Diagram - Inputs/Outputs
XDVD1170 INSTALLATION
Wiring Notes:
Subwoofer output
The Subwoofer preamp audio output (black jacket with green RCA) is active in all audio modes.
Rear camera input
A rear view camera (not included) can be used with the Camera input. Refer to page 35 for details.
Connecting an iPod/iPhone device
To play music from an iPod/iPhone device, connect the included iPod connection cable to the XDVD1170. Once
connected, playback will begin automatically.
Note:
When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could damage
the unit. The XDVD1170 uses (1) 15 amp ATC mini style fuse located on the back of the unit.
