X2DMA400 OPERATION
FUSE
When replacing the fuse,
make sure new fuse is the
correct type and amperage.
Using an incorrect fuse
could damage the radio.
The X2DMA400 uses one
10 amp ATM fuse located
beside the wiring connector.

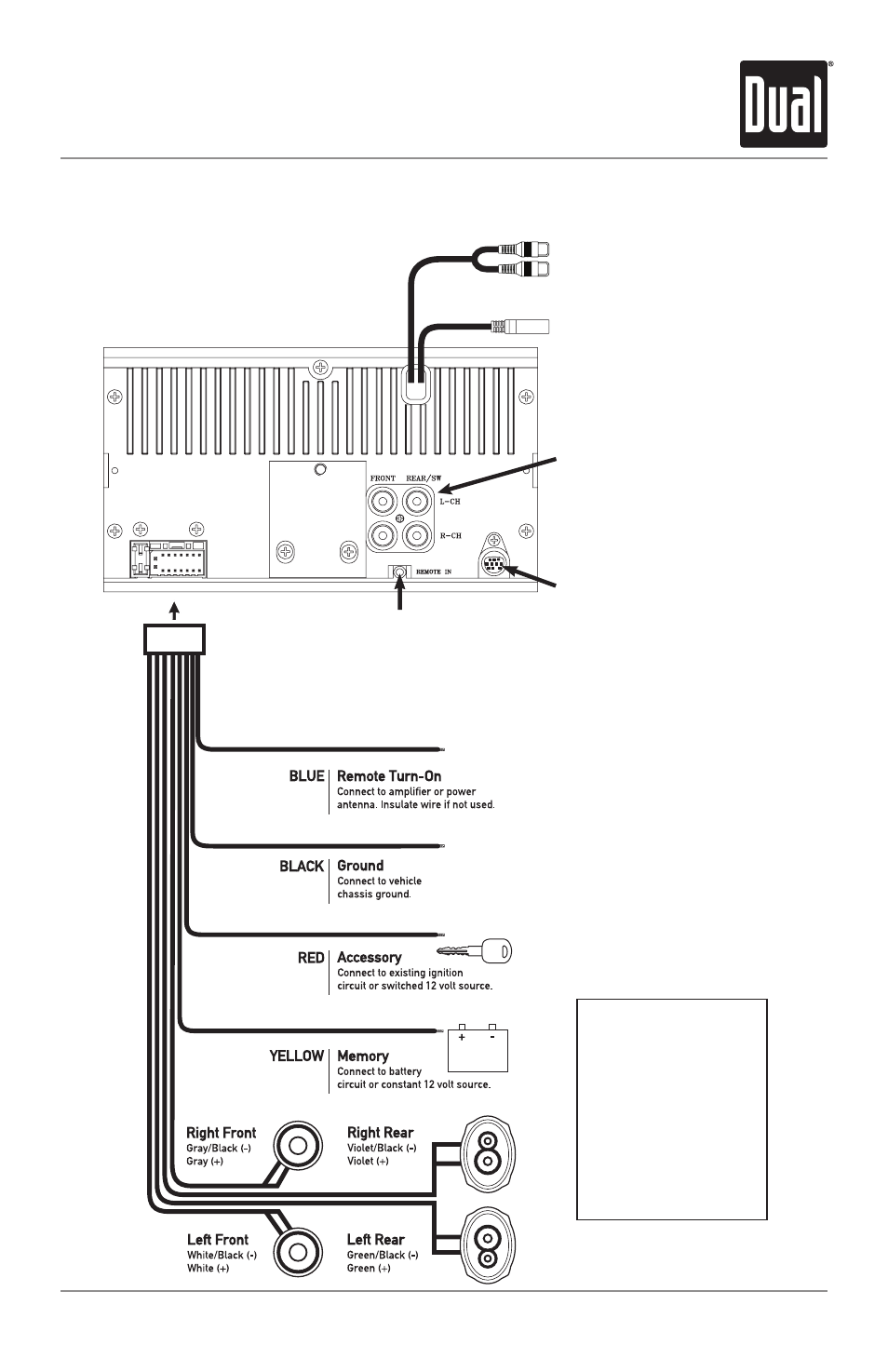

Wiring Diagram
SiriusXM Vehicle Tuner Connection
(tuner sold separately)
Steering Wheel Interface Input
(PAC SWI-PS sold separately)
RCA Preamp Outputs
External Amplifer Connections
YELLOW - Rear RCA Input
Connect a portable device
BLACK - Antenna Input
Connect the vehicle antenna
