XDMAR6720 INSTALLATION
SiriusXM Vehicle Tuner Connection
(tuner sold separately)
Steering Wheel Interface Input
(PAC SWI-PS sold separately)
REAR
RCA Preamp Outputs
External Amplifer Connections
FRONT
SUB
BLACK
Bluetooth Microphone
(must be connected for Bluetooth functionality)
Bluetooth Microphone Input
Connect the included
Bluetooth microphone.
YELLOW - Rear RCA Input
Connect a portable device
BLACK - Antenna Input
Connect the vehicle antenna
BLUE - 10-pin Female Mini-DIN
HDM90 HD Radio™ Tuner Connection (sold separately)

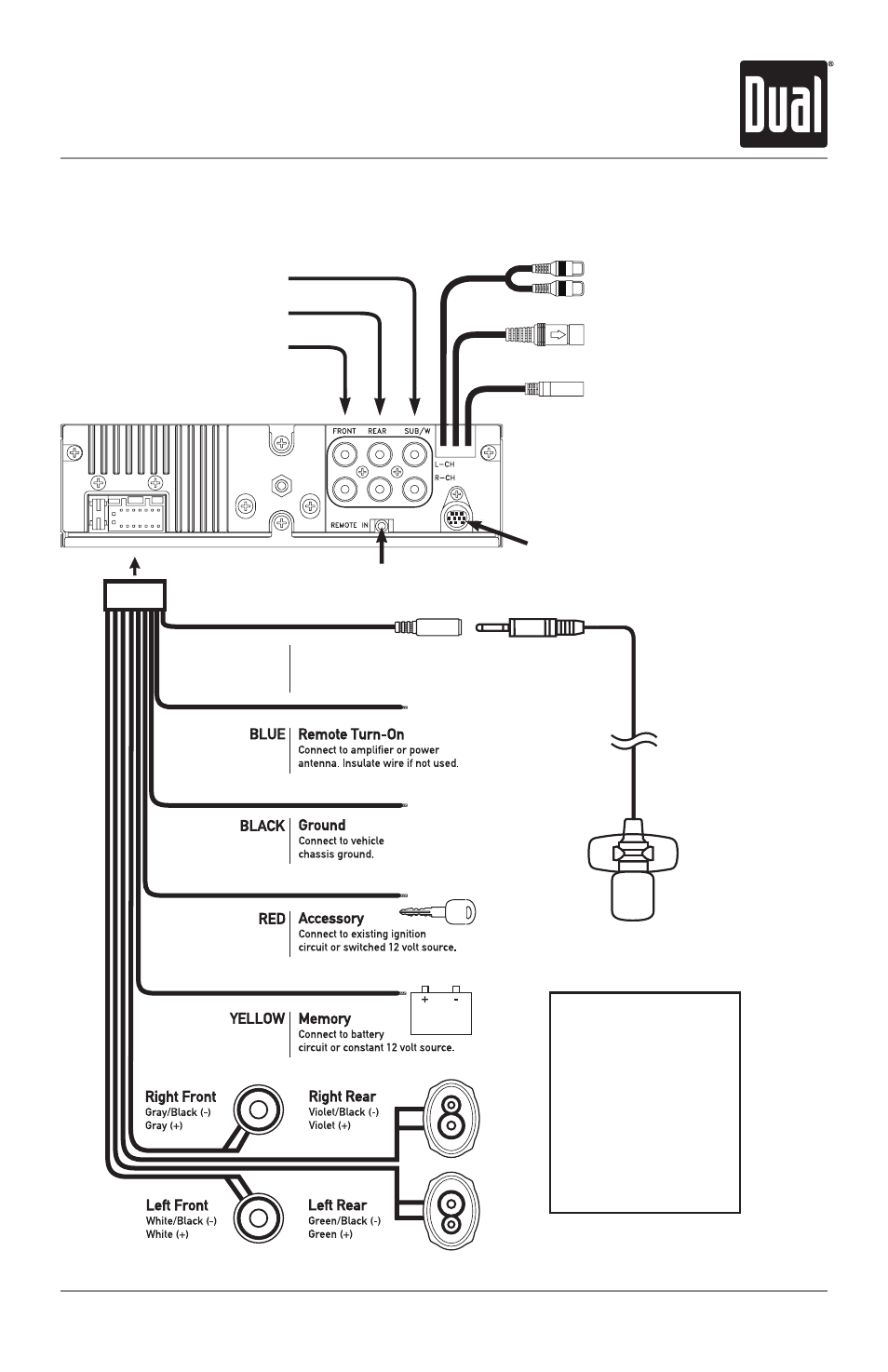

Wiring Diagram
FUSE
When replacing the fuse,
make sure new fuse is the
correct type and amperage.
Using an incorrect fuse could
damage the radio.
The XDMAR6720 uses one
10 amp ATM fuse located
beside the wiring connector.
