17
3346C–SEEPR–7/04
8Y4 – SAP
1150 E. Cheyenne Mtn. Blvd.
Colorado Springs, CO 80817
TITLE DRAWING NO.
R
REV.

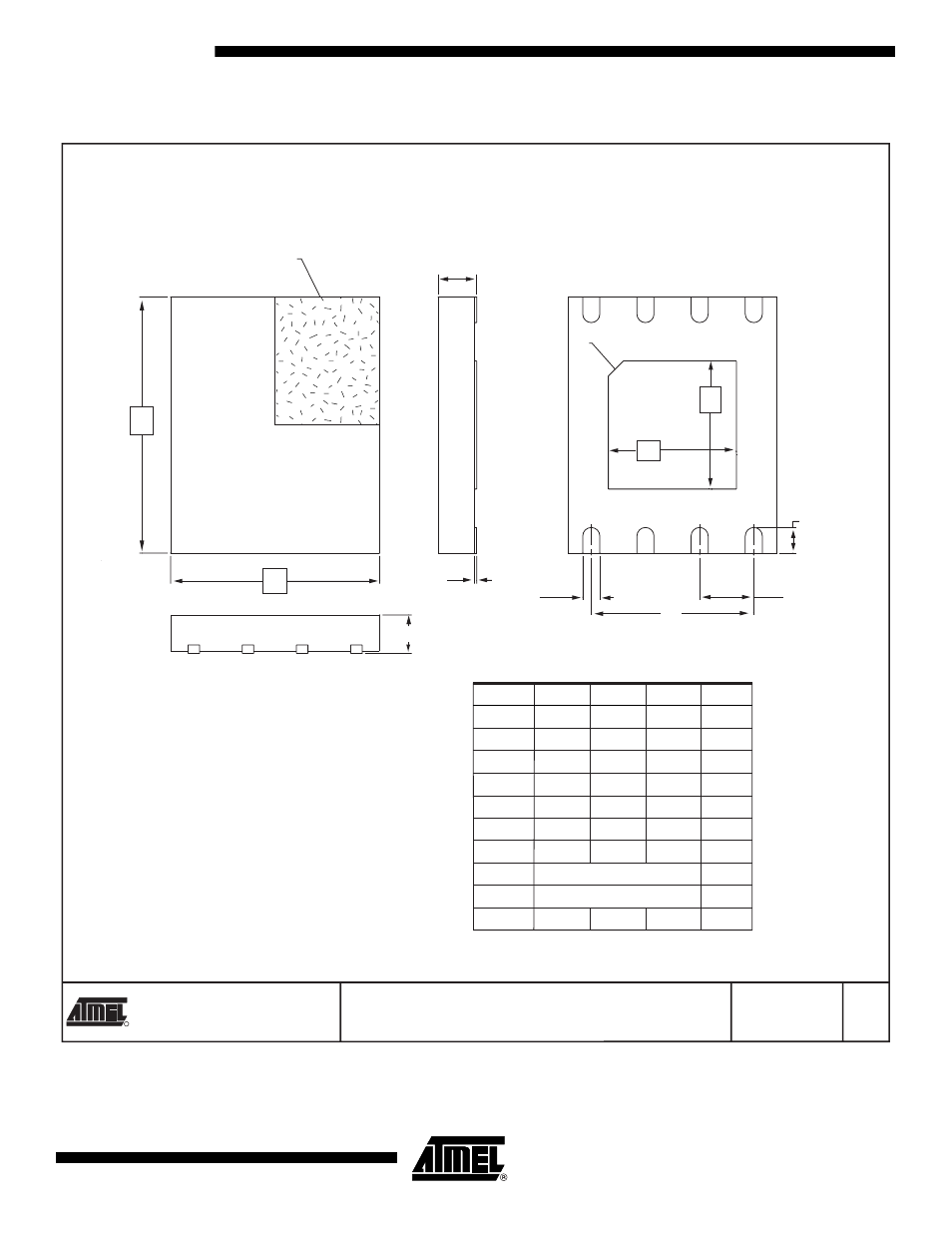

8Y4, 8-lead (6.00 x 4.90 mm Body) SOIC Array Package
(SAP) Y4
A 8Y4
5/24/04
COMMON DIMENSIONS
(Unit of Measure = mm)
SYMBOL MIN NOM MAX NOTE
A – – 0.90
A1 0.00 – 0.05
D 5.80 6.00 6.20
E 4.70 4.90 5.10
D1 2.85 3.00 3.15
E1 2.85 3.00 3.15
b 0.35 0.40 0.45
e 1.27 TYP
e1 3.81 REF
L 0.50 0.60 0.70
A
E A1
b
PIN 1 INDEX AREA
D
A
PIN 1 ID
E1
D1
L
e
e1
