Typical performance characteristics – Rainbow Electronics LM3815 User Manual
Page 5

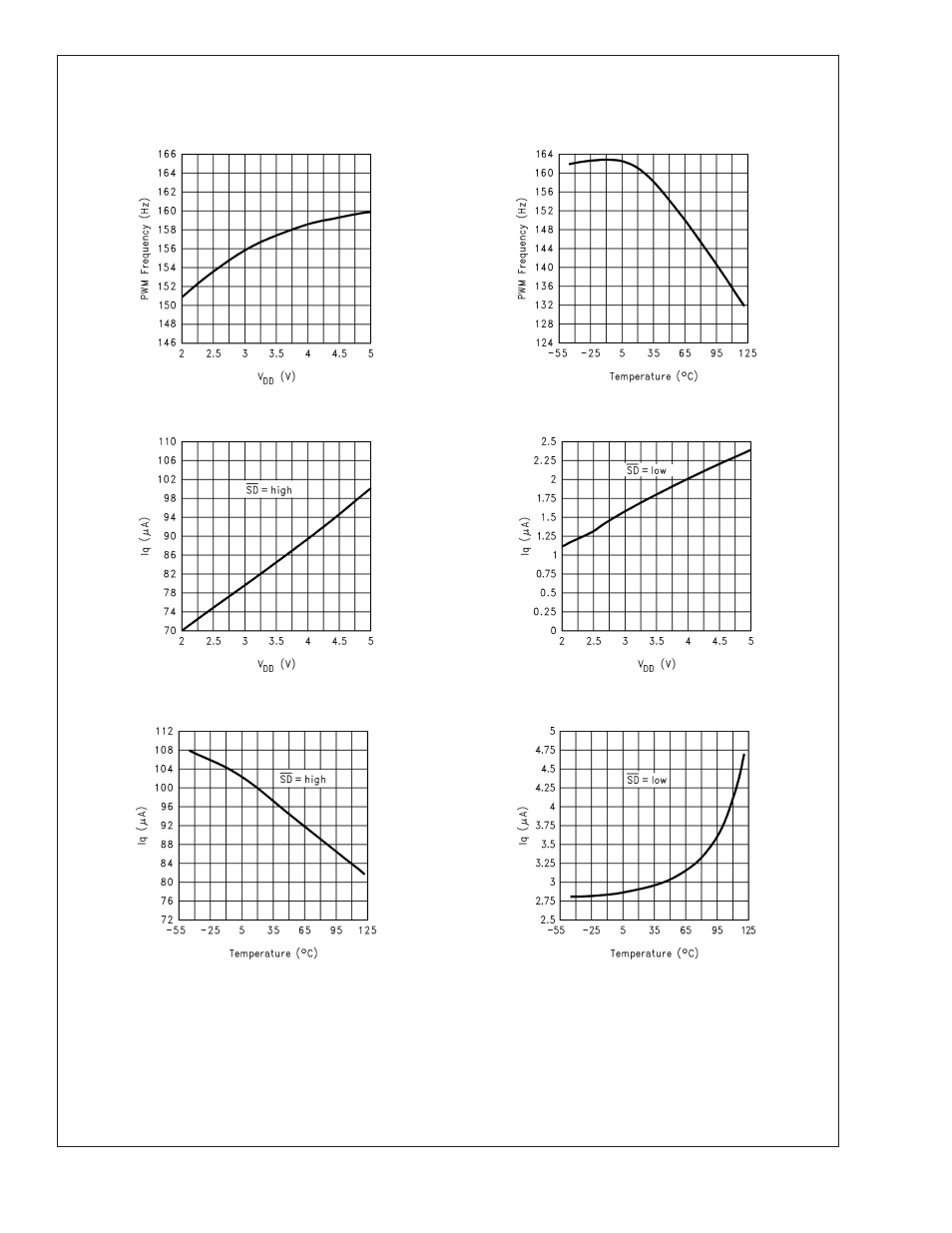

Typical Performance Characteristics
Supply bypass capacitor is 0.1µF and filter capacitor is
0.1µF. (Continued)
PWM Frequency vs Supply Voltage
PWM Frequency vs Temperature
10101314
10101317
Operating Current vs Supply Voltage
Shutdown Current vs Supply Voltage
10101318
10101319
Operating Current vs Temperature
Shutdown Current vs Temperature
10101320
10101321
LM3814/LM3815
www.national.com
5
