MAX1003

Single-ended and differential AC-coupled input circuits
are shown in Figures 2 and 3. Each of the amplifier
inputs is internally biased to a 2.35V reference through
a 20k

resistor, eliminating external DC bias circuits. A

series 0.1µF capacitor is required at each amplifier
input for AC-coupled signals.

When operating with AC-coupled inputs, the input
amplifiers’ DC offset voltage is nulled to within ±1/2LSB
by an on-chip offset-correction amplifier. An external

compensation capacitor is required to set the dominant
pole of the offset-correction amplifier’s frequency
response (Figures 2 and 3). The compensation capaci-
tor will determine the low-frequency corner of the ana-
log input response according to the following formula:

f

c

= 1 / (0.1 x C)

where C is the value of the compensation capacitor in
µF, and f

c

is the corner frequency in Hz.

Low-Power, 90Msps, Dual 6-Bit ADC

6

_______________________________________________________________________________________

0

DIV

90Msps

DATA

BUFFER

TANK

MODCTL

CAR

SYNTHESIZER

FIN

IIN

AGC

CLK IN

DSP

QIN

ADC CLOCK

6 BITS

TANK

LO

TSA5055

or EQUIV.

90

MOD GND

AGC

IOUT

QOUT

V

CC

FROM TANK VOLTAGE

VARACTOR-TUNED

PRESELECTION FILTER

EXTERNAL

VCO

OR

OR

KU BAND

75

CABLE

950MHz TO 2150MHz

F-CONNECTOR

INPUT

MAX2102

MAX1003

DATA

BUFFER

LO

RFIN

RFIN

LNB

6 BITS

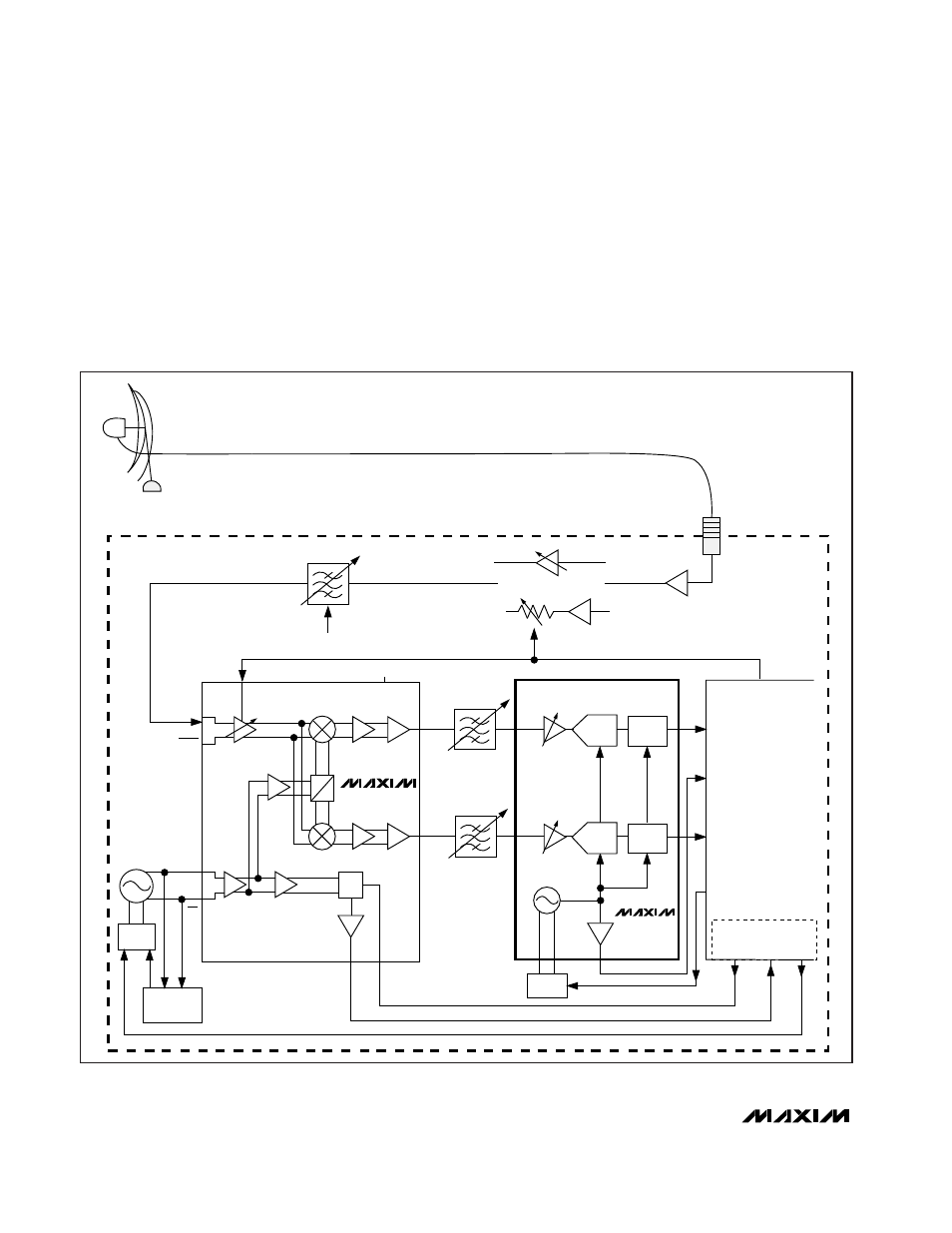

Figure 1. Commercial Satellite Receiver System
