_______________General Description
The MAX836/MAX837 micropower voltage monitors
contain a 1.204V precision bandgap reference and a
comparator in a SOT143 package. The MAX836 has an
open-drain, N-channel output driver, while the MAX837
has a push-pull output driver. Two external resistors set
the trip threshold voltage.
________________________Applications
Precision Battery Monitor
Load Switching
Battery-Powered Systems
Threshold Detectors
____________________________Features
♦ ±1.25% Precision Voltage Threshold
♦ SOT143 Package
♦ Low Cost
♦ <5µA Typical Supply Current
♦ Open-Drain Output (MAX836)
Push-Pull Output (MAX837)
MAX836/MAX837
4-Pin Micropower Voltage Monitors
________________________________________________________________ Maxim Integrated Products 1

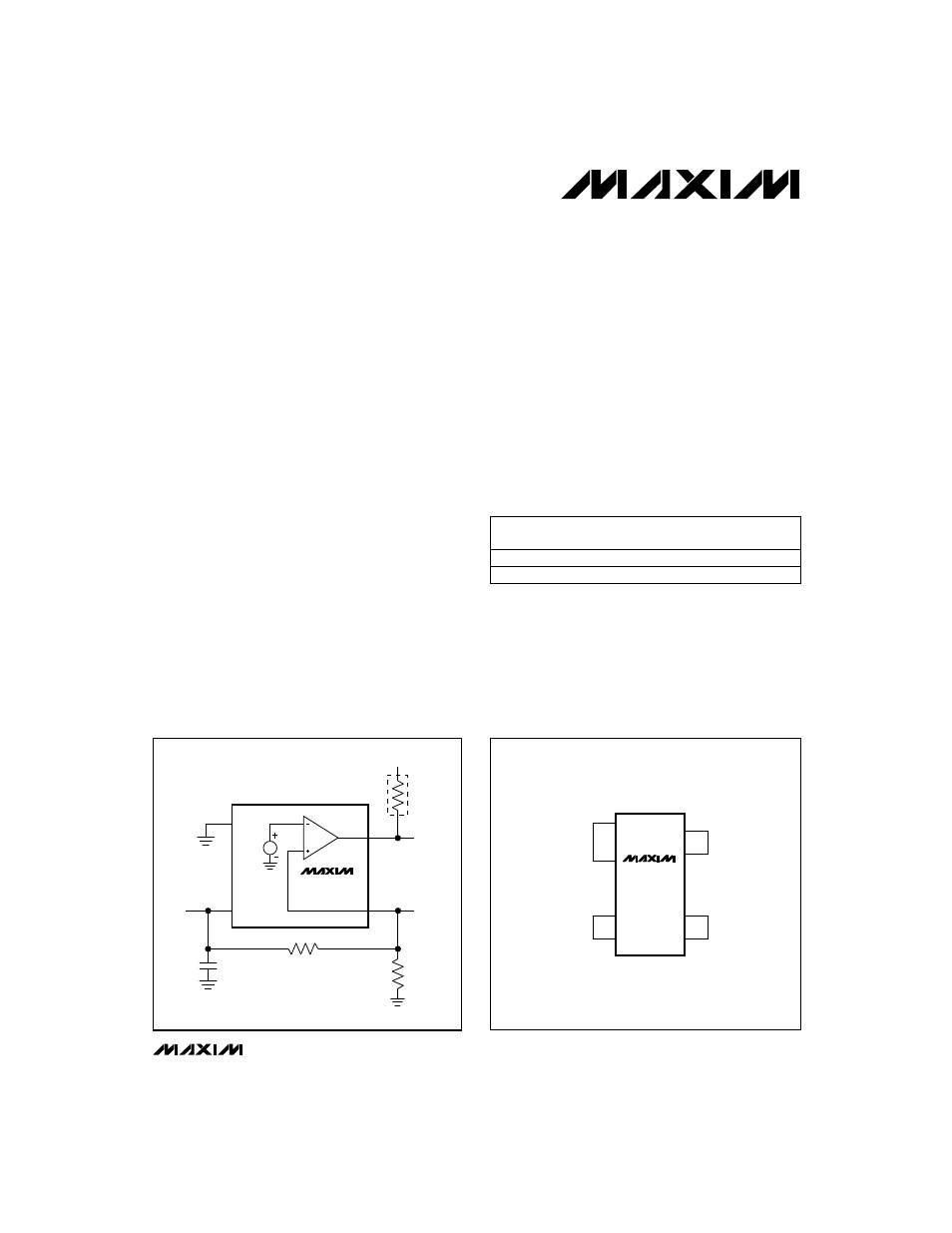

TOP VIEW
1
2
4
3
OUT
IN V CC
GND
SOT-143
MAX836
MAX837
__________________Pin Configuration
GND
1.204V
REF
OUT
MAX836
ONLY
IN
MAX836
MAX837
V CC V CC
V CC
0.1 µ F
__________Typical Operating Circuit
19-1137; Rev 0; 9/96
PART*
MAX836 EUS-T
MAX837 EUS-T -40°C to +85°C
-40°C to +85°C
TEMP. RANGE
PIN-
PACKAGE
4 SOT143
4 SOT143
______________Ordering Information
* All devices available in tape-and-reel only. Contact factory for
availability.
For free samples & the latest literature: http://www.maxim-ic.com, or phone 1-800-998-8800
MARKING
CODE
AAEQ
AAER
