As a result, the analog input impedance is relatively
constant over input voltage as shown in Figure 5.
Single-ended conversions are internally referenced to
AGND1 (Tables 3 and 4). In differential mode, IN+ and
IN- are selected according to Tables 3 and 5. When con-
figuring differential channels, the differential pair follows
the analog configuration byte for the positive channel.
For example, to configure CH2 and CH3 for a ±12V dif-
ferential conversion, set the CH2 analog configuration
byte for a differential conversion with the ±12V range
(1010 1100). To initiate a conversion for the CH2 and
CH3 differential pair, issue the command 1010 0000.
Analog Input Bandwidth
The MAX1032/MAX1033 input-tracking circuitry has a
2MHz small-signal bandwidth. The 2MHz input band-
width makes it possible to digitize high-speed transient
events. Harmonic distortion increases when digitizing
signal frequencies above 15kHz as shown in the THD
and -SFDR vs. Input Frequency plot in the Typical
Operating Characteristics.
Analog Input Range and Fault Tolerance
Figure 7 illustrates the software-selectable single-
ended analog input voltage range that produces a valid
digital output. Each analog input channel can be inde-
pendently programmed to one of seven single-ended
input ranges by setting the R[2:0] control bits with
DIF/SGL = 0.
MAX1032/MAX1033
8-/4-Channel, ±12V Multirange Inputs,
Serial 14-Bit ADCs
______________________________________________________________________________________ 15
CS
SCLK
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
DIN S C2 C1 C0 0 0 0 0
ANALOG INPUT
TRACK AND HOLD*
DOUT B13 B12 B11 B10 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0 X X
BYTE 1 BYTE 2 BYTE 3 BYTE 4
SSTRB
HOLD TRACK HOLD
HIGH
IMPEDANCE
HIGH
IMPEDANCE
t ACQ
*TRACK AND HOLD TIMING IS CONTROLLED BY SCLK.
f SAMPLE
≈ f
SCLK / 32
SAMPLING INSTANT

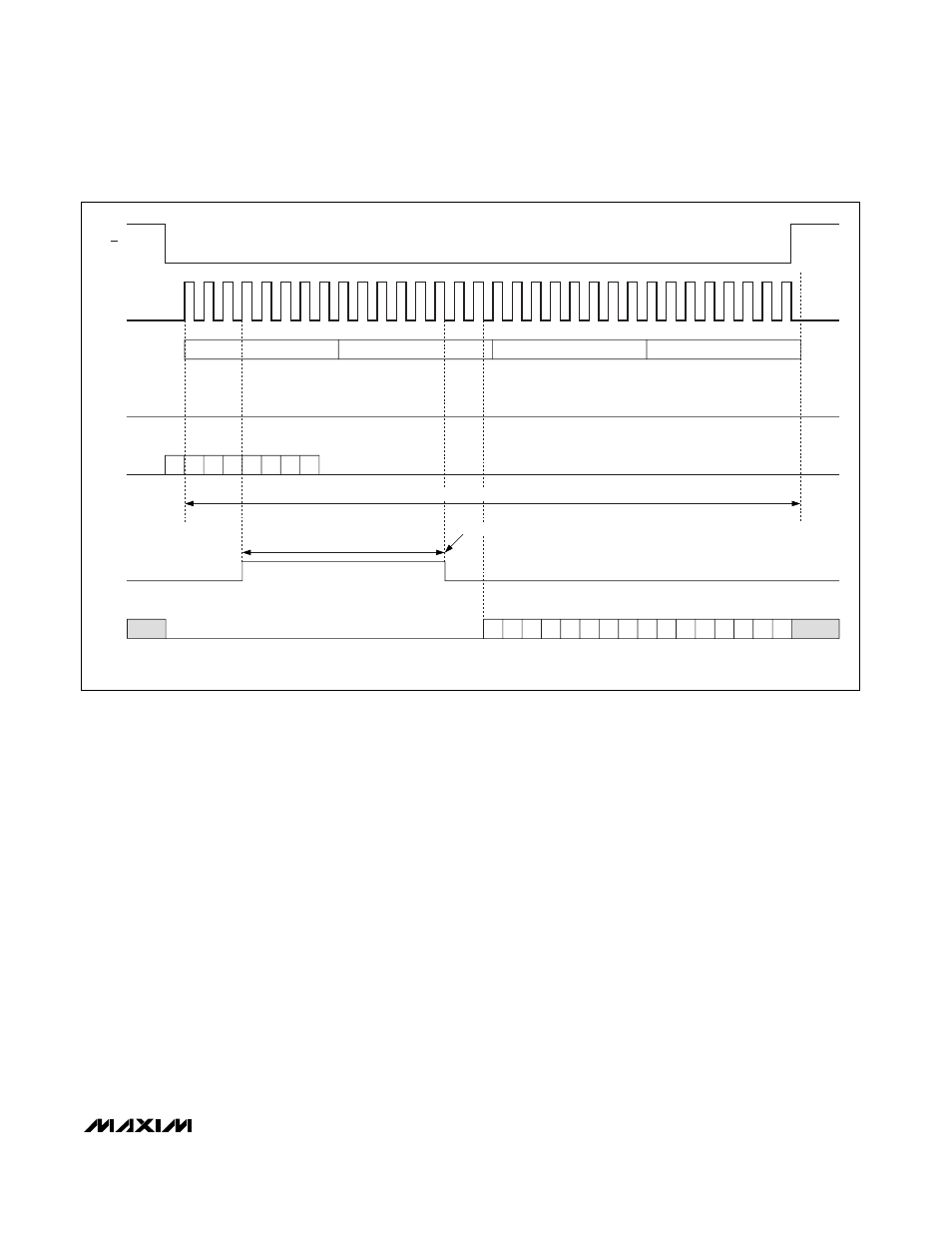

Figure 2. External Clock-Mode Conversion (Mode 0)
