MAX1032/MAX1033
8-/4-Channel, ±12V Multirange Inputs,
Serial 14-Bit ADCs
______________________________________________________________________________________
11

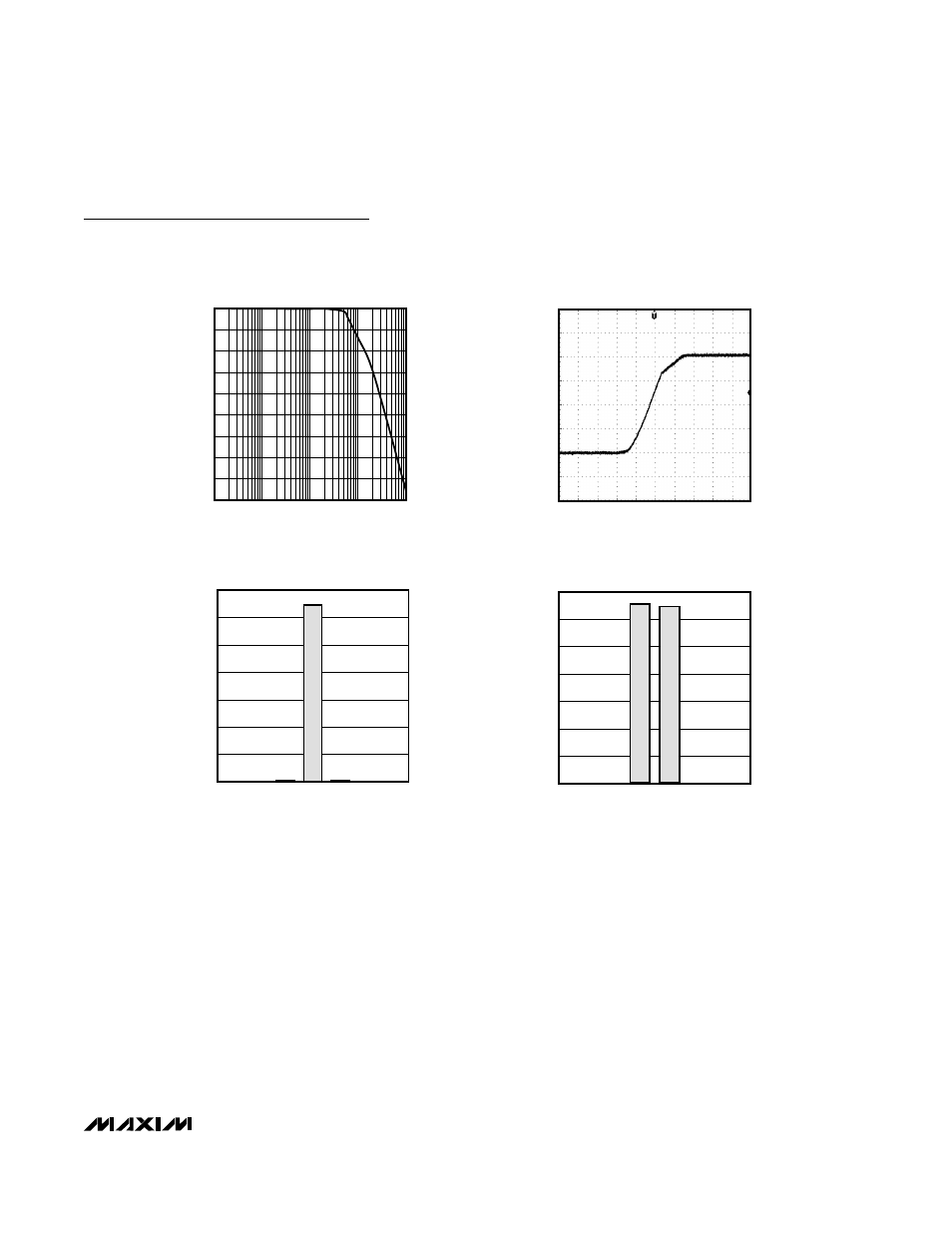

FULL-POWER BANDWIDTH
MAX1032/33 toc26
FREQUENCY (kHz)
ATTENUATION (dB)
1000
100
10
-40
-35
-30
-25
-20
-15
-10
-5
0
-45
1
10,000
REFERENCE VOLTAGE vs. TIME
MAX1032/33 toc27
1V/div
0V
4ms/div
NOISE HISTOGRAM
(CODE CENTER)
MAX1032/33 toc28
CODE
NUMBER OF HITS
8193
10,000
20,000
30,000
40,000
50,000
60,000
70,000
0
8191
8195
8197
65,534 SAMPLES
8192
8194
8196
NOISE HISTOGRAM
(CODE EDGE)
MAX1032/33 toc29
CODE
NUMBER OF HITS
8194
5000
10,000
15,000
20,000
25,000
30,000
35,000
0
65,534
SAMPLES
8195
8193
8196
8197
8192
Typical Operating Characteristics (continued)
(AV
DD1
= AV
DD2
= DV
DD
= DV
DDO
= 5V, AGND1 = DGND = DGNDO = AGND2 = AGND3 = 0, f
CLK
= 3.5MHz (50% duty cycle),
external clock mode, V
REF
= 4.096V (external reference operation), REFCAP = AV
DD1
, maximum single-ended bipolar input range
(±12V), C
DOUT
= 50pF, C
SSTRB
= 50pF; unless otherwise noted.)
