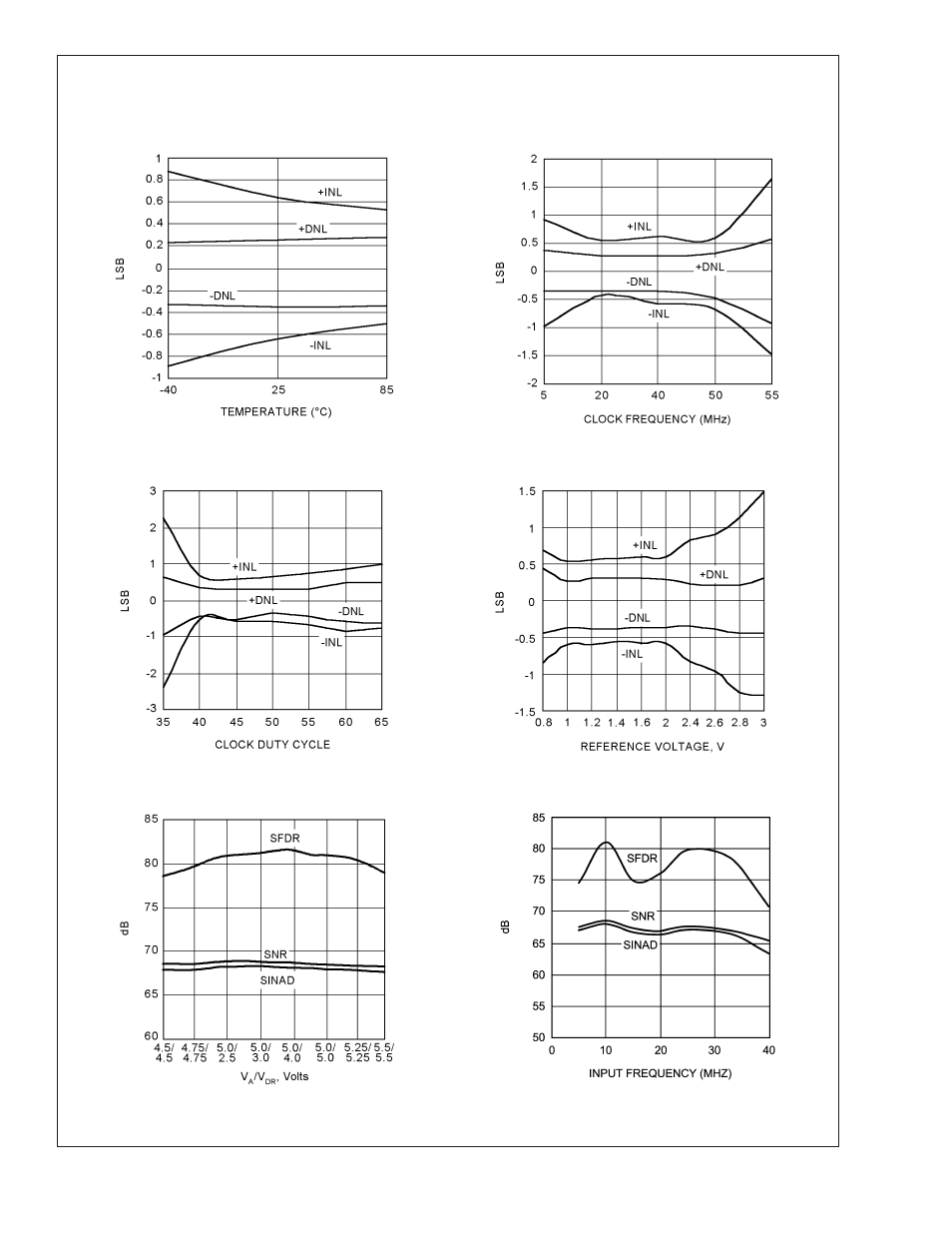

Typical Performance Characteristics
V
A
= V
D
= 5V, V
DR
= 3V, f
CLK
= 40 MHz, f
IN
= 10 MHz unless
otherwise stated (Continued)
INL & DNL vs. Temperature
DNL & INL vs. Clock Frequency
20046039
20046044
DNL & INL vs. Clock Duty Cycle
DNL & INL vs. Reference Voltage
20046047
20046050
SNR, SINAD, SFDR vs. Supply Voltage
SINAD, SNR, SFDR vs. Input Frequency
20046040
20046042
ADC12D040
www.national.com
13
