Integrated Circuits Inc. aP8942A
Ver 2.0 Dec 6, 2006 13

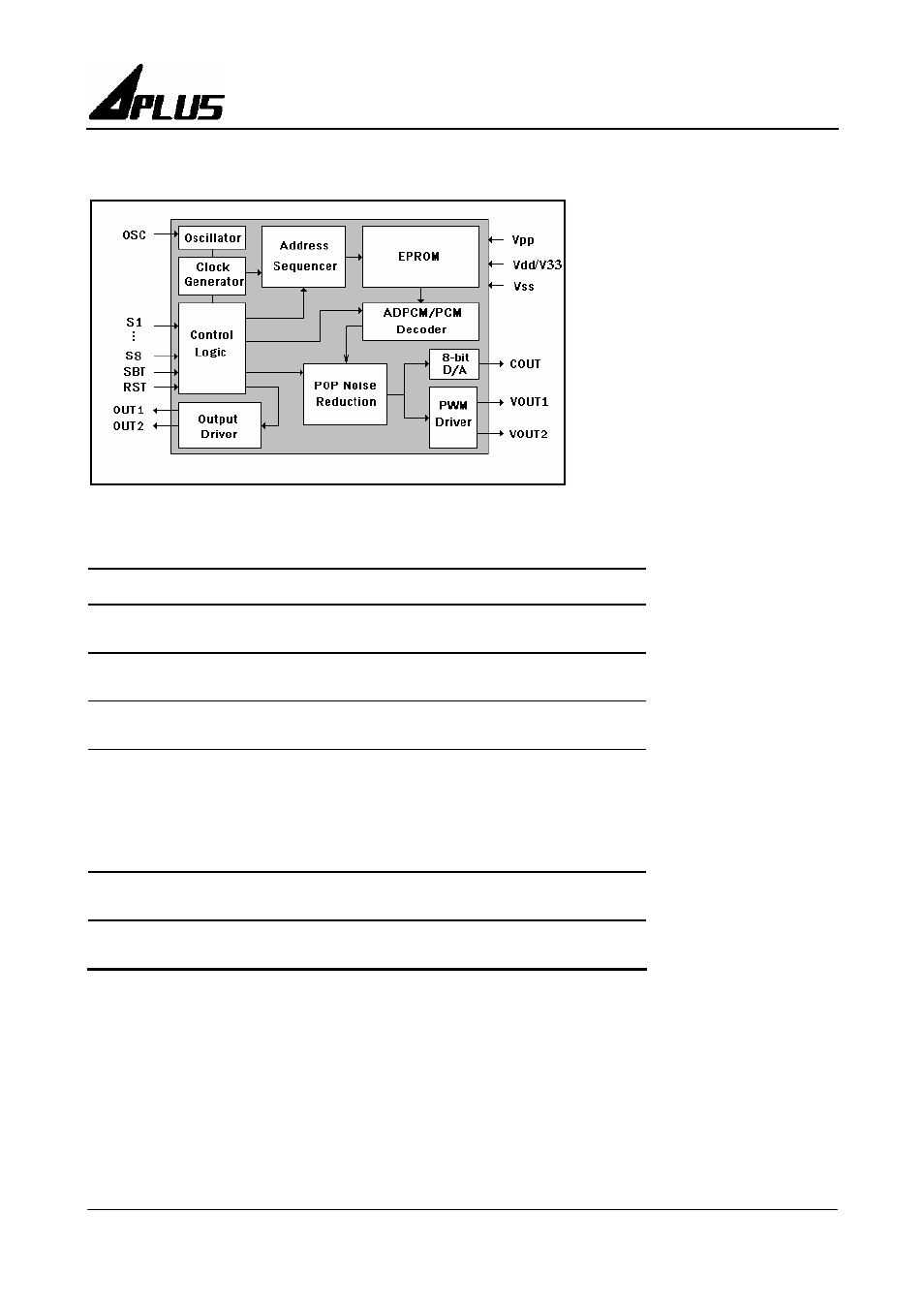

BLOCK DIAGRAM
ABSOLUTE MAXIMUM RATINGS
Symbol Rating Unit
VDD - VSS -0.5 ~ +6 V
VIN VSS - 0.3 V
VOUT VSS V
T (Operating):
DIP
SOP
-10 ~ +70
-40 ~ +85
℃
T (Junction) -40 ~ +125 ℃
T (Storage) -55 ~ +125 ℃
