TYPICAL APPLICATIONS

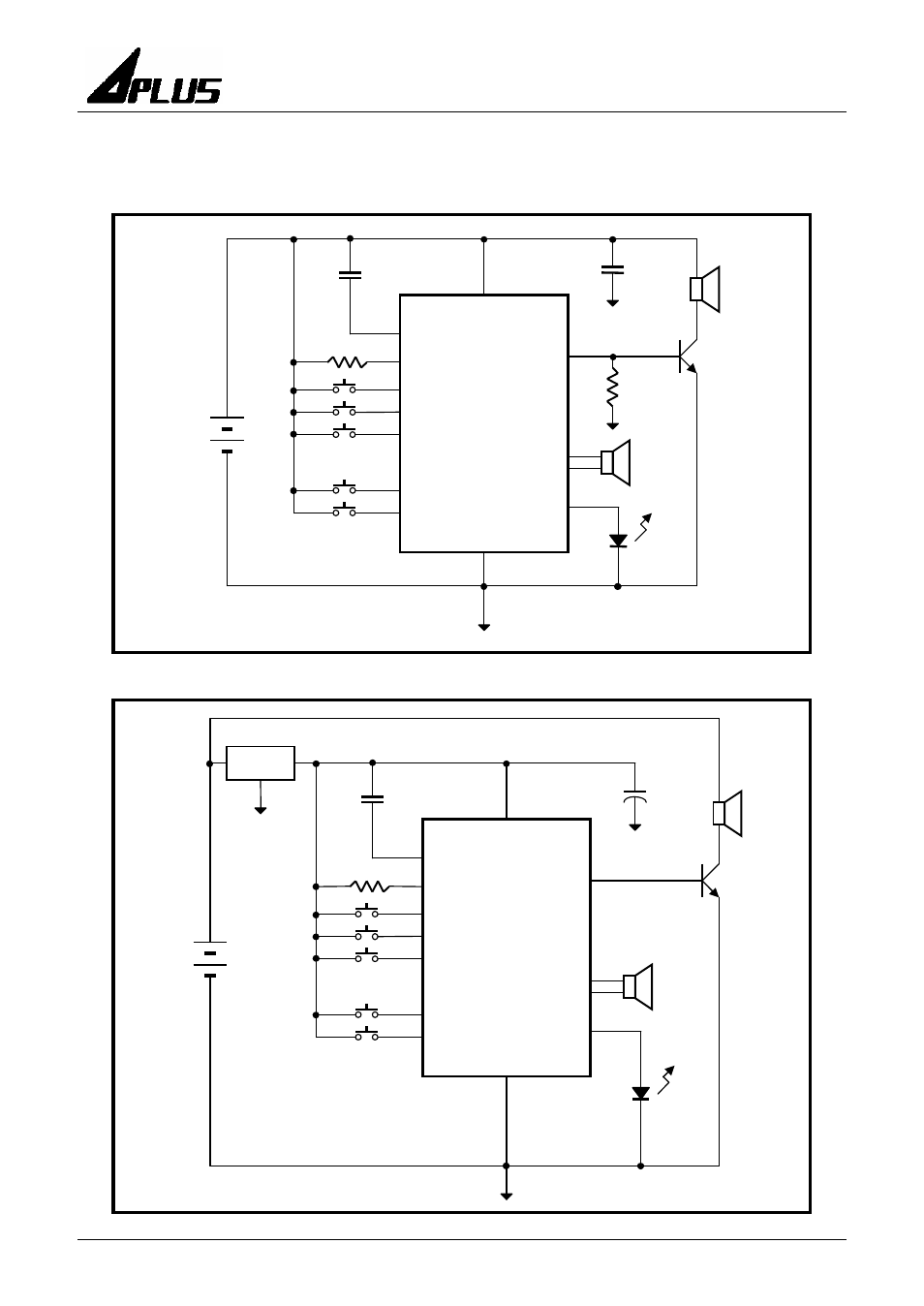

Key Trigger Mode
Fig. 12 Using 3.3V Battery
Fig. 13 Using 4.5V Battery
VDD,VPP
VSS
4.5V
RST
S1
S2
S3
S8
SBT
OSC
0.01uF
10uF
R OSC 8050D
COUT
8Ω
Speaker
8 / 16Ω
Speaker
VOUT1
VOUT2
OUT1
HT7335
Output driving of HT LDO:
HT7136 (30mA, 3.6V)
HT7133 (30mA, 3.3V)
HT7536 (100mA, 3.6V)
HT7335 (250mA, 3.5V)
•
•
•
•
•
•
VDD,VPP
VSS
3.3V
RST
S1
S2
S3
S8
SBT
OSC
0.01uF
0.1uF
R
OSC 8050D
COUT
390Ω
8Ω
Speaker
8 / 16Ω
Speaker
VOUT1
VOUT2
OUT1
•
•
•
•
•
•
