28P3

34.80(1.370)

34.54(1.360)

8.26(0.325)

7.62(0.300)

10.20(0.400)MAX

0.38(0.015)

2.54(0.100)BSC

3.56(0.140)

3.05(0.120)

4.57(0.180)MAX

0º~ 15º REF

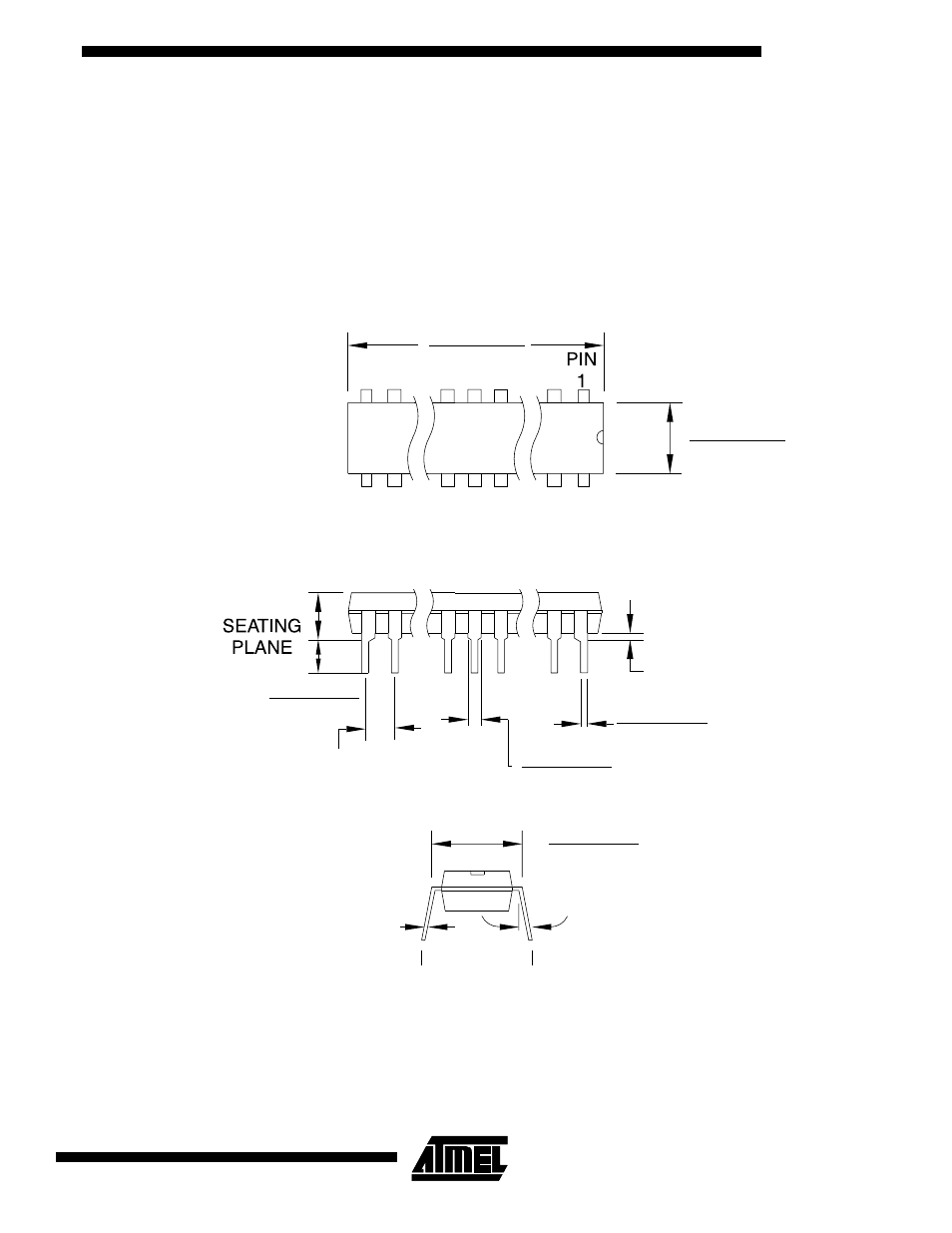

28-lead, Plastic Dual Inline
Package (PDIP), 0.300" Wide, (0.288" body width)
Dimensions in Millimeters and (Inches)*

*Controlling dimension: Inches

7.49(0.295)

7.11(0.280)

1.65(0.065)

1.27(0.050)

0.56(0.022)

0.38(0.015)

REV. A 04/11/2001
