mode) facilitate communication between the MAX5548
and the master. The serial interface remains active
in shutdown.
I 2 C Compatibility (SPI/
I2C
= GND)
The MAX5548 is compatible with existing I 2 C systems
( Figure 2). SCL and SDA are high-impedance inputs;
SDA has an open-drain output that pulls the data line
low during the ninth clock pulse. SDA and SCL require
pullup resistors (2.4k
Ω or greater) to V
DD . Optional
resistors (24
Ω) in series with SDA and SCL protect the
device inputs from high-voltage spikes on the bus lines.
Series resistors also minimize crosstalk and undershoot
of the bus signals. The communication protocol sup-
ports standard I
2 C 8-bit communications. The device’s
address is compatible with 7-bit I 2 C addressing proto-
col only. Ten-bit address formats are not supported.
Only write commands are accepted by the MAX5548.
Note: I 2 C readback is not supported.
Bit Transfer
One data bit transfers during each SCL rising edge.
The MAX5548 requires nine clock cycles to transfer
data into or out of the DAC register. The data on SDA
must remain stable during the high period of the SCL
clock pulse. Changes in SDA while SCL is high are
read as control signals (see the START and STOP
Conditions section). Both SDA and SCL idle high.
START and STOP Conditions
The master initiates a transmission with a START condi-
tion (S), (a high-to-low transition on SDA with SCL high).
The master terminates a transmission with a STOP con-
dition (P), (a low-to-high transition on SDA while SCL is
high) (Figure 3). A START condition from the master sig-
nals the beginning of a transmission to the MAX5548.
The master terminates transmission by issuing a STOP
condition. The STOP condition frees the bus.
If a repeated START condition (S r ) is generated instead
of a STOP condition, the bus remains active.
MAX5548
Dual, 8-Bit, Programmable, 30mA
High-Output-Current DAC
_______________________________________________________________________________________ 9
+1.25V
REFERENCE
I FSADJ
R FSADJ
FSADJ_ OUT_
V DD
GND
CURRENT-SOURCE
ARRAY DAC

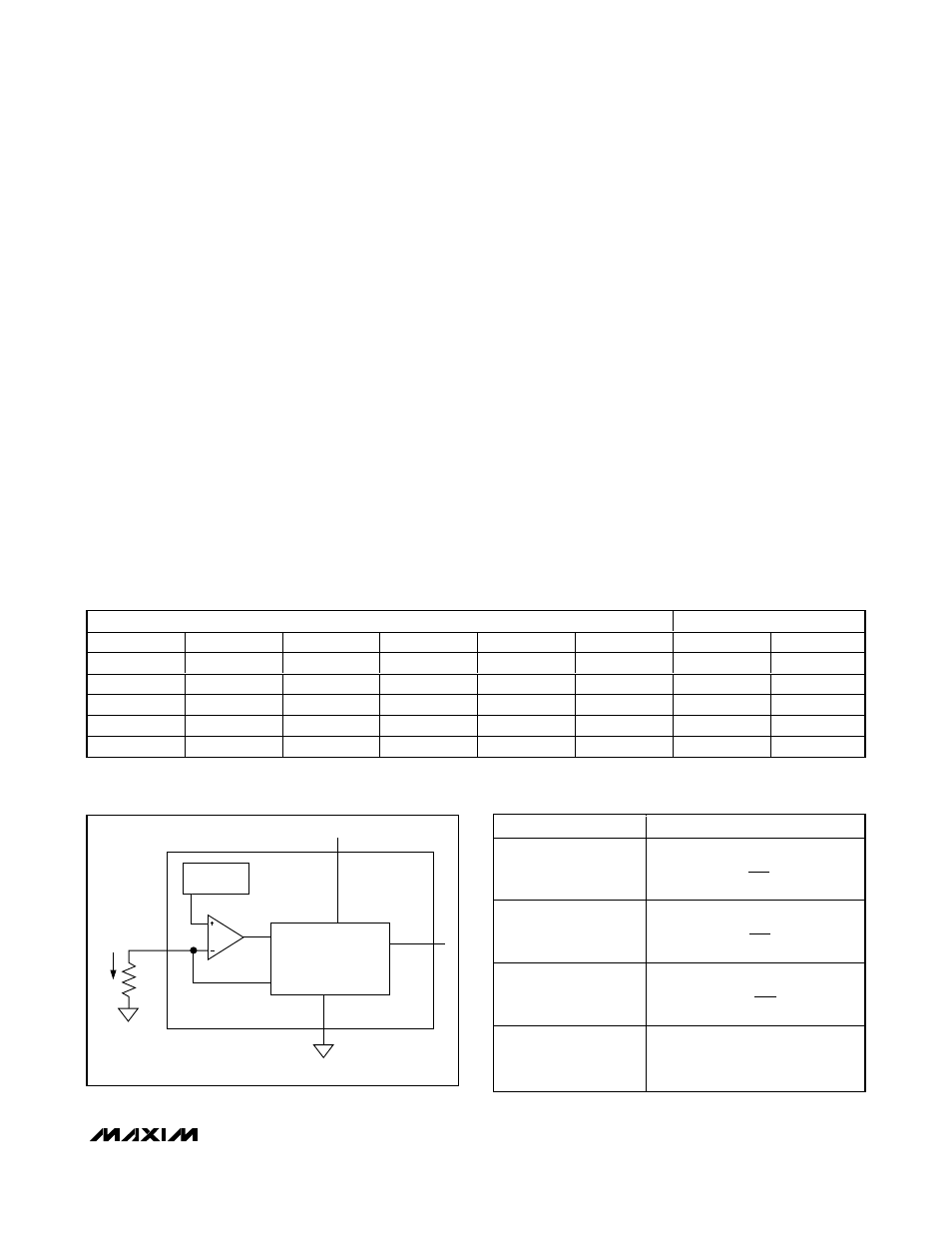

Figure 1. Reference Architecture and Output Current Adjustment
FULL-SCALE OUTPUT CURRENT (mA)* R FSADJ (k Ω)
1mA–2mA 1.5mA–3mA 2.5mA–5mA 4.5mA–9mA 8mA–16mA 15mA–30mA Calculated 1% EIA Std.
1.00 1.500 2.500 4.500 8.00 15.00 40 40.2
1.25 1.875 3.125 5.625 10.00 18.75 35 34.8
1.50 2.250 3.750 6.750 12.00 22.50 30 30.1
1.75 2.625 4.375 7.875 14.00 26.25 25 24.9
2.00 3.000 5.000 9.000 16.00 30.00 20 20.0
Table 1. Full-Scale Output Current and R FSADJ_ Selection Based on a +1.25V (typ)
Reference Voltage
*See the command summary in Table 4.
DAC CODE I OUT _
1111 1111
1000 0000
0000 0001*
0000 0000 0
Table 2. DAC Output Code Table
255
256
× −
I
I
FS
OS
| |
128
256
× −
I
I
FS
OS
| |
256
−
I
I
FS
OS
| |
*Negative output current values = 0.
