MAX15031

80V, 300mW Boost Converter and Current
Monitor for APD Bias Applications

10

______________________________________________________________________________________

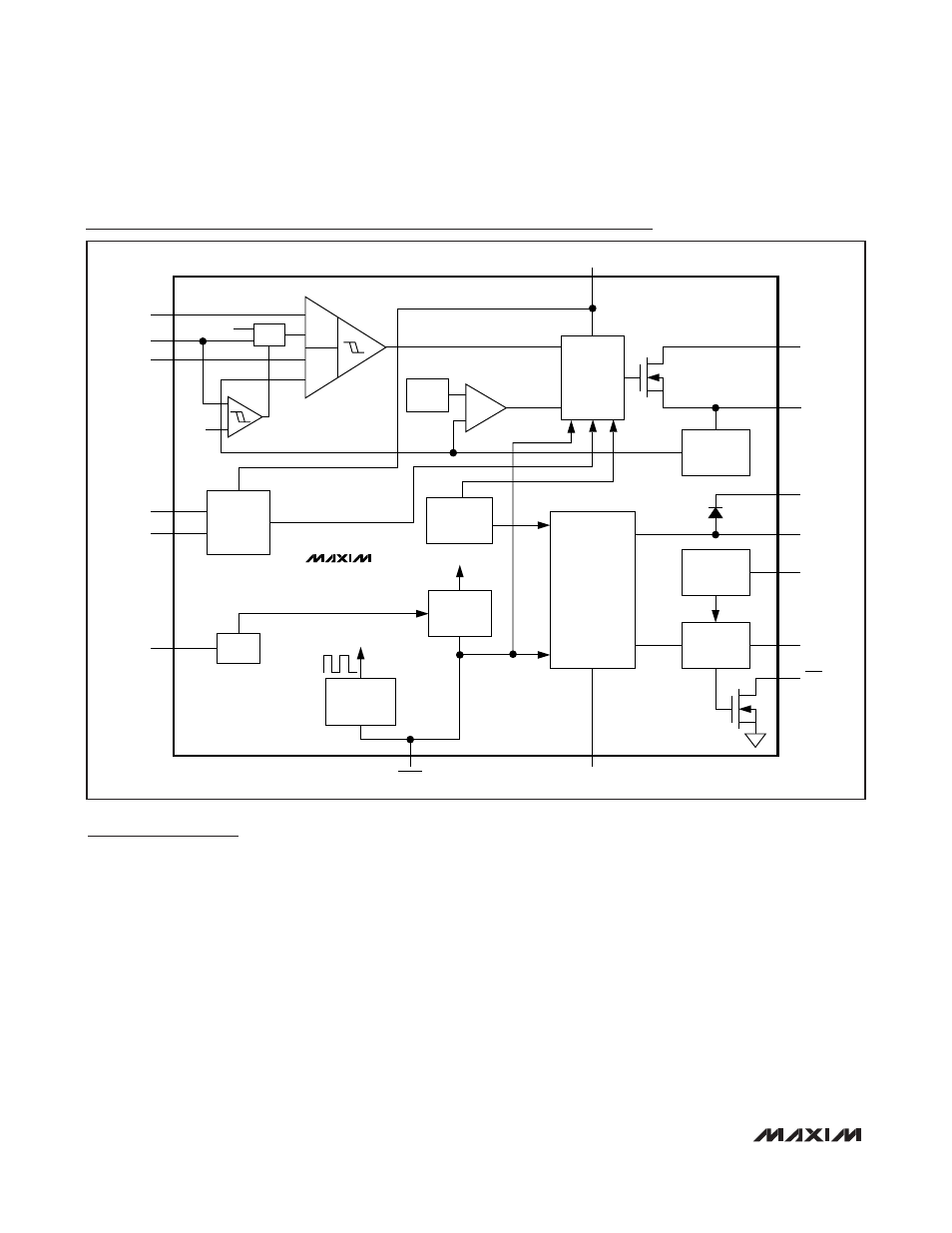

Functional Diagram

80V
DMOS

+A

-C

-A

+C

CLK

V

REF

V

REF

SHDN

BIAS

V

REF

LX

ILIM

PWR

PGND

RLIM

MOUT

1x

APD

FB

SGND

CNTRL

CN

CP

IN

SWITCH

CONTROL

LOGIC

SOFT-

START

OUTPUT ERROR AND CURRENT
COMPARATOR

REFERENCE
COMPARATOR

CURRENT
MONITOR

OSCILLATOR

400kHz

CHARGE

PUMP

(DOUBLER)

BIAS AND

REFERENCE

THERMAL

SHUTDOWN

SWITCH

CURRENT

SENSE

CURRENT-

LIMIT

ADJUSTMENT

UVLO

CURRENT

LIMIT

MUX

PEAK CURRENT-LIMIT

COMPARATOR

CLAMP

10x

MAX15031

Detailed Description

The MAX15031 constant-frequency, current-mode, PWM
boost converter is intended for low-voltage systems that
require a locally generated high voltage. This device can
generate a low-noise, high output voltage required for
PIN and varactor diode biasing and LCD displays. The
MAX15031 operates either from +2.7V to +5.5V or from
+5.5V to +11V. For 2.7V to 5.5V operation, an internal
charge pump with an external 10nF ceramic capacitor is
used. For 5.5V to 11V operation, connect CP to IN and
leave CN unconnected.

The MAX15031 operates in discontinuous mode in
order to reduce the switching noise caused by reverse-
voltage recovery charge of the rectifier diode. Other
continuous mode boost converters generate large volt-
age spikes at the output when the LX switch turns on

because there is a conduction path between the out-
put, diode, and switch to ground during the time need-
ed for the diode to turn off and reverse its bias voltage.
To reduce the output noise even further, the LX switch
turns off by taking 10ns typically to transition from ON
to OFF. As a consequence, the positive slew rate of the
LX node is reduced and the current from the inductor
does not “force” the output voltage as hard as would
be the case if the LX switch were to turn off faster.

The constant-frequency (400kHz) PWM architecture
generates an output voltage ripple that is easy to filter.
An 80V vertical DMOS device used as the internal
power switch is ideal for boost converters with output
voltages up to 76V. The MAX15031 can also be used in
other topologies where the PWM switch is grounded,
like SEPIC and flyback converters.
