10 / LM5/LM5D & AM6
PPM PAGE
Press the “PPM” key to bring up the PPM display, Fig. 7. The PPM page is used to
inspect balance between channels, headroom, overload of channels etc.

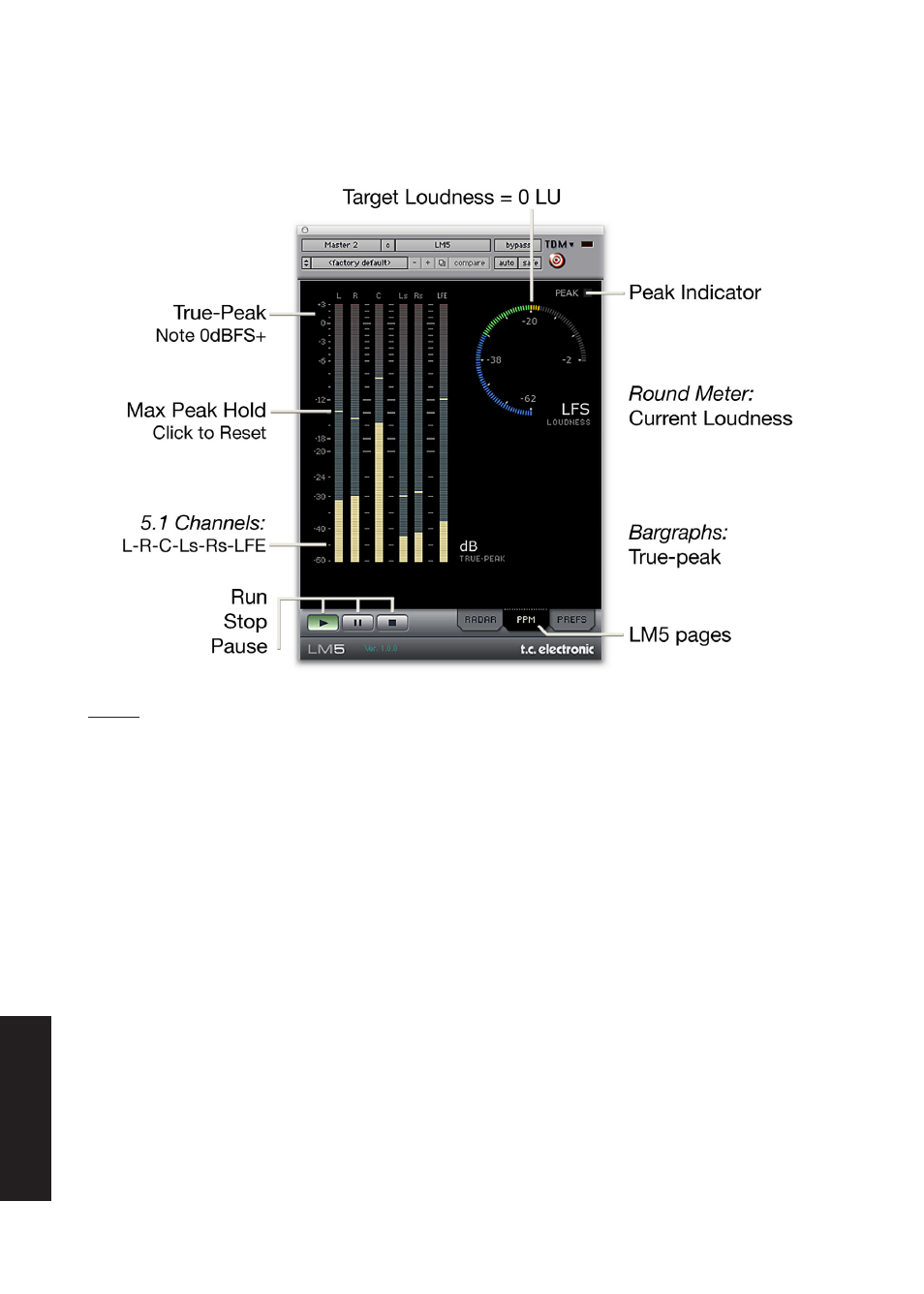

Fig. 7, PPM True-peak meter features.
Bargraph PPM meters are shown next to the round Current Loudness display, which
is identical to the Outer Ring of the Radar page. The True-peak meters operate
regardless of the status of the Run/Stop/Pause controls. Click on the bargraphs to
reset the peak history.
