Setting Up 9381 Network Remote Control
2-6 9381 PRODUCT MANUAL 9381-OM (V4.3)
Setting Up 9381 Network Remote Control
Perform remote control setup in accordance with Cobalt ® reference guide
“COMPASS™ Remote Control User Guide” (PN 9000RCS-RM).
Note: • If network remote control is to be used for the frame and the frame has not
yet been set up for remote control, Cobalt ® reference guide COMPASS™
Remote Control User Guide (PN 9000RCS-RM) provides thorough infor-
mation and step-by-step instructions for setting up network remote control of
COMPASS™ cards using DashBoard™. (Cobalt
® OGCP-9000 and
OGCP-9000/CC Remote Control Panel product manuals have complete
instructions for setting up remote control using a Remote Control Panel.)
Download a copy of this guide by clicking on the
Support>Reference Documents link at www.cobaltdigital.com and then
select DashBoard Remote Control Setup Guide as a download, or contact
Cobalt
® as listed in Contact Cobalt Digital Inc. (p. 1-18).
• If installing a card in a frame already equipped for, and connected to
DashBoard™, no network setup is required for the card. The card will be dis-
covered by DashBoard™ and be ready for use.

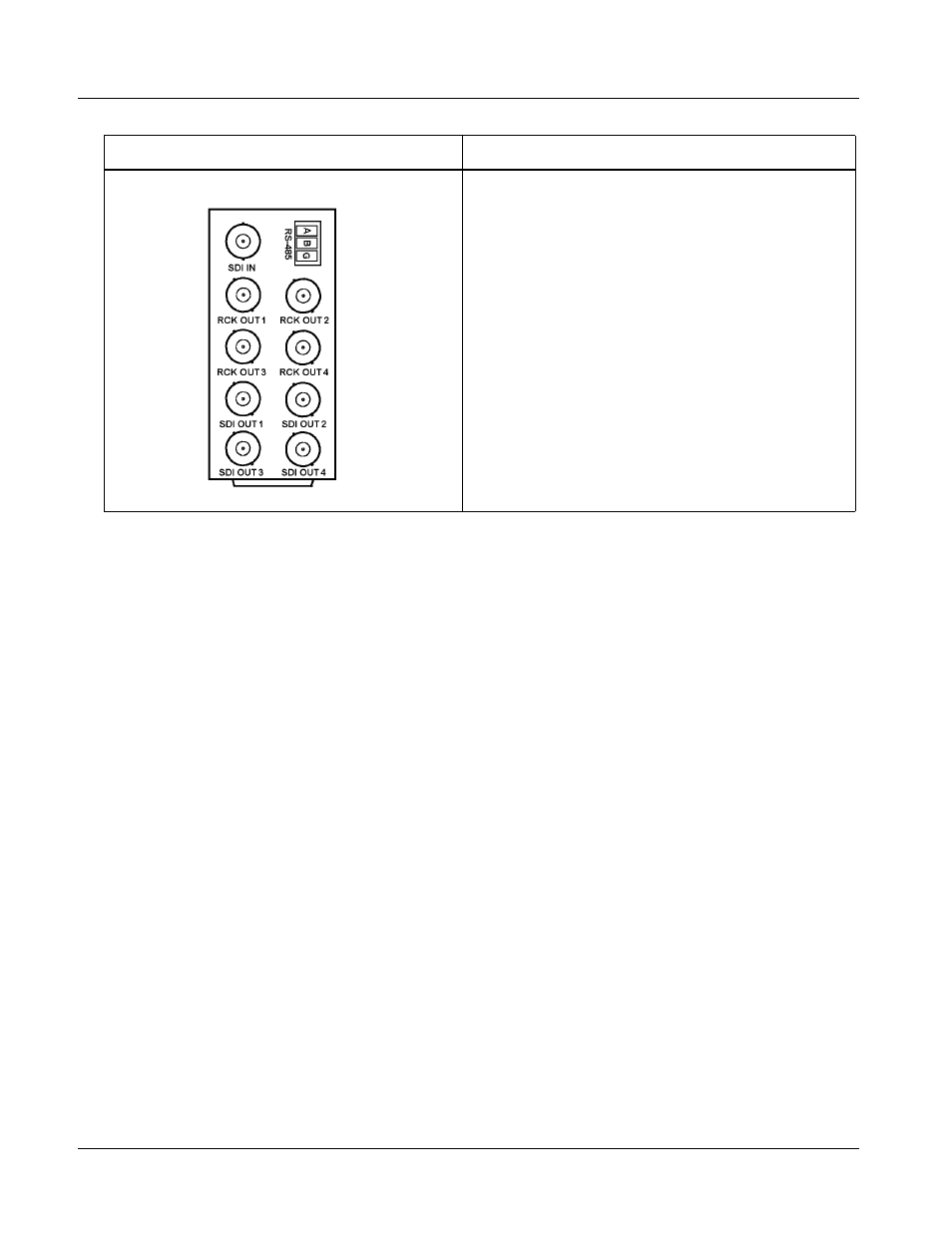

RM20-9381-B Provides the following connections:
• HD/SD-SDI coaxial input (SDI IN)
• Four reclocked SDI input copies (RCK OUT 1- 4)
• Four buffered SDI coaxial outputs (SDI OUT 1- 4)
• RS-485 LTC input/output (RS-485)
Table 2-1 9381 Rear I/O Modules — continued
9381 Rear I/O Module Description
