3
Troubleshooting
3-32 9381 PRODUCT MANUAL 9381-OM (V4.3)
9381 Card Edge Status/Error Indicators and Display
Figure 3-6 shows and describes the 9381 card edge status indicators and
display. These indicators and the display show status and error conditions
relating to the card itself and remote (network) communications (where
applicable). Because these indicators are part of the card itself and require no
external interface, the indicators are particularly useful in the event of
communications problems with external devices such as network remote
control devices.

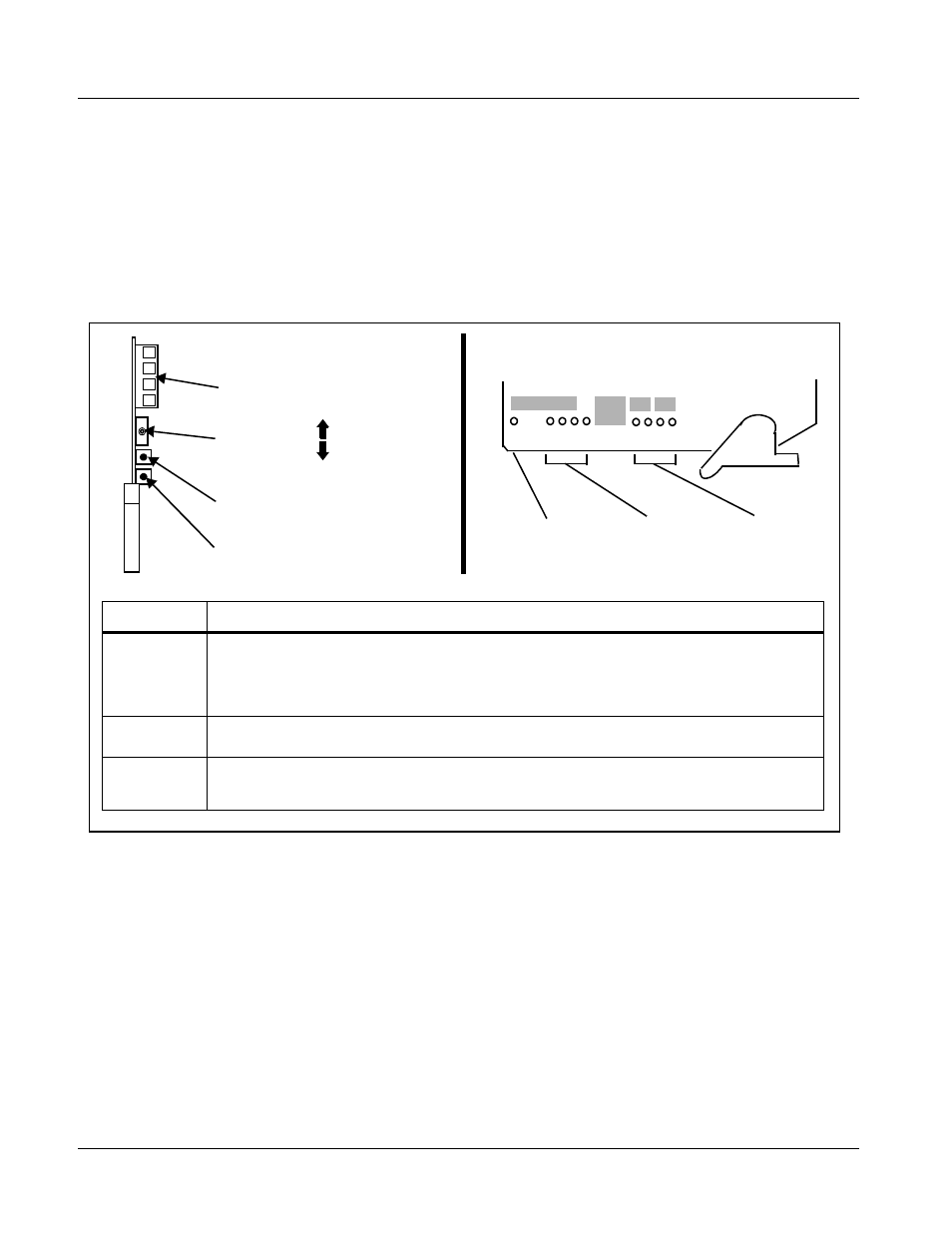

Figure 3-6 9381 Card Edge Status Indicators and Display
Item Function
Alphanumeric
Display Displays 4-digit alphanumeric code indicating status or errors as follows:
• E0XX: Video Errors
• E002: Video Acquiring Lock
• E1XX: Audio Errors
RMT LED Blue LED flashes when card is receiving control message from remote network control (e.g., DashBoard™ or
Cobalt
® Remote Control Panel)
Input Format
LEDs Four blue LEDs indicate the input signal raster format being received and locked onto by the card (1080, 720,
625, 525). Continuous cycling of the LEDs indicates the card has not locked onto a particular format (as in
the case of no signal input).
4-Character Alphanumeric Display
Menu Selection Toggle Switch
Exit Submenu Pushbutton
Enter Submenu Pushbutton
RM
T
1
080
72
0
62
5
52
5 MENU DEPTH
Input Format
Indicators
Menu Depth
Indicators
RMT
Indicator
