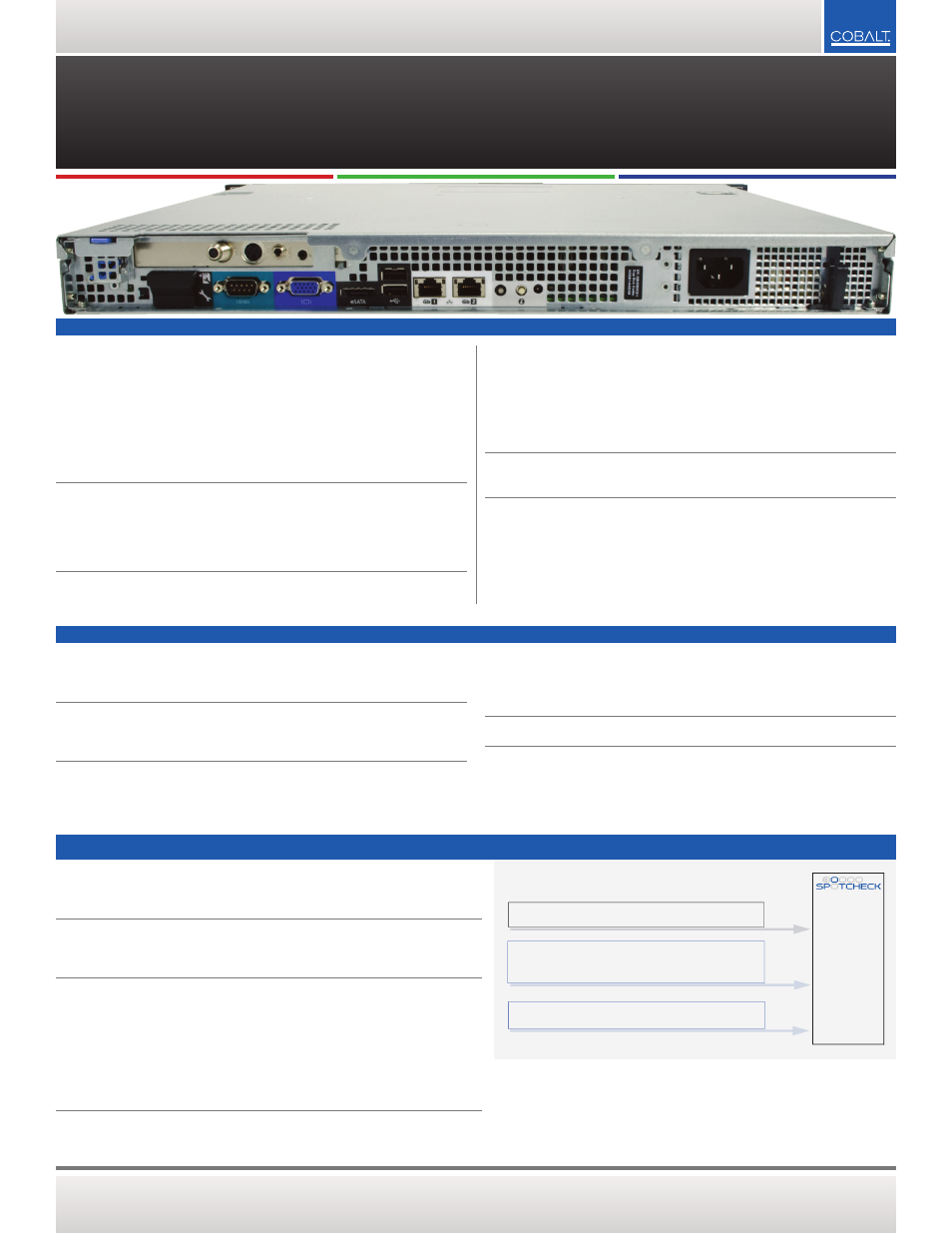

+ (1) SPOTCHECK-LICENSE-AUDIO-FULL
+ (1) SPOTCHECK-LICENSE-AUDIO-SUBPROGRAM
+ (1) SPOTCHECK-LICENSE-AUDIO-LITE
SpotCheck-1000-IP
Includes one SPOTCHECK-LICENSE-AUDIO-FULL. Provides complete program analysis for one
program (one video PID plus two audio PIDs)
Adds complete program analysis for second program .2 (one video PID plus two audio PIDs)
Adds an additional audio subprogram (one audio PID) to program .2
Adds basic program analysis for third program .3 (one video PID plus one audio PID). Omits as-run
support for this program.
Program .1
(1 vid PID, 2 aud PIDs)
Program .2
(1 vid PID, 3 aud PIDs)
Program .3
(1 vid PID, 1 aud PID
basic analysis)
SpotCheck ® Licensing
Adding licenses to SpotCheck ® allows scalable provisioning above the standard capacity as
shown in this example.
〉〉 ADDITIONAL PROGRAM LICENSES
〉〉 ORDERING INFORMATION
〉〉 SPECIFICATIONS
SPOTCHECK® 〉〉 TRANSPORT STREAM COMPLIANCE MONITOR
Physical
SpotCheck-1000
Power: 120/240 VAC, 50/60 Hz, 200 W (max)
Size: 1RU
Depth required: 24 in (61 cm) minimum
SpotCheck-2000
Power: 120/240 VAC, 50/60 Hz, 350 W (max)
Size: 1RU
Depth required: 24 in (61 cm) minimum
Transport Interface
SpotCheck-IP: GigE (1000 Base-T) via RJ-45
SpotCheck-ASI: ASI, 75 Ω BNC input
SpotCheck-OTA: 8VSB (RF), female F-connector input
See Ordering Information for port complements and other information.
Loudness Measurement
ATSC A/85 –24 LKFS, EBU R128 –23 LUFS
Formats Supported
Transport: MPEG over IP or ASI, UDP, RTP, SMPTE 2022, FEC wrappers
Multicast: Supports IPV4 multicast and IGMPv2 multicast management
Audio Codecs Supported: Dolby® Digital (AC-3), Dolby® Digital Plus (E-AC-3)
Video Codecs Supported: MPEG2
As-run import:
Imports as-run data from common automation systems via
Windows Share or drop/drag into program as-run folders
Control/Monitor Interface
HTML5 web browser via dedicated 10/100/1000 Ethernet port.
Storage Capacity (per SpotCheck® Unit)
SpotCheck-1000, SpotCheck-2000
12 months
SPOTCHECK®-1000-IP ATSC A/85 Compliance Monitor for IP Transport Streams. 1 Con-
trol IP Port, 1 Media IP Port. Includes one license of SPOTCHECK-LICENSE-AUDIO-FULL.
Maximum capacity of four programs. 12-month analysis storage.
SPOTCHECK®-1000-ASI ATSC A/85 Compliance Monitor for ASI Transport Streams - 1
Control IP Port, 1 ASI Input Port. Includes one license of SPOTCHECK-LICENSE-AUDIO-
FULL. Maximum capacity of four programs. 12-month analysis storage.
SPOTCHECK®-1000-OTA ATSC A/85 Compliance Monitor for OTA Transport Streams - 1
Control IP Port, 1 RF Input for over-the-air reception. Includes one license of SPOTCHECK-
LICENSE-AUDIO-FULL. Maximum capacity of four programs. 12-month analysis storage.
SPOTCHECK®-2000 ATSC A/85 Compliance Monitor for IP Transport Streams - 1 Control IP
Port, 5 Media IP Ports (ASI support available using option OPT-ASI; 1 ASI port max.). Includes
four licenses of SPOTCHECK-LICENSE-AUDIO-FULL. Maximum capacity of 16 programs. 1RU.
PSU redundancy. Dual power RAID hard drive configuration. 12-month analysis storage.
OPT-ASI Adds a 75 Ω BNC ASI input and setup interface to any SpotCheck model.
OPT-OTA Adds an RF OTA input and setup interface to any SpotCheck model.
SPOTCHECK®-LICENSE-AUDIO-FULL Complete program analysis for one program (1 video
PID plus 2 audio PIDs). Each optional additional license adds complete analysis for one
program.
SPOTCHECK®-LICENSE-AUDIO-LITE Program analysis for one program (1 video PID plus
1 audio PID), but omits As-Run support. Available for all SpotCheck®-1000 and Spot-
Check®-2016.
SPOTCHECK®-LICENSE-AUDIO-SUBPROGRAM Adds an additional audio subprogram (one
audio PID, such as DVS or SAP) to a FULL or LITE program license. (Available only in conjunc-
tion with an already-provisioned SpotCheck®-LICENSE-AUDIO-FULL or SpotCheck®-LICENSE-
AUDIO-LITE program license.)
SPOTCHECK®-LICENSE-QUALITYCHECK Adds CEA 708/608 presence detect and stream/
program quality checks. (Option is available on a unit basis (one license (max.); adds QUALI-
TYCHECK to entire unit, with all transport streams accommodated).
SPOTCHECK®-LICENSE-AIRCHECK Adds transport stream lo-res proxy download. (Option is
available on a per-program basis).
