MANUAL LOADER CHAPTER 6
6-63
Ball Handle Adaptor
Wrenches featuring a ball handle are fixtured using the ball handle reaction adaptor shown in
Figure 6-4. Install the adaptor onto the reaction slide using both reaction pins. Fix the adaptor
height with the threaded knob.

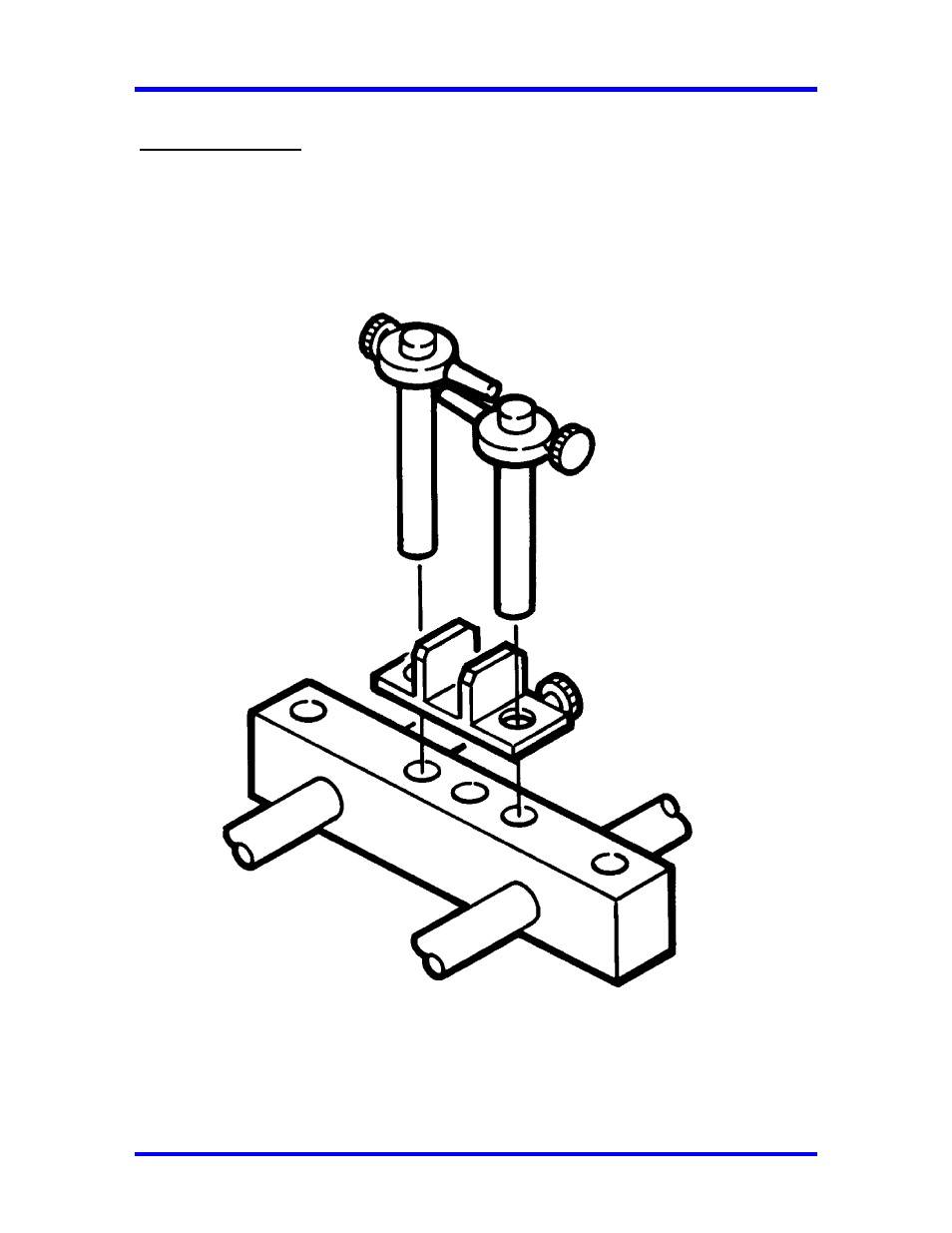

Figure 6-4: Ball Handle Adaptor
