FUNCTIONAL DESCRIPTIONS AND SPECIFICATIONS CHAPTER 2
Rear Panel (Input/Output)

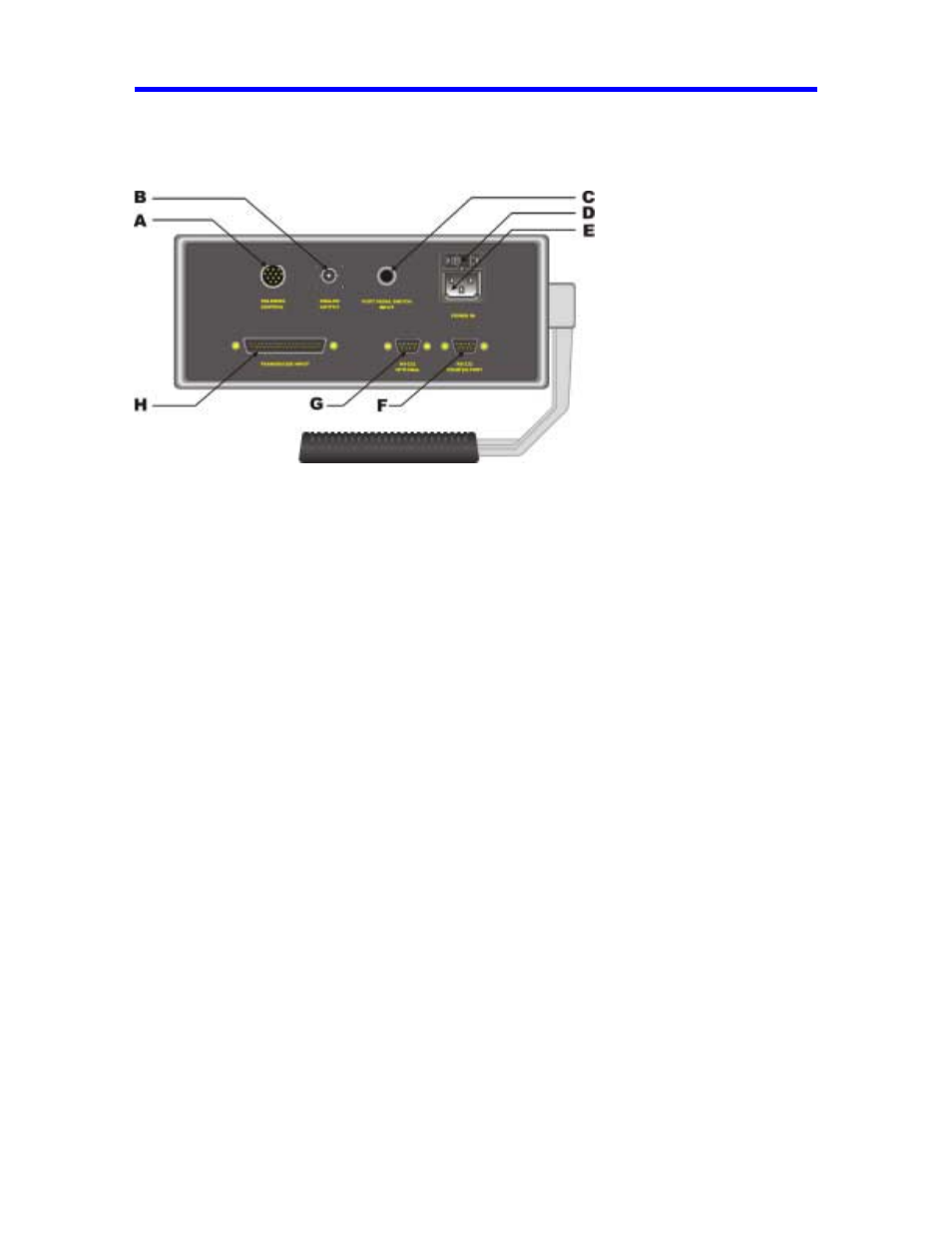

Figure 2-5: SURETEST Rear Panel
A- SOLENOID CONTROL (Hirose RM15TRD-12S)
PIN FUNCTION
10
Loader Relay Common
11 Loader Relay CCW Limit
12 Loader Relay CW Limit
B ANALOG OUTPUT (BNC)
Analog output provides a voltage level output that is directly proportional to transducer input,
from -1.8V (full scale counter clockwise) to +1.8V (full scale clockwise). Zero offset +/-100 mV.
Linearity +/-1% of reading. Maximum load = 5 mA.
When using the 4-in-1 transducer, zero output fluctuates until one of the transducers is
scan selected by applying 5% of full scale torque.
C- Foot Pedal Switch Input
D-
Fuse Holder
Use AC fuse at specified rating only. ( 3.15 Amp).
E- INPUT AC VOLTAGE
Automatic Selection of any AC voltage from 100VAC to 230VAC, 50-60 Hz.
