Large GSI Logo Field Assembly
and Installation Instructions
Installations Instructions
1. Construct MIS-7011 (A) and MIS-7010 (B) by using bolts (S-275) (E) and nuts (S-396) (F).
NOTE: Do NOT fully tighten bolts.
2. Before you place brackets (C and D) on logo assembly,
to place brackets.
3. Place sign on brackets.
4. Finish by fully tightening bolts.

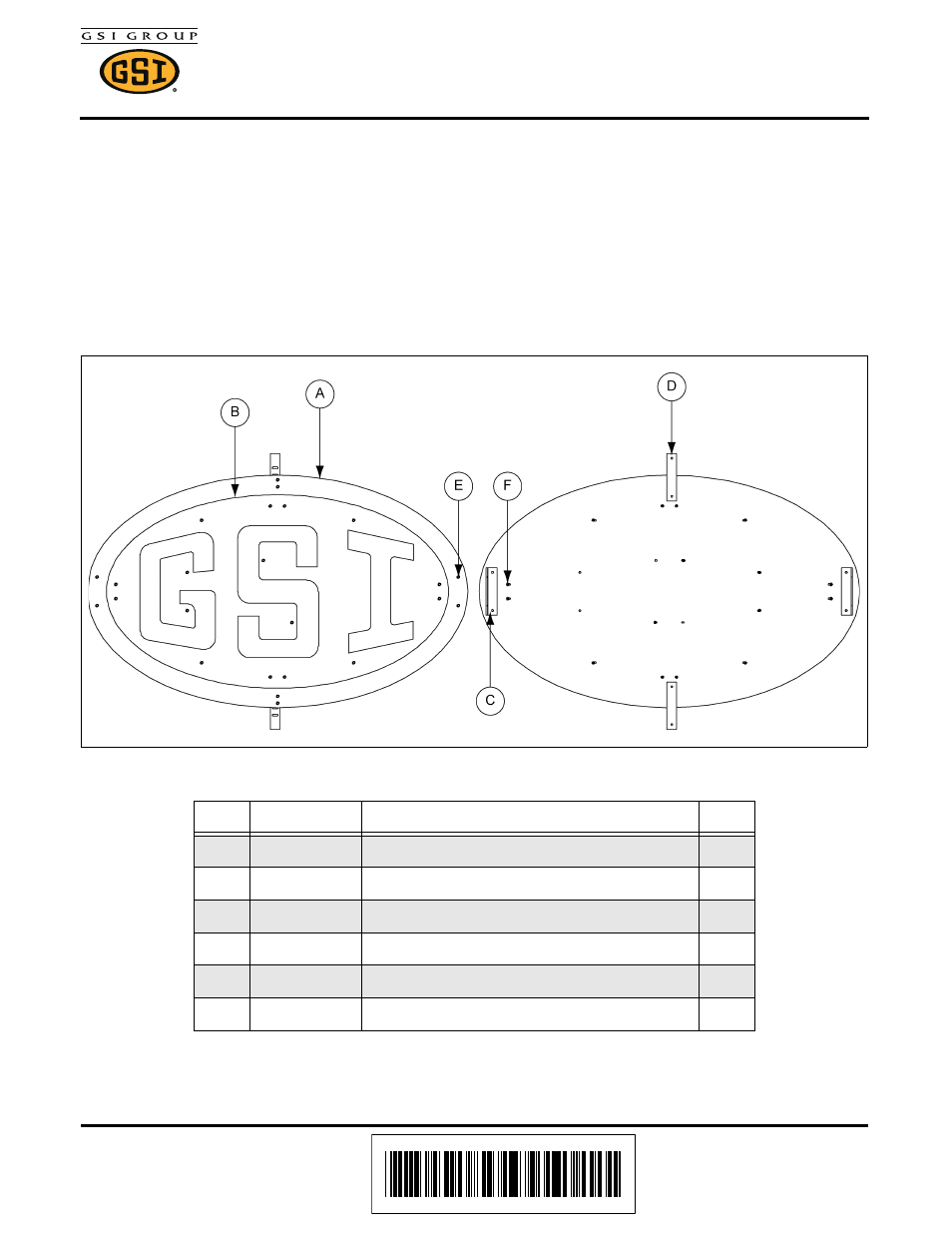

Figure 1
Ref #
Part #
Description
Qty
A
MIS-7011
Large GSI Logo Background
1
B
MIS-7010
Large GSI Logo Front
1
C
MIS-7013
Large GSI Logo Side Bracket
2
D
MIS-7014
Large GSI Logo Side Bracket
2
E
S-275
Bolt, HH Bin 5/16"-18 x 3/4" YDP Grade 5
24
F
S-396
Hex Nut 5/16"-18 YDP Grade 2
24
