PNEG-911 Page 3 of 4
Manual Roof Vent Instruction Sheet

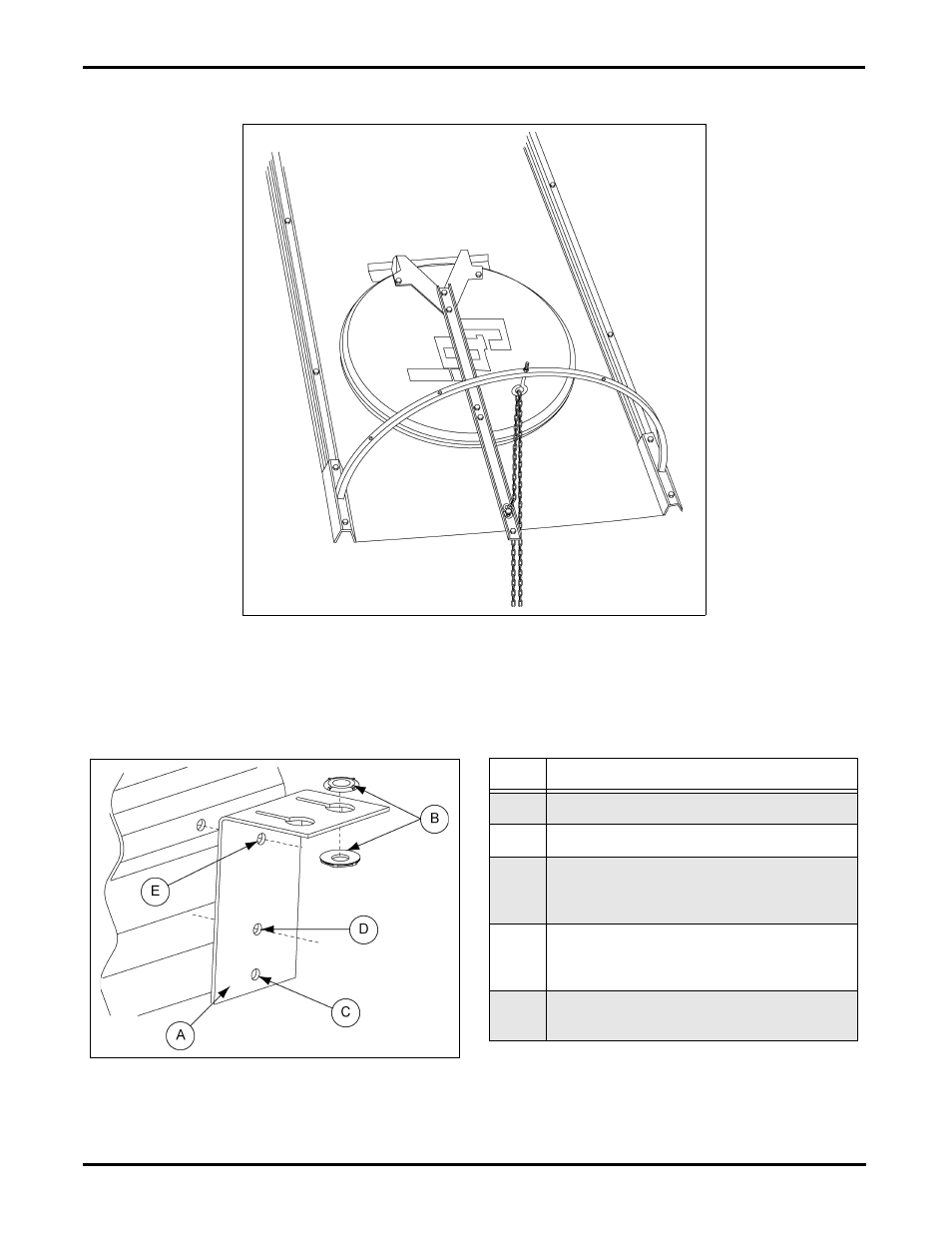

Completed Lid Assembly
Figure 5
Chain Holder Brackets Assembly
Two (2) piece threaded nylon bushing (BLK-11876) (B) place one in each hole. (See Figure 6.)
Figure 6
Ref # Description
A Chain Holder Bracket (MIS-6890)
B Nylon Bushings (BLK-11876)
C
Hole used with 4" sidewall corrugation
(field drill hole in sidewall). Use 5/16" x 3/4"
bolt and 5/16" nut to fasten.
D
Hole used with 2.66" sidewall corrugation
(field drill hole in sidewall). Use 5/16" x 3/4"
bolt and 5/16" nut to fasten.
E
Top hole connects to pre-existing sidewall
horizontal seam hole.
