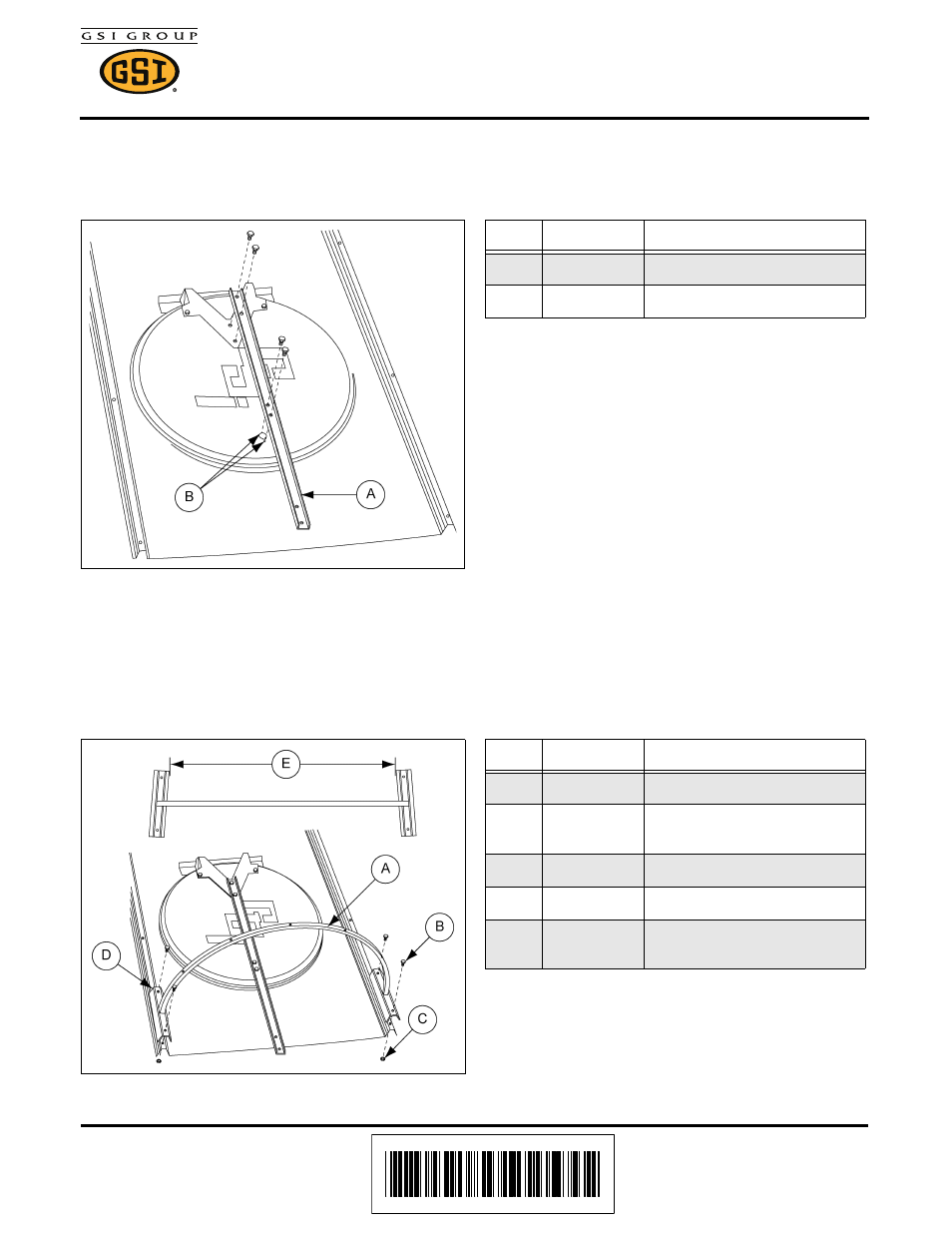

Manual Roof Vent Instruction Sheet
STEP 1: Placement of manual roof vent lid bracket assemble manway as denoted in the roof manual
(PNEG-030).
Attach lid bracket with 5/16" x 3/4" bolts (S-275) and 5/16"-18 nuts (S-396). (See Figure 1.)
Figure 1
STEP 2: Placement of manual roof vent hoop.
Attach brackets with 5/16"-18 x 1-1/4" bolts (S-277) (B) and 5/16"-18 nuts (S-396) (C).
Secure one bracket to rib, then fasten other side. bottom hole in bracket bolts to bottom hole in
roof panel rib.
(See Figure 2.)
Figure 2
Ref # Part # Description
A MIS-6887 Manual Vent Lid Bracket
B Field Drill Holes to 3/8" Diameter
Ref # Part # Description
A MIS-6886 Manual Vent Hoop
B S-277
Bolt, HHBIN 5/16"-18 x 1-1/4"
YDP Grade 5
C S-396 Hex Nut 5/16"-18 YDP Grade 2
D Field Drill 3/8" Hole in Roof Rib
E
Narrow end of brackets are to be
positioned towards manway.
