Weather cover assembly – Grain Systems Tanks PNEG-972 User Manual
Page 81
11. Accessory Instructions
PNEG-972 Construction Manual for 2.66" Corrugation 105' Diameter Tall Tanks (28 Rings and Taller)
81

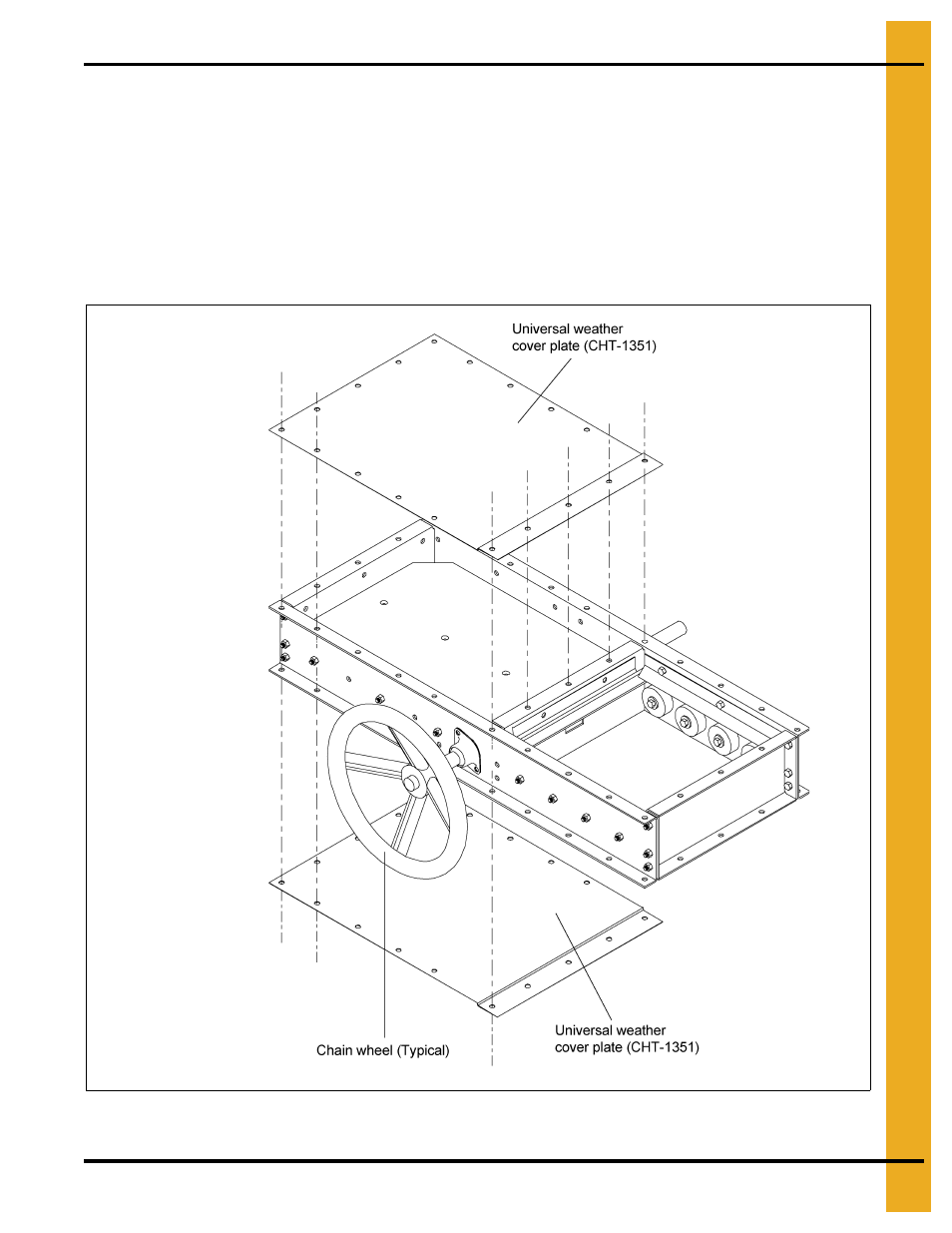

Weather Cover Assembly
Weather Cover Assembly Instructions for Roller Valve
1. Install weather cover kit after gate has been installed.
2. Use bead caulking at all seams where weather cover attaches to gate.
3. Use 5/8" x 3/4" bolts and nuts to plug all holes not in use.
4. Use 1/4" self-drillers to seal gate end plate corners.
Figure 11E
