Page 16: Ladder eave platform package
16
PNEG-1773 42'-135' “X” Series Ladder, Cage and Platform
4. Assembly Instructions
72'-135' Ladder Eave Platform Assembly
Ladder Eave Platform Package
1.

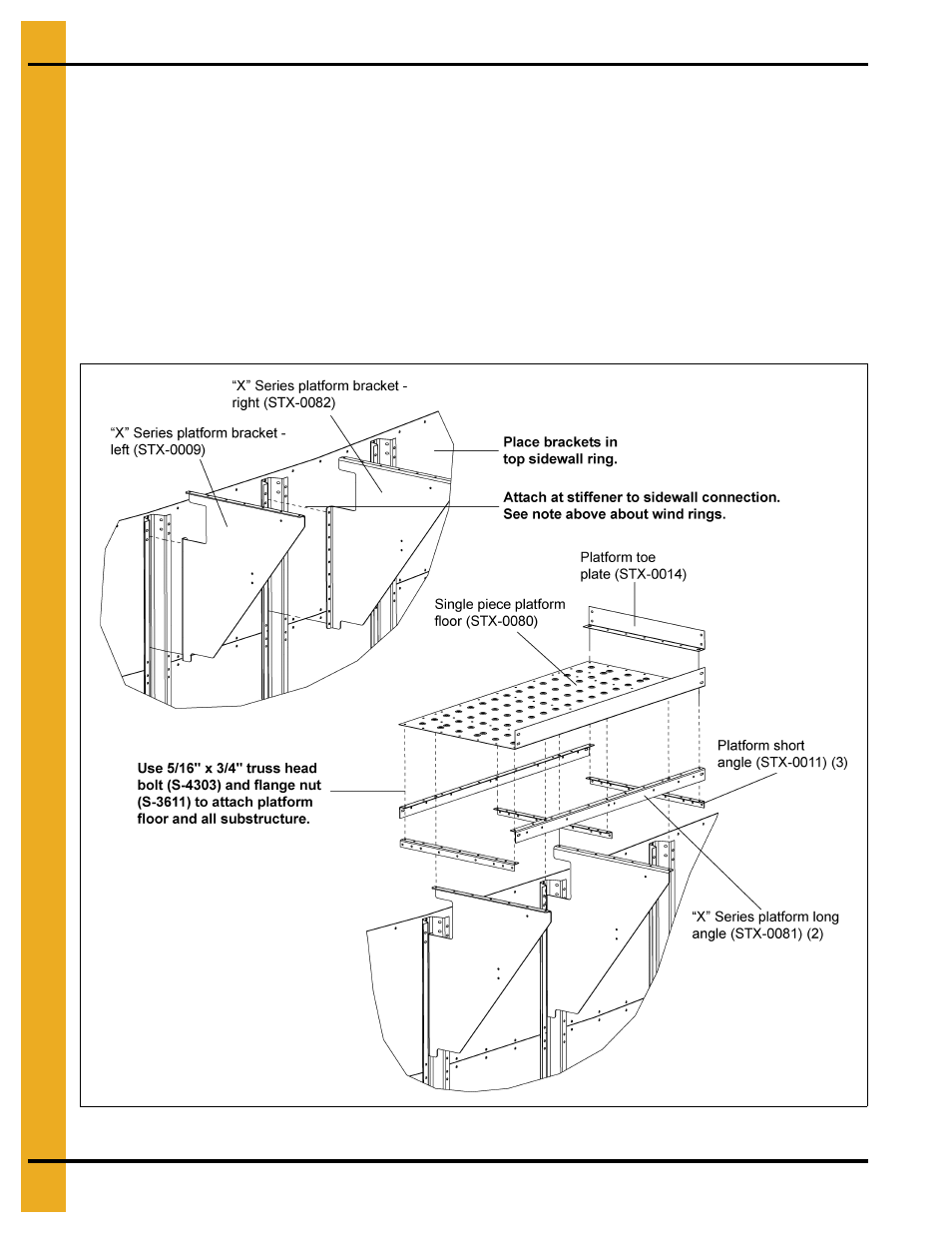

shows the assembly of the platform supports. Use 5/16" hardware at all the connection
points. (Platform floor will have to be attached at the same time as support angles.)
NOTE: When installing the top wind ring, do NOT use the top set of holes in the stiffener.
2.
shows the assembly of the platform floor system. This must all be assembled at the same
time using 5/16" hardware.
NOTE: Leave all hardware loose until completely assembled.
3. Left platform bracket must line up with stiffener, roof rib and rafter or beam if present in roof.
Figure 4A
