PNEG-223 60' Cor-Lok and Cut-Lok Flooring

5. Well Installation Cut Detail

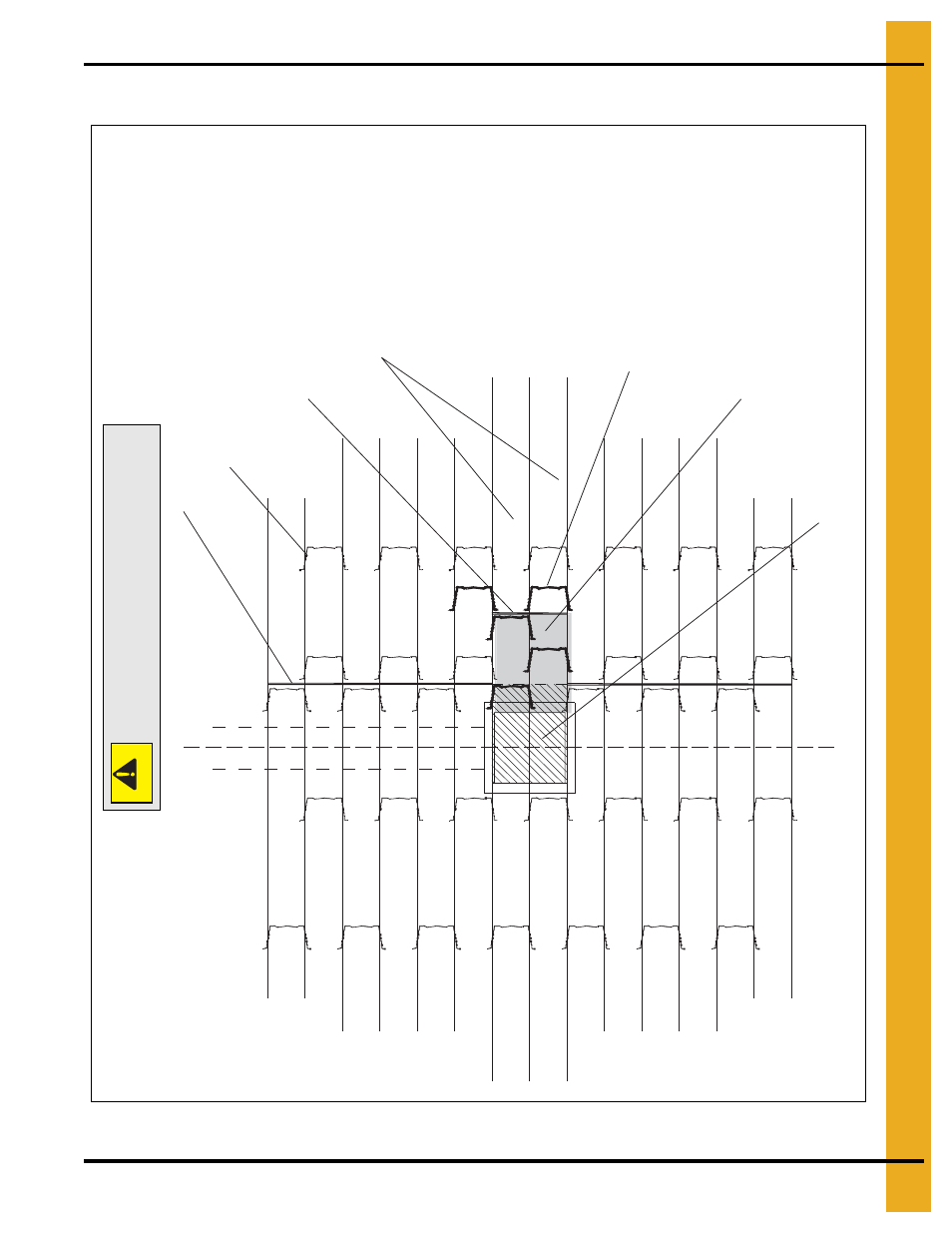

Well Installation Plank Cut Detail for 42', 48' and 60' Split Floor

Figure 5A

Cut these pieces for well installation.

See appropriate layout

for grandstand spacing.

Standard splice location

Additional grandstands

Add entire cut pieces back in here

with additional grandstands per

plank as shown.

Cut short side planks to allow

off fall of long pieces cut for well

installation to be installed

opposite the long pieces on

this side of the well as shown.

New splice at well locations

Long side

Short side

Centerline of bin

Sup

rt all ce

nter wells

rete

CAUTION
