Distributor Pipe Control - Farm/Commercial
11. Cut last section of piping to desired length and drill hole for 5/16" roll pin. Guide the last section of
control pipe through the index plate (DPC0010).
12. Attach the pipe control lever assembly (DPC0015) to the bottom of the pipe using a 5/16" x 1-3/4"
roll pin (S-8397).
13. Remove guard (DPC0022) from the control handle assembly. Guide cable through end of control
handle (DPC0016). Pull cable down with enough tension to keep cable taught, but not enough
to pull down on the distributor index assembly. Secure cable with cable clamp (not supplied).
Replace guard (DPC0022).
(See Figure 7.)

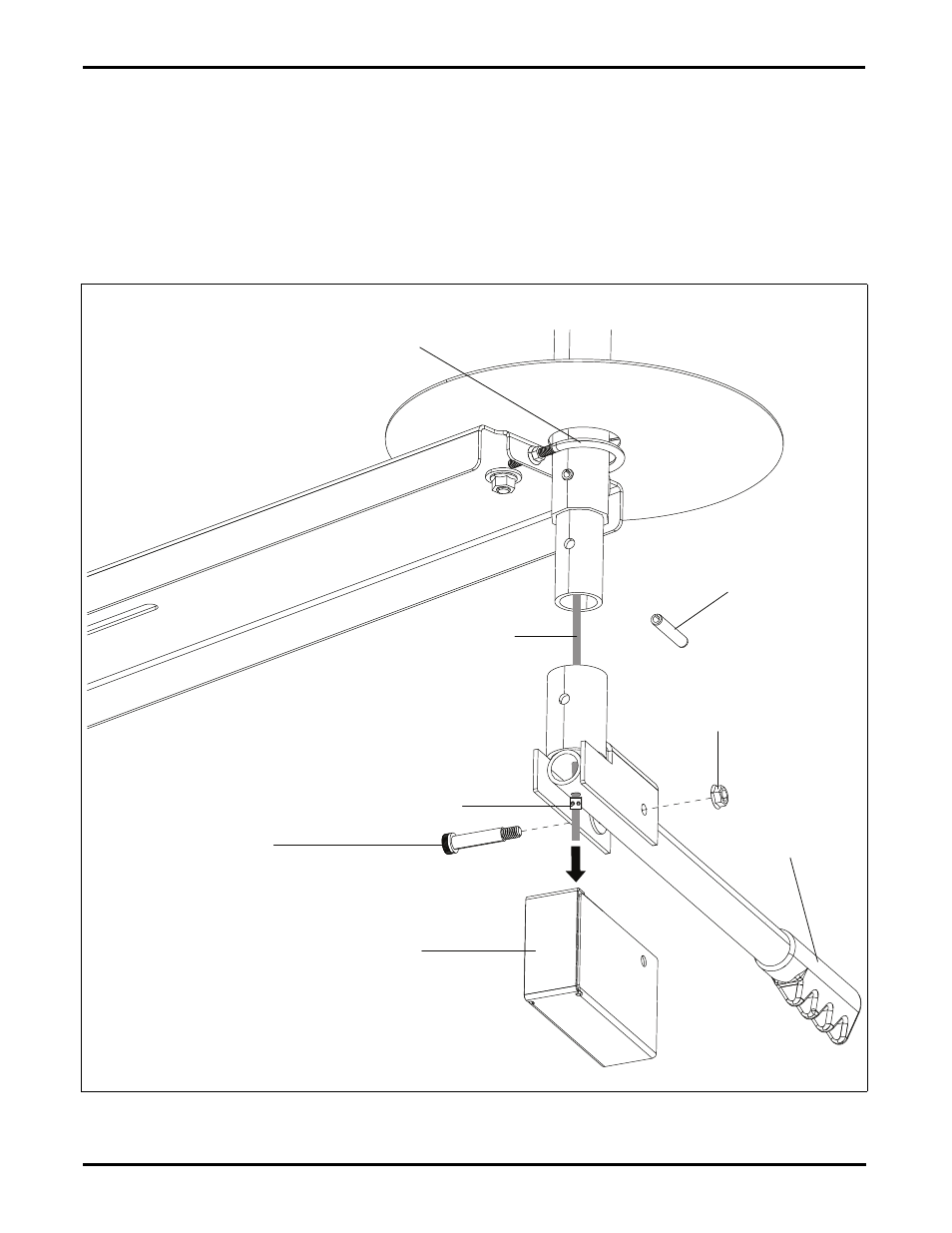

Figure 7 Bottom Cable
Cable
Cable clamp
5/16"-18 x 1-1/2"
Shoulder bolt
(S-10144)
Guard (DPC0022)
Pull
5/16" Flange
nut (S-3611)
Control handle
(DPC0016)
1/4" x 1-3/4" x 3"
U-Bolt (S-10145)
5/16" x 1-3/4"
Spring pin (S-8397)
