11. Roof Assembly
84 PNEG-4036 40 Series 33' and 36' Diameter Bins
Roof Assembly for 33' and 36' Roofs with Standard Peak Cap
(Continued)
NOTE: See Pages 82 and 83 for assembling the peak cap and slide rods.

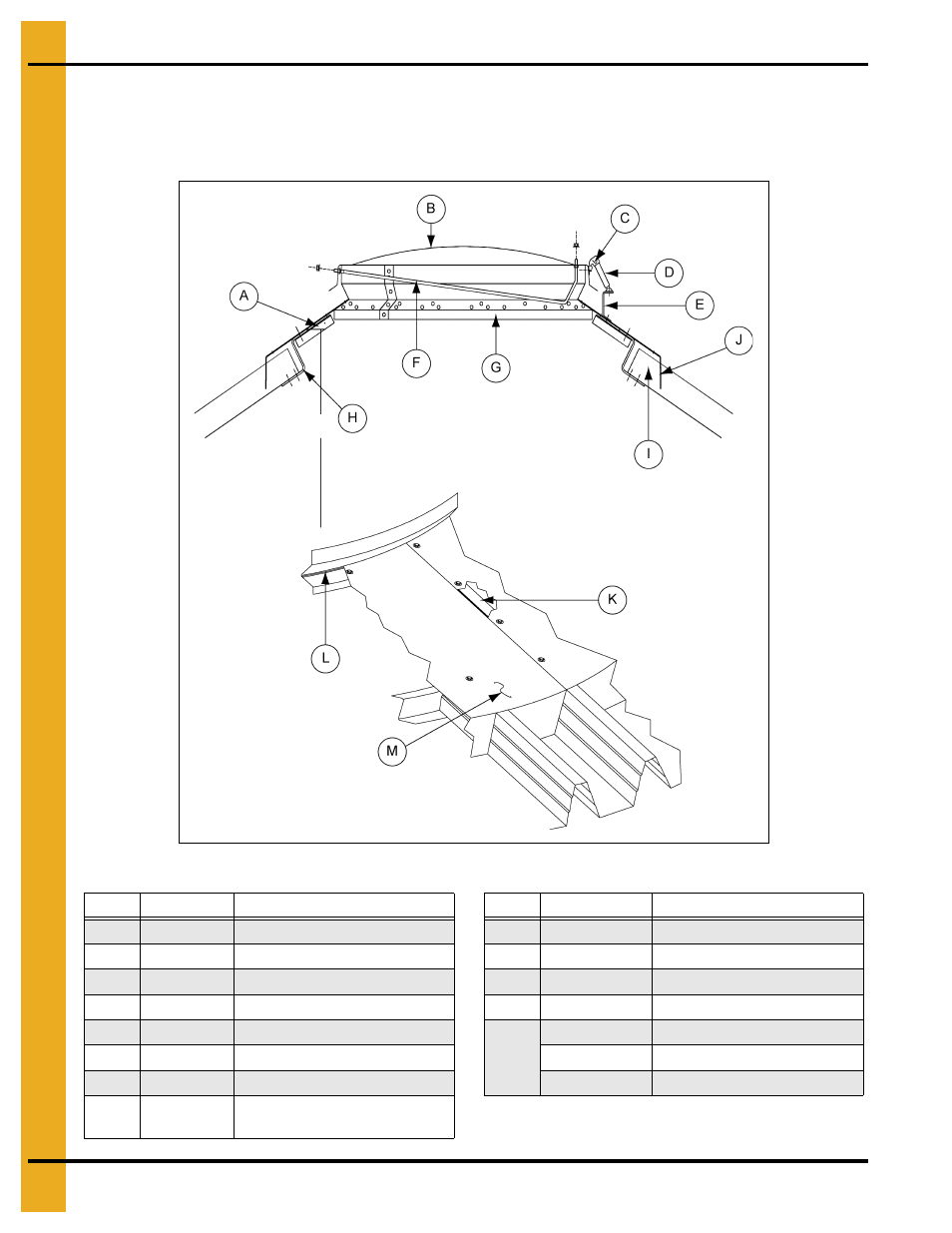

Figure 11F
Ref # Part # Description Ref # Part # Description
A CRP-6188 Flashing Reinforcement Angle I Roof Sheet
B CRP-4602 Peak Cap J Roof Flashing
C PR-331 Peak Cap Handle K Apply Caulking on Each Lap
D CRP-4654 Cap Hold-Down L Apply Caulking All Around
E CRP-4689 33' and 36' Cap Hold-Down
M
CRP-4683 33' Formed Collar Flash Right
F CRP-4606 Slide Rods (2) CRP-4690 33' Formed Collar Flash Left
G CRP-4608 Center Collar (3) CRP-4684 Roof Flashing
H CRP-4687
Intermediate Center Collar
33'-36' Roof - Green (3)
NOTE: See Page 83 for details on
which center collar holes are used
for flashing attachment.
NOTE: Install flashing after roof
panels have been placed.
