11. Roof Assembly
PNEG-4036 40 Series 33' and 36' Diameter Bins 83
Roof Assembly for 33' and 36' Roofs with Standard Peak Cap
(Continued)

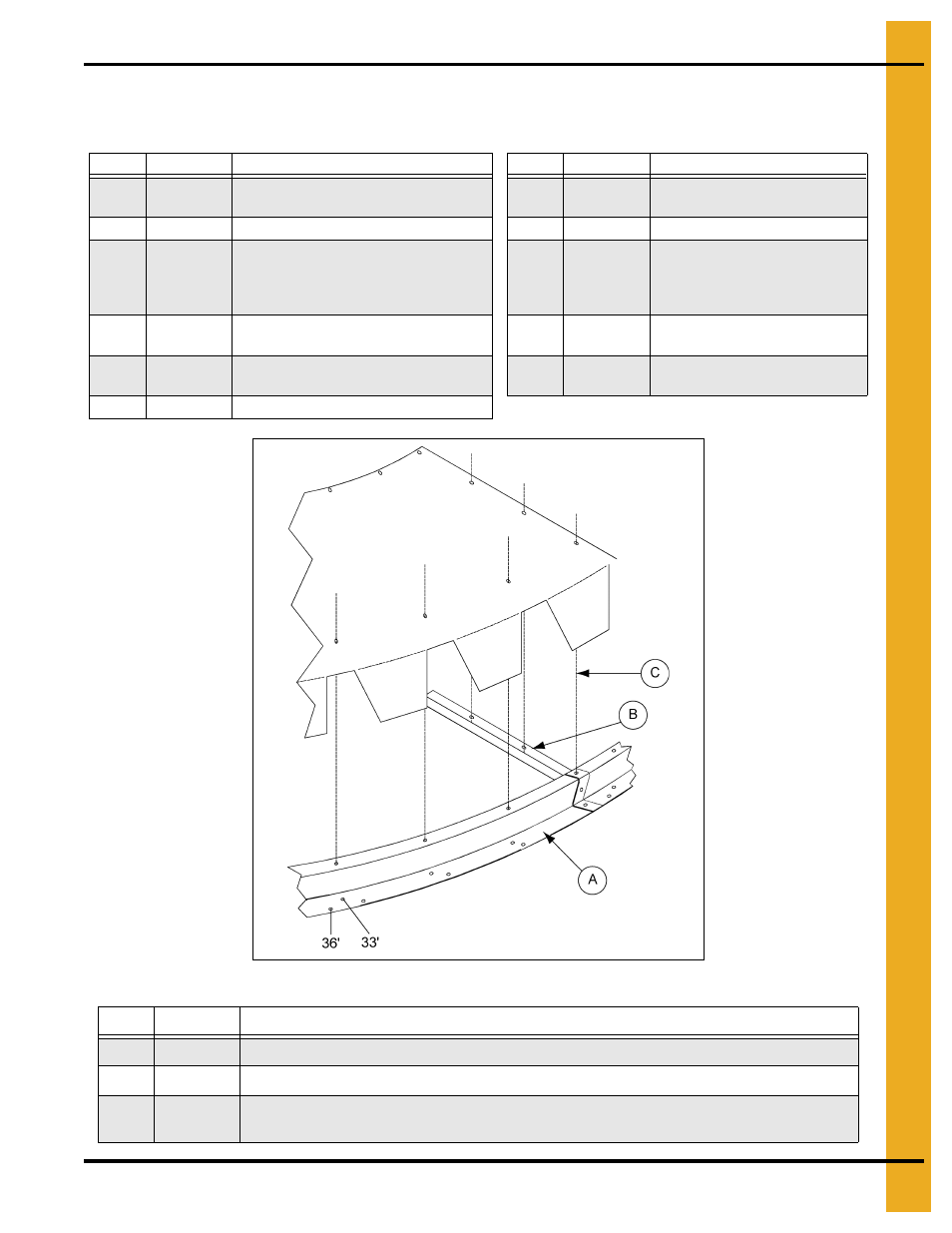

Figure 11E Center Collar Flashing Assembly
Ref # Part # Description Ref # Part # Description
A CRP-4687
Intermediate Center Collar -
33'-36' Roof - Green (3)
G
5/16" x 3/4" Flange Bolts
and 5/16" Flange Nuts
B 5/16" x 1" Bolt H To Concrete
C
IMPORTANT: Start roof channel at
second hole from the bottom of roof rib.
I
Roof Channel - Two (2) required
under roof ladder ribs. Position
channel as close to eave
as possible.
D CRP-5327
Red - Rev. Roll Intermediate Eave Clip
(Three (3) per roof sheet.)
J CRP-5262 33' and 36' Roof Channel Splice
E CRP-5325 Yellow - Rev. Roll Large Eave Clip K CRP-4793
33' and 36' Roof Ladder
Support Channel
F Roof Step
Ref # Part # Description
A CRP-4687 Intermediate Center Collar - 33'-36' Roof - Green (3)
B CRP-6188 Flashing Reinforcement Angle (One at each flashing splice (six (6) total).)
C
For proper center collar flashing assembly, you must start the flashing seam directly above the
center “Z” collar seam. Improper placement will result in holes and notches not aligning properly.
IMPORTANT
