11. Roof Assembly
PNEG-4030 40 Series 27' and 30' Diameter Bins 85
Roof Assembly for 27' through 30' Bins (Continued)
After all roof panels have been attached to the roof flashing, slip the roof panel seal clip between the
bottom of the flashing and the top of the roof ribs. Be sure to push the clip in as far as possible for the best
seal. Tighten all bolts and nuts after clips are pushed in.
(See Figure 11G and Figure 11H.)

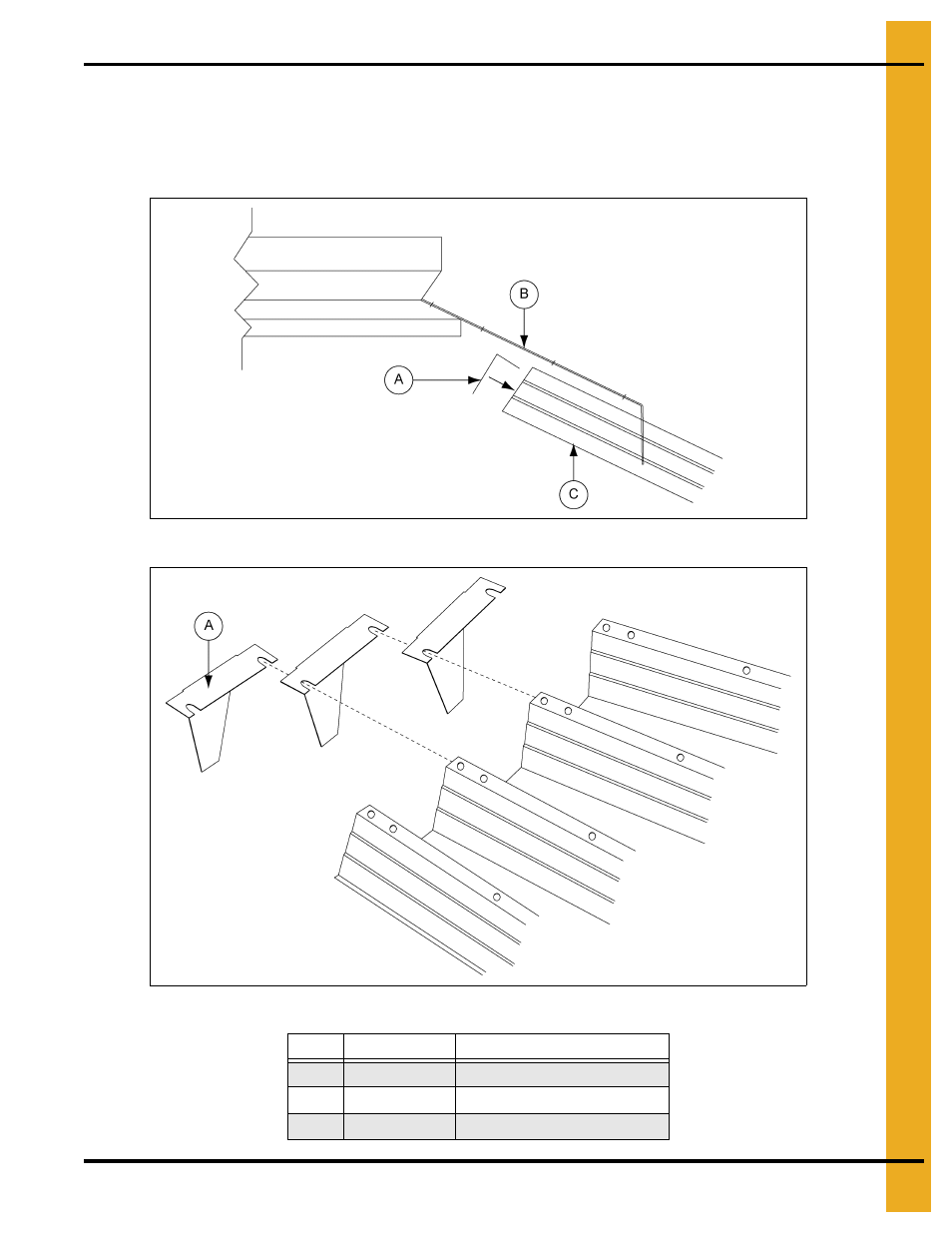

Figure 11G Cross Section
Figure 11H Isometric View
Ref # Part # Description
A CRP-5324 Roof Panel Seal Clip
B Roof Flashing
C Roof Rib
Roof flashing removed for clarity.
