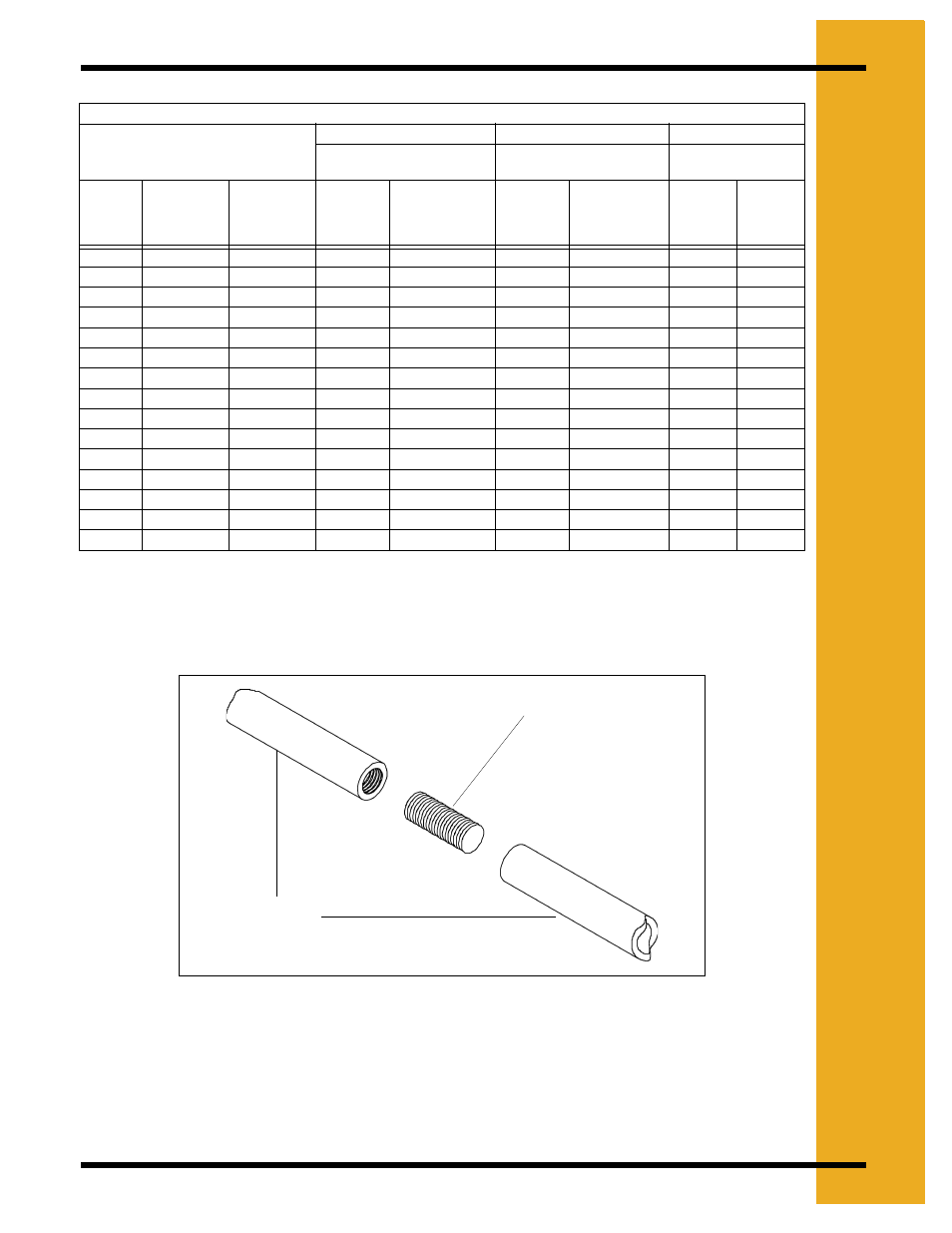

2. ASSEMBLY

The labels “A”, “B”, “C” and “D” correlate with the same labels

in Figure 2B on page 6.

Control Rod Assembly.

Figure 2C

1. Screw two (2) 1/2'' rod sections together using an Internal Threaded Coupler, as

shown

in Figure 2D

Length of Control Rods

Center Well

Inner Intermediate Wells

Outer Intermediate

Wells

Bin

Diameter

Spacing

Between

Intermediate

Bin Wells

Number of

Intermediate

Bin Wells

Assembly

Length

Length of

Sections

Assembly

Length

Length of

Sections

Assembly

Length

Length of

Sections

24'

31 - 1/2"

11' 11 - 1/2"

8' 2 - 1/2"

3' 4 - 1/2"

27'

38 - 1/2"

13' 5 - 1/2"

9' 1 - 1/2"

3' 8 - 1/2"

30'

45 - 1/2"

14' 11 - 1/2"

10' 1/2"

4' 1/2"

34'

55 - 1/2"

16' 11 - 1/2"

11' 2 - 1/2"

4' 4 - 1/2"

36'

35 - 1/2"

17' 11 - 1/2"

13' 10 - 1/2"

8' 8 - 1/2"

39'

40 - 1/2"

19' 5 - 1/2"

14' 11 - 1/2"

9' 4 - 1/2"

40'

42 - 1/2"

19' 11 - 1/2"

15' 3 - 1/2"

9' 6 - 1/2"

42'

29 - 1/2"

20' 11 - 1/2"

17' 4 - 1/2"

8' 1/2"

49'

38 - 1/2"

24' 5 - 1/2"

21' & 3' 5 - 1/2"

20' 1 - 1/2"

9' 4 - 1/2"

55'

46 - 1/2"

27' 5 - 1/2"

21' & 6' 5 - 1/2"

22' 5 - 1/2"

21' & 1' 5 - 1/2" 10' 9 - 1/2" 10' 9 - 1/2"

60'

53 - 1/2"

29' 11 - 1/2" 21' & 8' 11 - 1/2"

24' 4 - 1/2"

21' & 3' 4 - 1/2"

9' 1"

63'

57 - 1/2"

31' 5 - 1/2"

21' & 10' 5 - 1/2"

25' 6 - 1/2"

21' & 4' 6 - 1/2" 13' 9 - 1/2" 13' 9 - 1/2"

68'

65 - 1/2"

34' 5 - 1/2"

21' & 13' 5 - 1/2" 27' 10 - 1/2" 21' & 6' 10 - 1/2" 12' 6 - 1/2" 12' 6 - 1/2"

72'

69 - 1/2"

35' 11 - 1/2" 21' & 14' 11 - 1/2"

29' 1/2"

21' & 8' 1/2"

13' 1/2"

75'

73 - 1/2"

36' 5 - 1/2"

21' & 16' 5 - 1/2"

30' 2 - 1/2"

21' & 9' 2 - 1/2" 13' 6 - 1/2" 13' 6 - 1/2"

Internal Threaded
Coupler

Control Rod
Sections
