PNEG-1835 90' Dura-Lok Plank and Support Manual 31
6. Layouts
90'-16" Monorail Spacing Layout

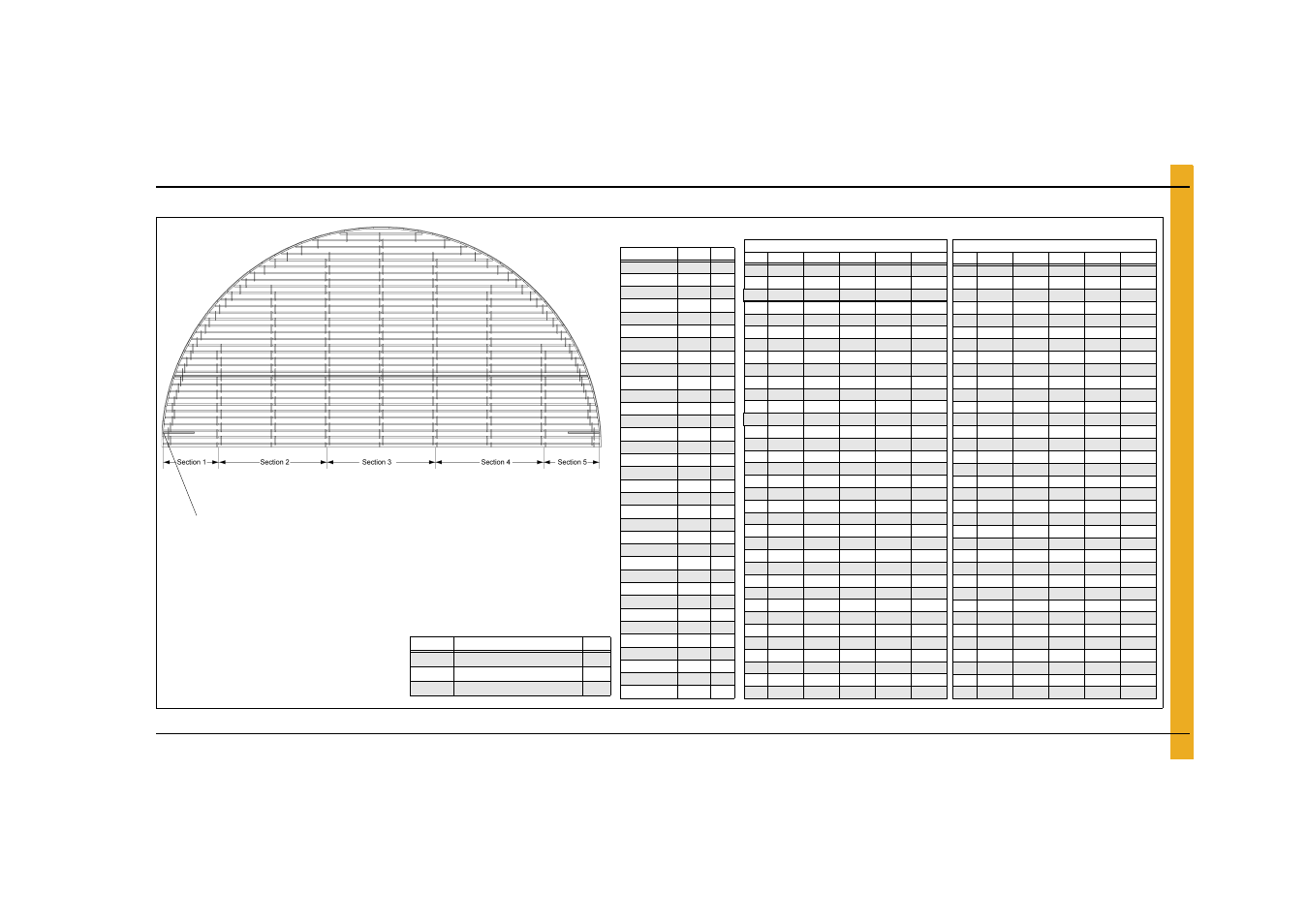

Figure 6F 90' Diameter Bin with 16" Monorail Spacing
Part # Description Qty
FL-404-16 16" Monorail Tie Bar 480
FL-7411 Monorail Strap 1-1/2" x 30" x 0.061" 80
S-280 #10-16 x 5/8" Zinc Self-Drilling Screw 1570
Bill of Materials
Part # Length Qty
A-22MONO 264 114
A-21.92MONO 263 4
A-21.75MONO 261 4
A-21.58MONO 259 4
A-21.5MONO 258 4
A-21.16MONO 254 4
A-20.83MONO 250 4
A-20.5MONO 246 4
A-20.25MONO 243 8
A-20.08MONO 241 4
A-19.9MONO 239 4
A-19.58MONO 235 4
A-19.08MONO 229 4
A-18.8MONO 226 4
A-18.5MONO 222 4
A-17.9MONO 215 4
A-17.42MONO 209 4
A-17.3MONO 208 4
A-17.2MONO 206 4
A-16.75MONO 201 2
A-16.5MONO 198 4
A-15.7MONO 188 8
A-14.83MONO 178 4
A-13.91MONO 167 4
A-13.9MONO 166 4
A-13.75MONO 165 4
A-12.83MONO 154 4
A-11.8MONO 141 4
A-11.7MONO 140 4
A-11.3MONO 136 8
A-11.25MONO 135 4
A-11.08MONO 133 4
A-6.25MONO 75 4
A-3MONO 36 111
90' Diameter 16" Spacing
Measurement in Inches
Rail # Section 1 Section 2 Section 3 Section 4 Section 5
1 136 264 264 264 136
2 136 264 264 264 136
* 2A 75 0 0 0 75
3 135 264 264 264 135
4 133 264 264 264 133
5 263 264 264 263 0
6 261 264 264 261 0
7 258 264 264 258 0
8 254 264 264 254 0
9 250 264 264 250 0
10 246 264 264 246 0
11 241 264 264 241 0
* 12 239 264 264 239 0
13 235 264 264 235 0
14 229 264 264 229 0
15 222 264 264 222 0
16 215 264 264 215 0
17 206 264 264 206 0
18 198 264 264 198 0
19 188 264 264 188 0
20 178 264 264 178 0
21 166 264 264 166 0
22 154 264 264 154 0
23 141 264 264 141 0
24 259 264 259 0 0
25 243 264 243 0 0
26 226 264 226 0 0
27 208 264 208 0 0
28 188 264 188 0 0
29 165 264 165 0 0
30 140 264 140 0 0
31 243 243 0 0 0
32 209 209 0 0 0
33 167 167 0 0 0
34 201 0 0 0 0
27.4 m Diameter 40.64 cm Spacing
Measurement in Centimeters
Rail # Section 1 Section 2 Section 3 Section 4 Section 5
1 345.44 670.56 670.56 670.56 345.44
2 345.44 670.56 670.56 670.56 345.44
* 2A 190.5 0 0 0 190.5
3 342.9 670.56 670.56 670.56 342.9
4 337.82 670.56 670.56 670.56 337.82
5 668.02 670.56 670.56 668.02 0
6 662.94 670.56 670.56 662.94 0
7 655.32 670.56 670.56 655.32 0
8 645.16 670.56 670.56 645.16 0
9 635 670.56 670.56 635 0
10 624.84 670.56 670.56 624.84 0
11 612.14 670.56 670.56 612.14 0
* 12 607.06 670.56 670.56 607.06 0
13 596.9 670.56 670.56 596.9 0
14 581.66 670.56 670.56 581.66 0
15 563.88 670.56 670.56 563.88 0
16 546.1 670.56 670.56 546.1 0
17 523.24 670.56 670.56 523.24 0
18 502.92 670.56 670.56 502.92 0
19 477.52 670.56 670.56 477.52 0
20 452.12 670.56 670.56 452.12 0
21 421.64 670.56 670.56 421.64 0
22 391.16 670.56 670.56 391.16 0
23 358.14 670.56 670.56 358.14 0
24 657.86 670.56 657.86 0 0
25 617.22 670.56 617.22 0 0
26 574.04 670.56 574.04 0 0
27 528.32 670.56 528.32 0 0
28 477.52 670.56 477.52 0 0
29 419.1 670.56 419.1 0 0
30 355.6 670.56 355.6 0 0
31 617.22 617.22 0 0 0
32 530.86 530.86 0 0 0
33 424.18 424.18 0 0 0
34 510.54 0 0 0 0
NOTE: Ninety three (93) total outer perimeter 3' monorail
pieces. See
Page 17 for leg support details.
* NOTE: This special monorail run is used
to support the floor plank at the split.
