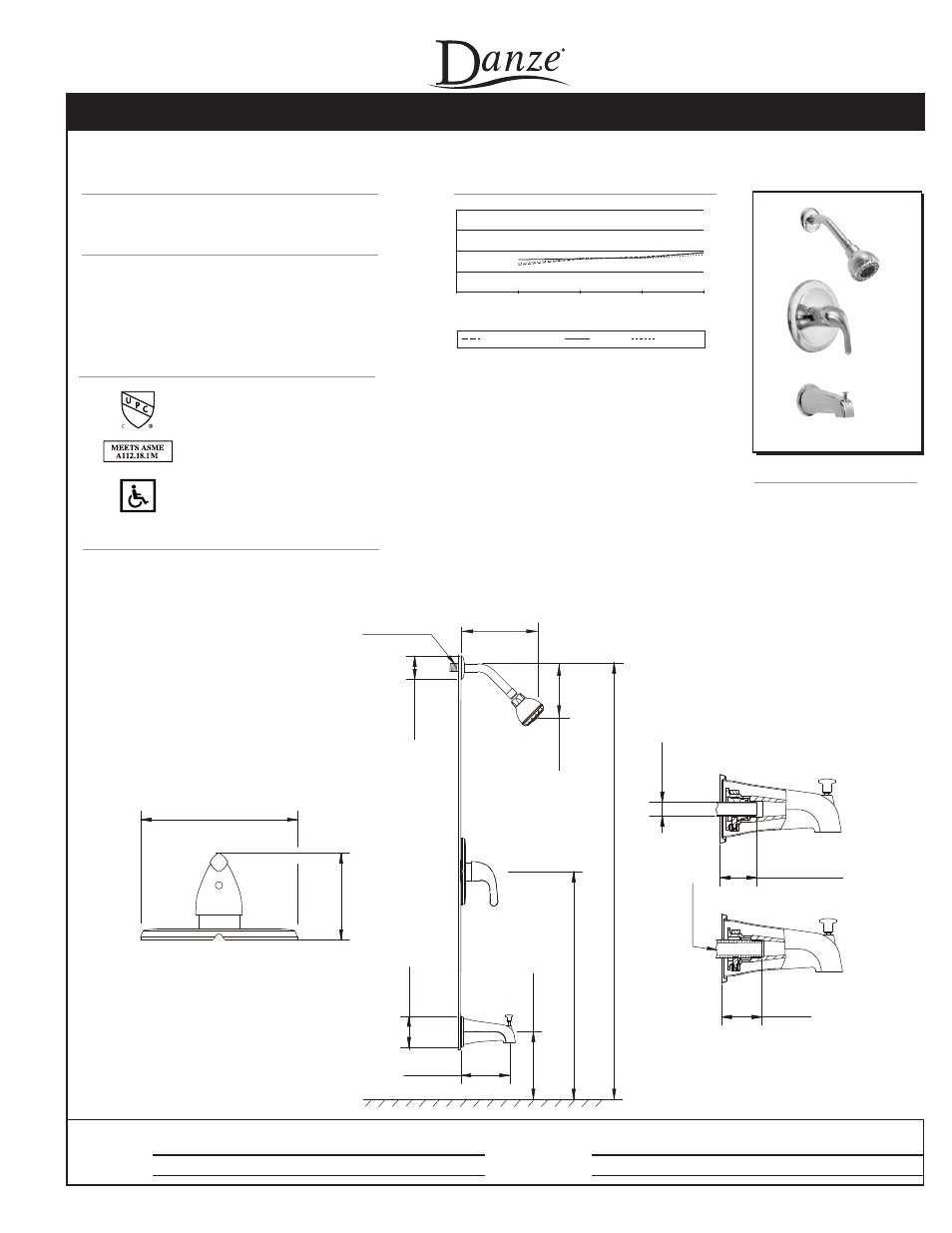

Specifications, Melrose
SD513011T/09-11.01
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com
Contractor:
Contact #:
Job Name:
Location:
Submittal Information:
SPECIFICATIONS
Warranty
Danze products are covered by a manufacturer’s
limited "lifetime" warranty for manufacturing defects.
Description
• 3'' multi-function showerhead
• 1/2" slip spout fits 1/2" copper or 1/2" IPS
stub-out
• Diverter on spout
• Showerhead D462014, A112.18.1M, 1.5 gpm
(5.7 LPM) maximum flow rate @ 20 - 80 psi
• Chrome
Finishes Available
Model
D513011T
(Tub & Shower trim)
D503511T (Shower only trim)
D513011T
D503511T
D513011T
D503511T
D513011T shown
Standards
• ADA Accessibility Guideline
s
for
Buildings and Facilities -
4.27.4 Controls and Mec
han
isms
• ASME A112.18.1M
• UPC/cUPC
• Energy Policy Act of 1992
MELROSE
™
TRIM ONLY SINGLE HANDLE PRESSURE BALANCE TUB & SHOWER FAUCET
MELROSE
™
TRIM ONLY SINGLE HANDLE PRESSURE BALANCE TUB & SHOWER FAUCET
Flow Rate
PSI
GPM
60
80
2.5
2.0
1.5
40
20
0.5
1.0
Massage
Spary+Massage
Spray
Ш
6 3/4"
(
Ш
172mm)
3 3/4"
(95mm)
4 15/16"
(126mm)
33"
65"~78"
(838mm)
Ш
5/8"
(
Ш
16mm)
1 7/8"
(48mm)
1 1/2"~2"
(38mm~51mm)
20"
(508mm)
1/2"~14NPT
(1651mm~1981mm)
3 1/8"
(80mm)
Ш
2 3/8"
(
Ш
60mm)
1/2"-14NPT
7 3/16"
(182mm)
3 15/16"
(100mm)
