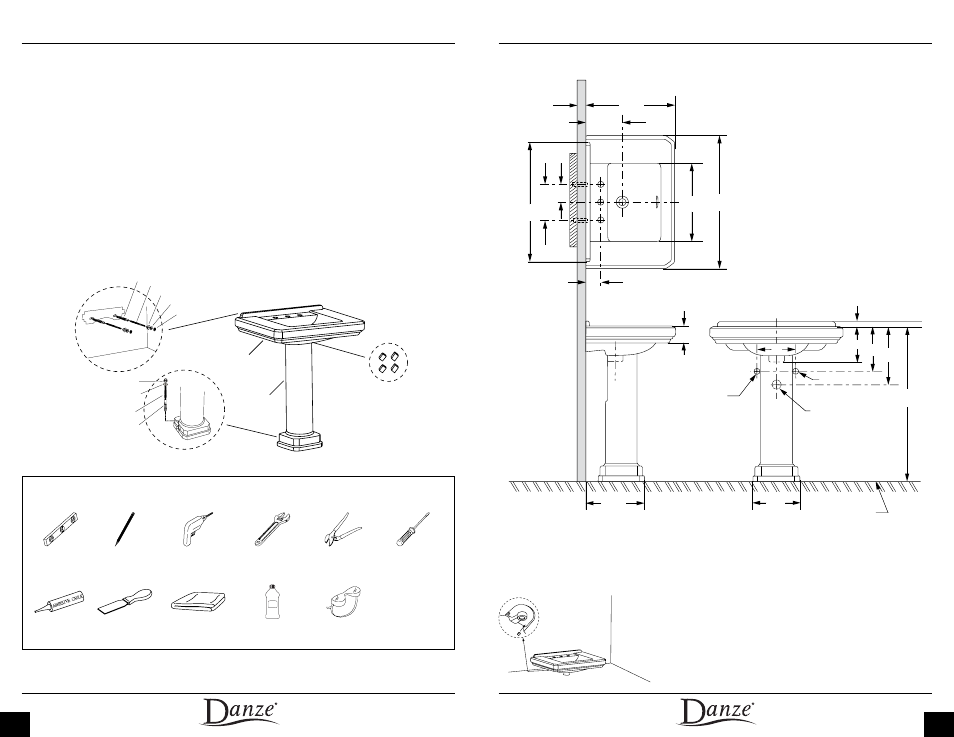

InstaLLatIon InstructIons
For installation with the Cirtangular ® pedestal column
1. Apply two cork pads (G) onto the bottom of
the pedestal basin (A) in the pedestal column re-
cess as indicated.
Product dImensIons
20 1/2 ”
17 7/8 ”
26 3/4 ”
3 1/8 ”
3 7/8 ”
1 1/4 ”
12 3/4 ” 9 3/4 ”
3/8 ” COLD
12 3/4 ”
8”
8” 10”
35”
8”
30”
8” 4”
1 1/4 ” WASTE
3/8 ” HOT
FINISHED
WALL
FINISHED
FLOOR
G
D
E
C
L
I
K
J
M
H
N
F
A
B
( Y ) Warranty Parts Guide
Check to make sure you have the following parts included in the pedestal column
package:
( B ) Pedestal Column for 30” Pedestal Basin Model DC026028
( I ) Pedestal Column Anchor Hardware
( J ) Pedestal Column Anchor Bolt (1 each)
( K ) Pedestal Column Anchor Washer (1 each)
( L ) Pedestal Column Anchor Cap Nut (1 each)
( M ) Pedestal Column Expansion Anchor (1 each)
( V ) Welcome to Danze Kit
(W) Installation Instructions
( X ) Homeowner Care Manual
( Y ) Warranty Parts Guide
tooLs requIred
Carpenter’s Level Pencil Adjustable
Wrench
Regular Screwdriver
Cloth Rubbing Alcohol Adhesive Caulk Safety Glasses
Rubbing Alcohol
Drill Channel
Lock Pliers
Putty Knife
