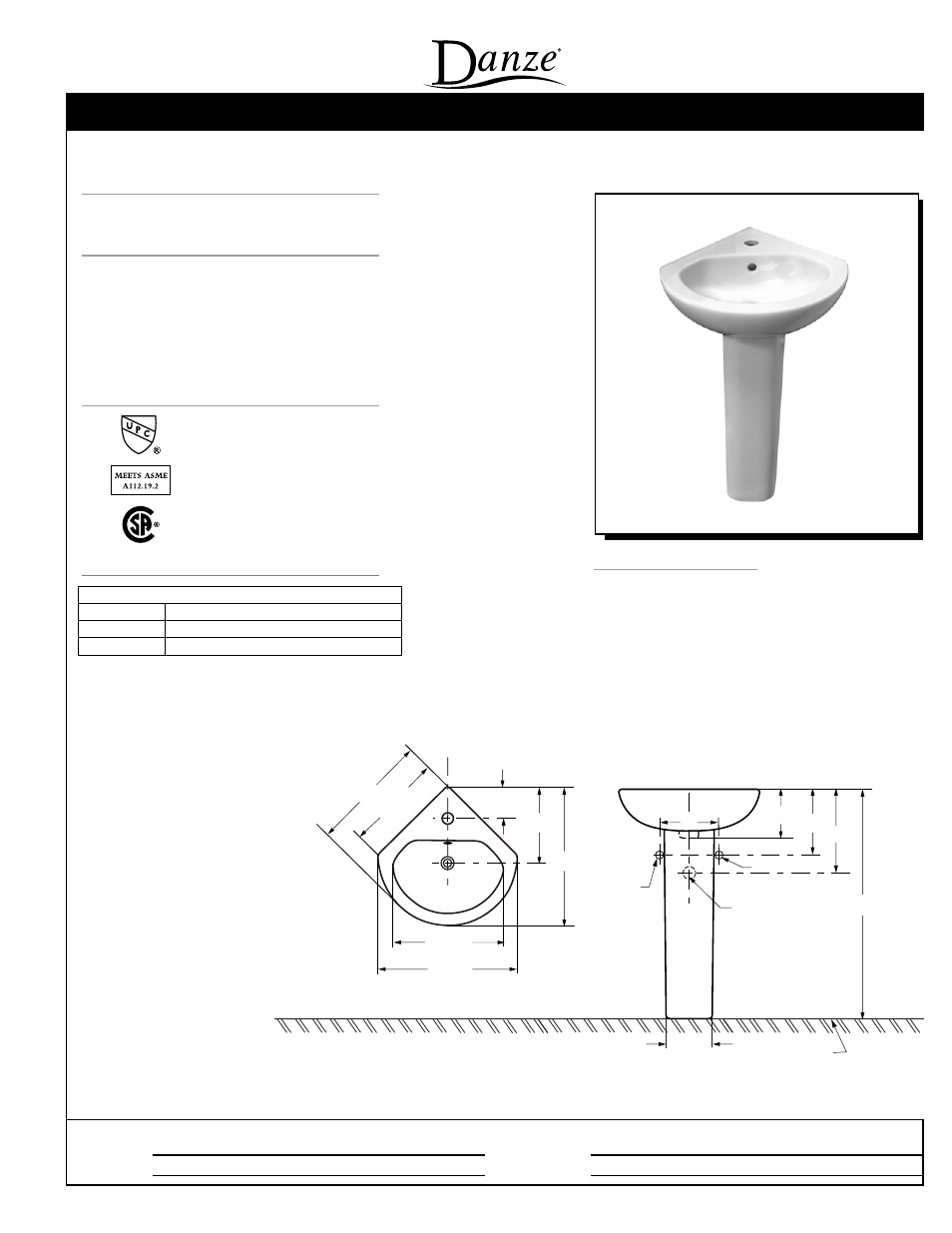

Danze DC066051-DC068110 - Manual

SDC066051-DC068110/03-10.01 Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com
Submittal Information:
Contractor: Contact #:
Job Name: Location:
DC066051-DC068110 DC066051-DC068110
SPECIFICATIONS
Description
COBALT™ CORNER PEDESTAL LAVATORY COBALT™ CORNER PEDESTAL LAVATORY
Colors Available
Model
DC066051 (Corner Basin)
DC068110 (Corner Pedestal Column)
IMPORTANT: Dimensions of fixtures are nominal and may vary within the range of tolerance
established by ASME Standard A112.19.2. These measurements are subject to change or
cancellation. No responsibility is assumed for use of superseded or voided pages.
Standards
Technical lnformation
• Corner basin - fire clay
• Corner column - vitreous china
• Corner basin: 15" x 15"
• Single hole faucet mount
• Overflow
• Install DC068110 with corner basin model
DC066051 only
• Full height column
• CSA B45.1
• UPC
• ASME A112.19.2
• White (WH)
Fixture:
Drain hole 1 3/4" (4.4 cm)
Basin area 13 1/2" x 9" (34.2 x 22.9 cm)
Basin depth 4" (10.2 cm)
FINISHED
FLOOR
15"
12
3/4
"
10"
30"
12 3/4 "
6"
8"
3/8 " HOT
3/8 " COLD
1 1/4 " WASTE
4 1/4 "
9 5/8 "
17 1/2 "
17 1/2 "
13 1/2 "
6 1/4 "
