3
InstaLLatIon InstructIons
1. Turn off and disconnect water supply. Unbolt
and remove old toilet. Remove old wax ring and
clean floor flange area with putty knife.

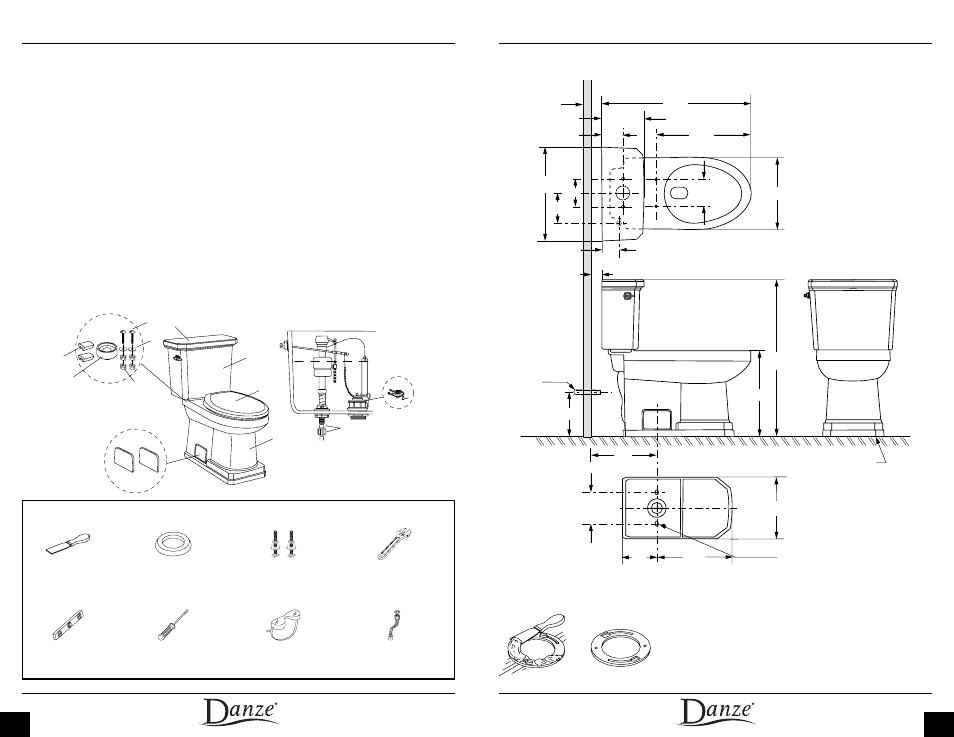

Product dImensIons
Putty Knife Wax Ring (1 required) Floor Mounting Bolts,
Washers and Nuts
(2 each required)
Adjustable wrench
Regular Screwdriver Safety Glasses Carpenter’s Level
tooLs requIred
( G ) Channel Pads (2 each)
( H ) Coupling Nut and Cone Washer (1 each)
( V ) Welcome to Danze kit
(W) Installation Instructions
( X ) Homeowner Care Manual
( Y ) Warranty Parts Guide
Check to make sure you have the following parts included in the toilet bowl
package:
( A ) Toilet Bowl For Toilet Tank Model DC022221 only
( N ) Toilet Seat
( O ) Ceramic Floor Bolt Cover Plates (2 each)
( V ) Welcome to Danze kit
( P ) Hook and Loop Tapes (6 strips)
(W) Installation Instructions
( X ) Homeowner Care Manual
( Y ) Warranty Parts Guide
Flexible Water Supply Line*
19”
5 3/4”
5 7/8”
2 3/8”
5/8”
12”
8”
6”
7 1/8” 15 1/4”
12 1/4”
3/8” S.P.S. SUPPLY
5 1/2”
SLOT (1/2”x 1” )
8 3/4”
4 3/8”
29 1/4”
14 3/4”
18 1/2”
31 3/4”
16 1/2”
FINISHED
WALL
FINISHED
FLOOR
G
H
F
M
Q
O
N
C
D
E
A
B
* optional, only required if not already in place or the existing supply line needs to be replaced
