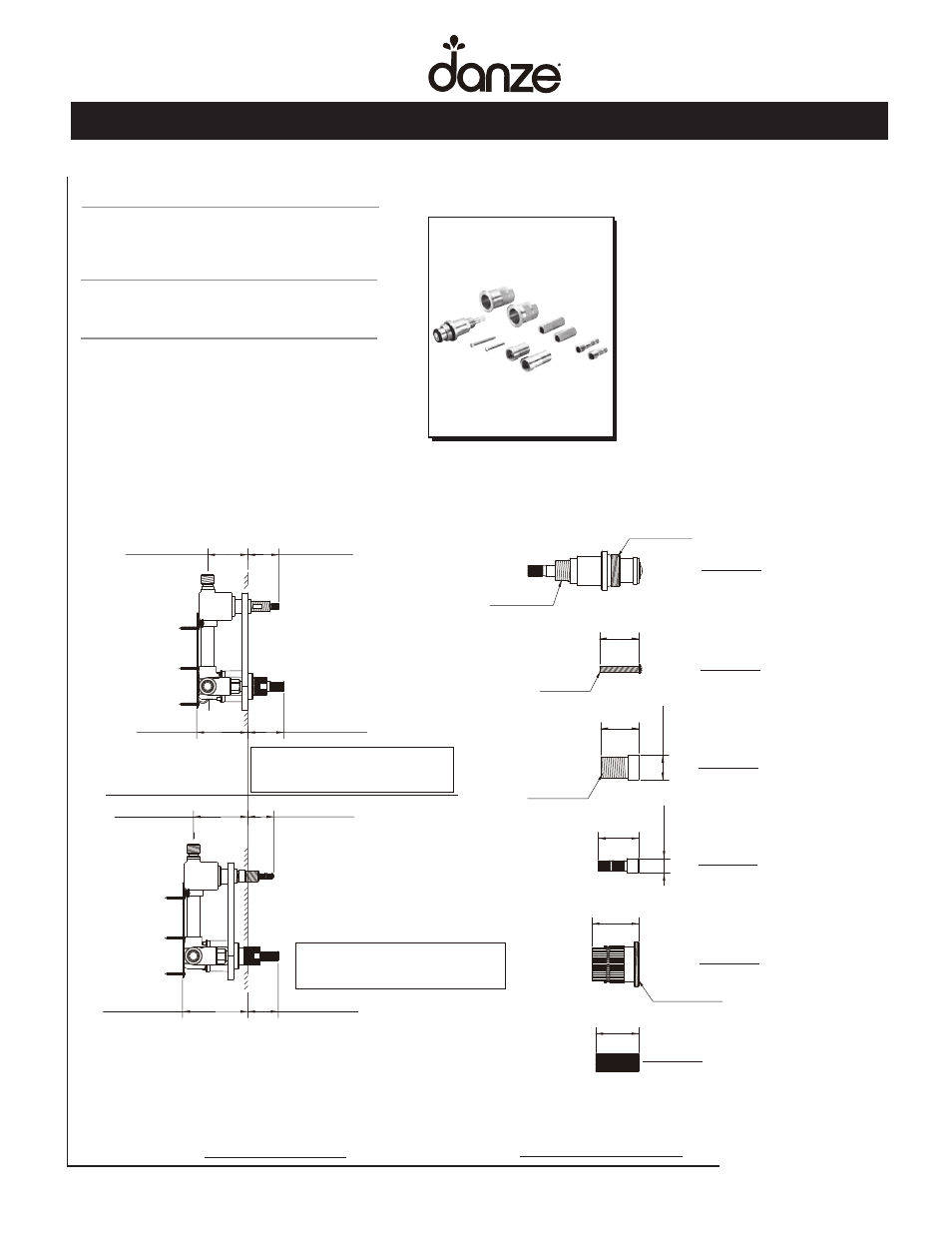

Danze D151001B - Spec Sheets - Manual

Deep Wall Extension Kit For 1/ 2 " Thermo Valve Deep Wall Extension Kit For 1/ 2" Thermo Valve
D 151001B
SPECIFICATIONS
SD151001B/06-13.01
Specific Features: Submitted Model No.:
Available Colors & Finish
• Rough Brass
Description
D151001B D151001B
• Provides 1 ¼" of extension beyond standard
rough-in
Standards
• Listed IAPMO/UPC
Warranty
Danze products are covered by a
manufacturer's limited "lifetime" warranty
for manufacturing defects.
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA WWW.DANZE.COM
Ш
13/16"
(Ш20mm)
Ш
1/2"
(Ш12mm)
1 1/4"
(31mm)
1 1/4"
(32mm)
1 3/8"
(35mm)
1 5/16"
(33mm)
1 1/2"
(38mm)
2 7/16"~2 15/16"
(62.5~75.5mm)
3 1/8"~3 5/8"
(80~93mm)
3 11/16"~4 3/16"
(93~106mm)
1 15/16"~2 7/16"
(50~63mm)
1 11/16"~2 3/16"
(43~56mm)
2 15/16"~3 7/16"
(75.5~88.5mm)
1 15/16"~2 7/16"
(49~62mm)
1 5/8"~2 1/8"
(40.5~53.5mm)
11/16"-20UN
W3/16"-24
1 7/16"-20UNF
3/4"-14NPSM
11/16"-20UN
NORMALRough-in Range（3 1/8"-3
5/8"，80-93mm) Extension kit for
deep wall installation unused.
NORMALRough-in Range（3 11/16"-4
3/16"，93-106mm) Extension kit for
deep wall installation used.
Volume control cartridge
Long screw
Long shank
long stem extension
of volume control
cartridge
Long sleeve
long stem extension of thermostatic
cartridge
NOTES:
A) If the distance from the back of
mounting plate to the finished wall
surface is between 3 11/16~4
3/16",you need to use the
extension kit A
B) If the distance from the back of
mounting plate to the finished wall
surface is between 4 3/16~4
9/16",you need to use the
extension kit B
Kit A (Extended rough-in range 3 11/16~4 3/16)
