Banks Power Ford Trucks: (Diesel ’08 - 10 6.4L Power Stroke) Speed Control- SpeedBrake '08-09 For use with PowerPDA & Banks iQ User Manual
Page 9
97244 v.2.0
9
5.
Disconnect the 8-pin connector
from the OBD II interface cable from
the 8-pin connector on the six-gun
in-cab cable.
6.
Remove the OBD II interface cable
from the vehicle.
Installing Banks SpeedBrake Wire
Harness
7.
From inside the engine
compartment, locate the factory
brake pressure sensor connector on
the brake master cylinder. The brake
pressure sensor will be the connector
farthest away from the firewall. See
Figure 3. Disconnect the factory
brake pressure sensor connector.
8.
Locate the Brake Pressure Sensor
harness in your kit. connect the
female connector on the Brake
Pressure Sensor harness to the factory
male connector. connect the male
connector on the Brake Pressure
Sensor harness to the factory female
connector.
9.
Route the 2-pin connector on
the Brake Pressure Sensor harness
following the six-gun in-cab cable
through the fire wall. Secure the wiring
harness with the supplied cable ties
away from any heat source or moving
parts.
10.
From under the dash, pull the
2-pin connector on the Brake Pressure
Sensor harness through the fire wall.
11.
Locate the SpeedBrake Wire
Harness and connect the 2-pin male
connector on the Brake Pressure
Sensor harness to the 2-pin connector
on the SpeedBrake wire harness.
12.
connect the Banks SpeedBrake
Wire Harness OBD II connector to the
vehicle’s OBD II connector. Use a cable
tie, as shown in Figure 4 to secure
the Banks SpeedBrake Wire Harness to
the vehicle’s OBD II connector.

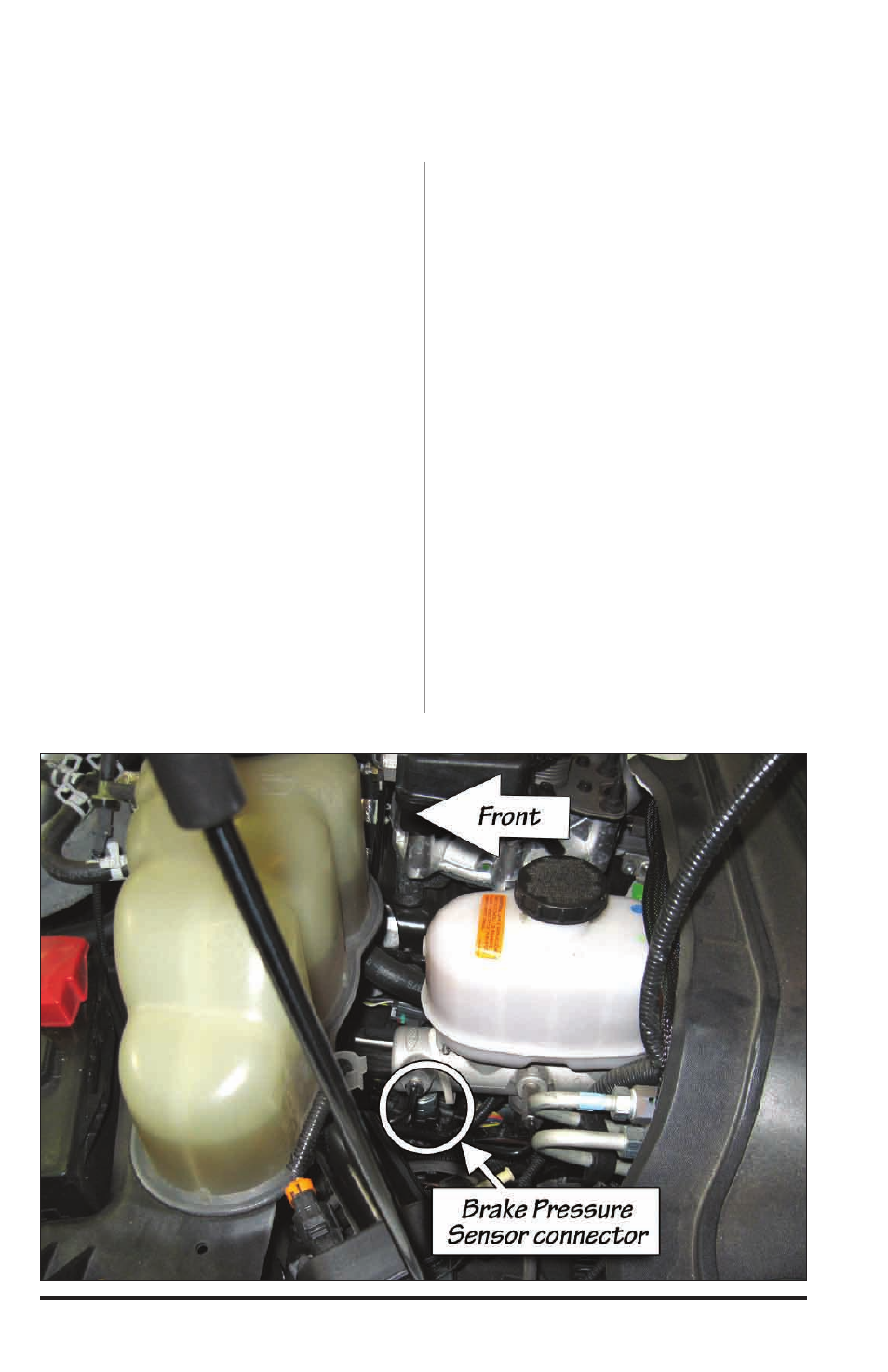

Figure 3 Brake Pressure Sensor
